AMC Explorer 33 - Lateral Deck Leveling

cutter Deck

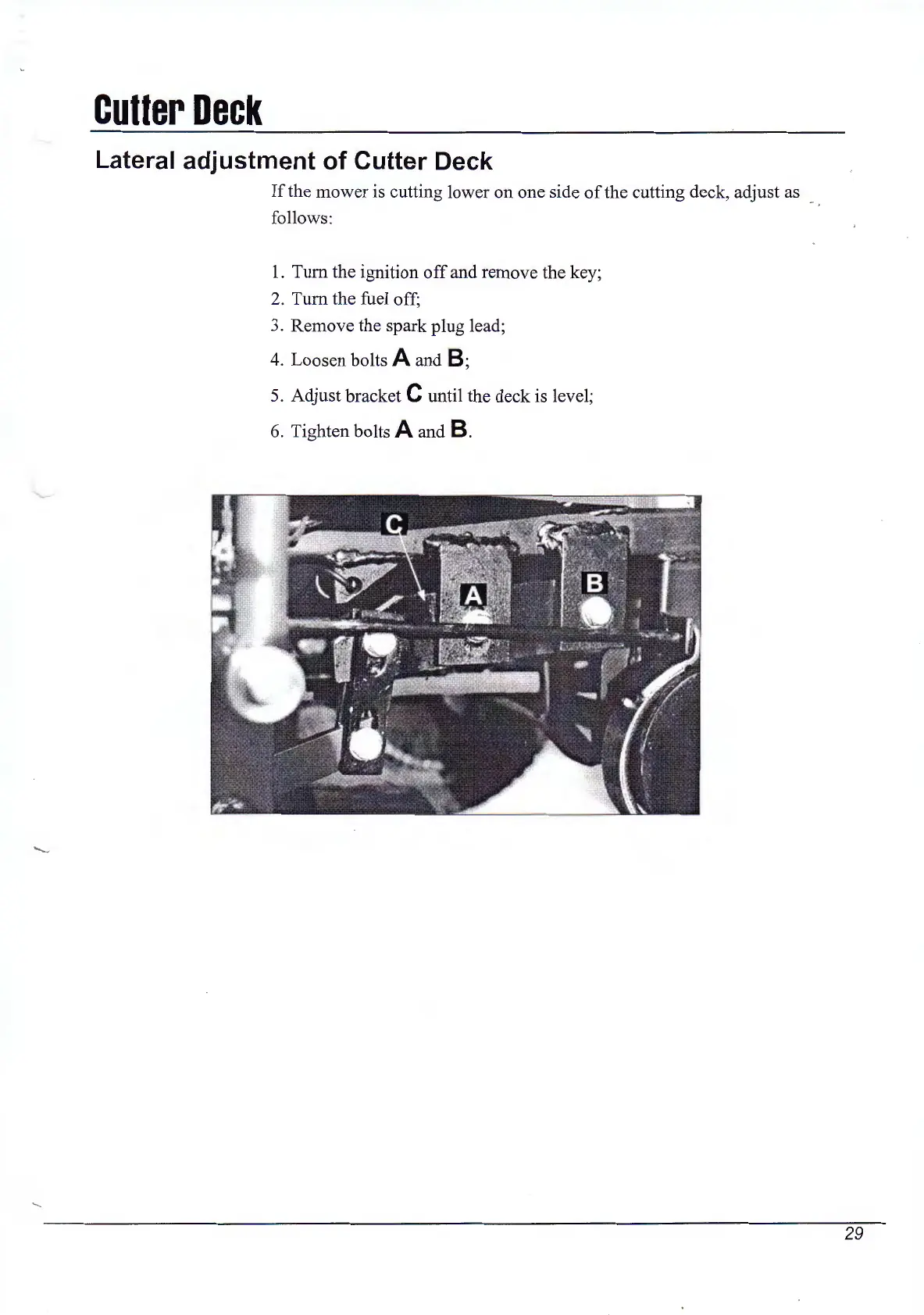

Lateral adjustment of Cutter Deck
If the mower is cutting lower on one side of the cutting deck, adjust as
follows:
1. Tum the ignition
off and remove the key;
2. Tum the fuel off;
3. Remove the spark plug lead;
4. Loosen bolts A and B;
5. Adjust bracket C until the deck is level;
6. Tighten bolts
A and B.
-
29
