AMC Explorer 33 - Cutter Deck Lever Adjustment

Cutter Deck

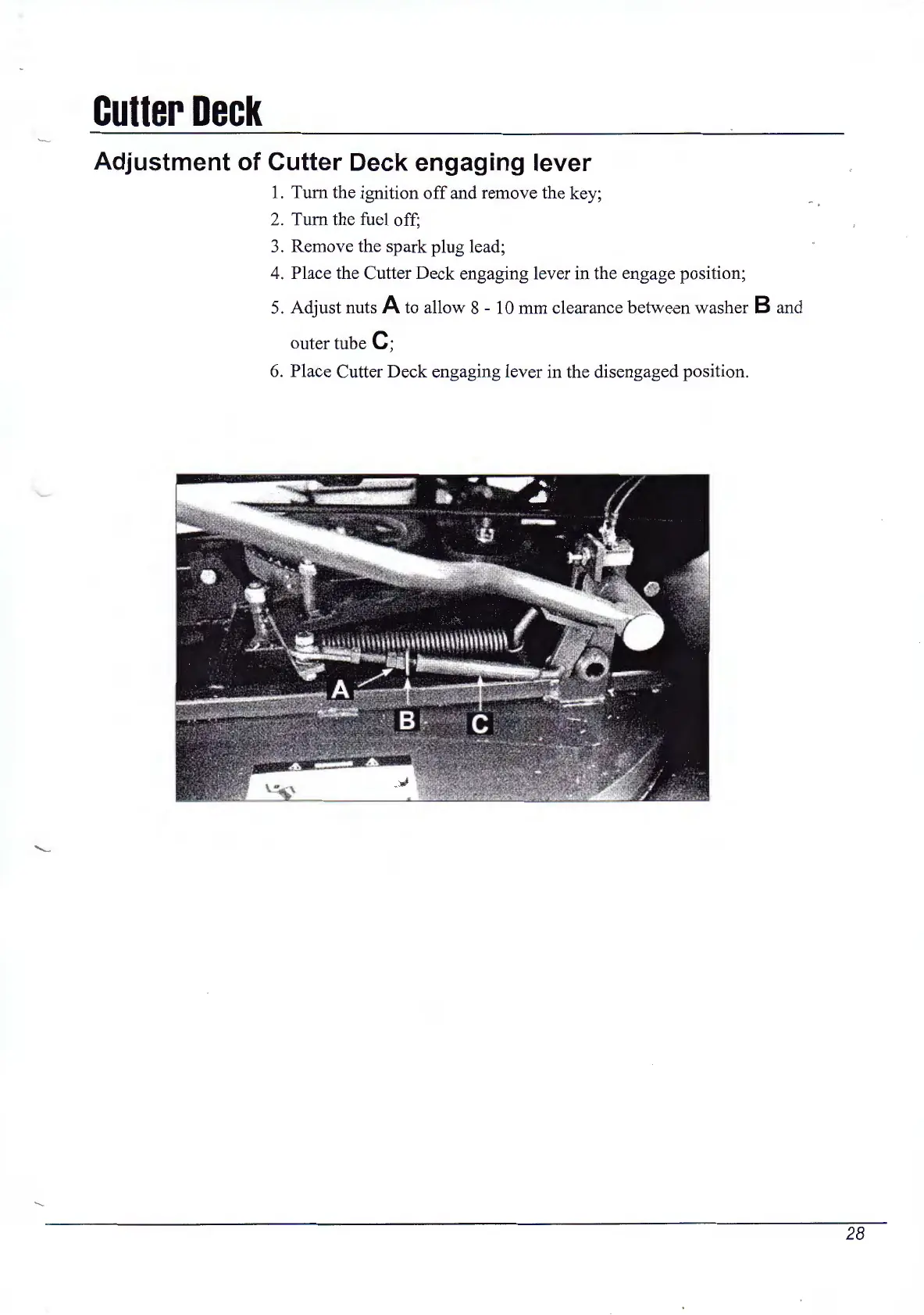

Adjustment of Cutter Deck engaging lever
1. Turn the ignition off and remove the key;
2. Turn the fuel off;
3. Remove the spark plug lead;
4. Place the Cutter Deck engaging lever in the engage position;
5. Adjust nuts
A to allow 8 - 10 mm clearance between washer Band
outer tube C;
6. Place Cutter Deck engaging lever in the disengaged position.
-
28
