65R Compressor Manual | Page 11
Chapter 3 - Assembly Drawings

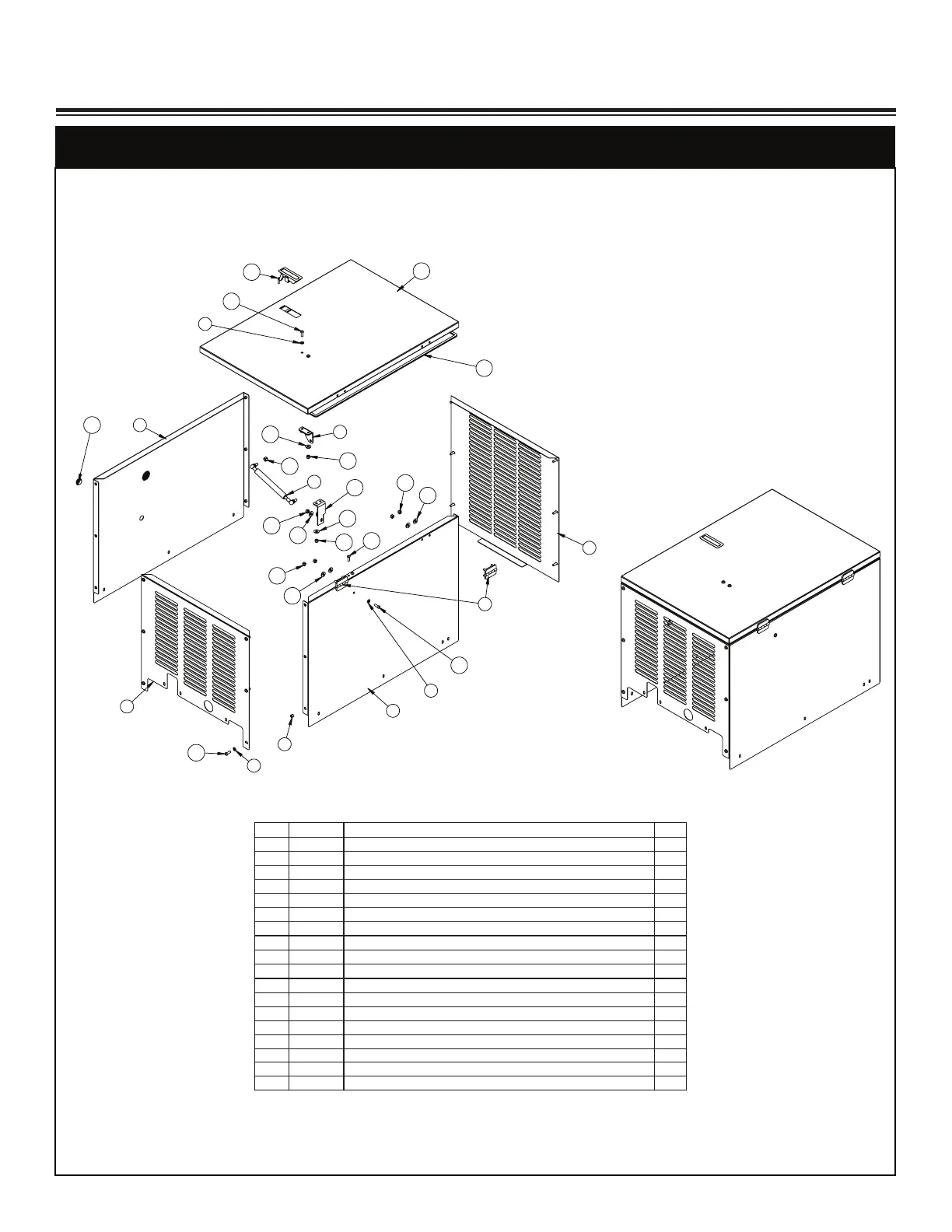

65R Case Assembly - PN 101835
PN 101835
1 101836 1PANEL FRONT CPRSR 45R/65R SHROUD PC WHITE V2
4 101838 1PANEL SIDE LH 45R/65R SHROUD PC WHITE V2
3 101837 1PANEL SIDE RH 45R/65R SHROUD PC WHITE V2
2 75586 1PANEL BACK CPRSR 45R/65R SHROUD PC WHITE
5 69103 1GAS SPRING 7.50-12.00 30# FORCE
6 73654 1BRKT LID GASPROP CPRSR SHROUD V2 PC BLACK
7 70379 2HINGE ZINC BLK FLUSH SURFACE MNT DC-50-P8
8 19592 15WASHER 0.25 FLAT NYLON
10 73653 1BRKT LOWER GASPROP CPRSR SHROUD V2 PC BLACK
9 19589 12NUT SERT 0.25-20X0.38 OD
11 69101 1LATCH SWING LEVER FLUSH TRIGGER 0.91-1.81
12 102402 1PANEL LID CPRSR 45R/65R SHROUD PC WHITE V2
13 C6021 17CAP SCR 0.25-20X0.75 BTNHD SS
14 0333 13NUT 0.25-20 HHGR5 NYLOC
15 0342 2NUT 0.31-18 HHGR5 NYLOC
18 C4760 1PLUG PLASTIC 0.75 HOLE
17 75877 1WEATHERSTRIP RIBBED 0.38X0.13X98.00
16 D0917 13WASHER 0.25 FLAT SS
ITEM PART No. QTY.DESCRIPTION
1
13
8
9
3
7
2
13
8
16
14
13
16
14
10
16
14
16
14
5
15
4
12
11
8
13
14
16
6
18
17
