American Eagle 65R - Chapter 1 - Specifications

American Eagle
®
65R Compressor Manual | Page 1

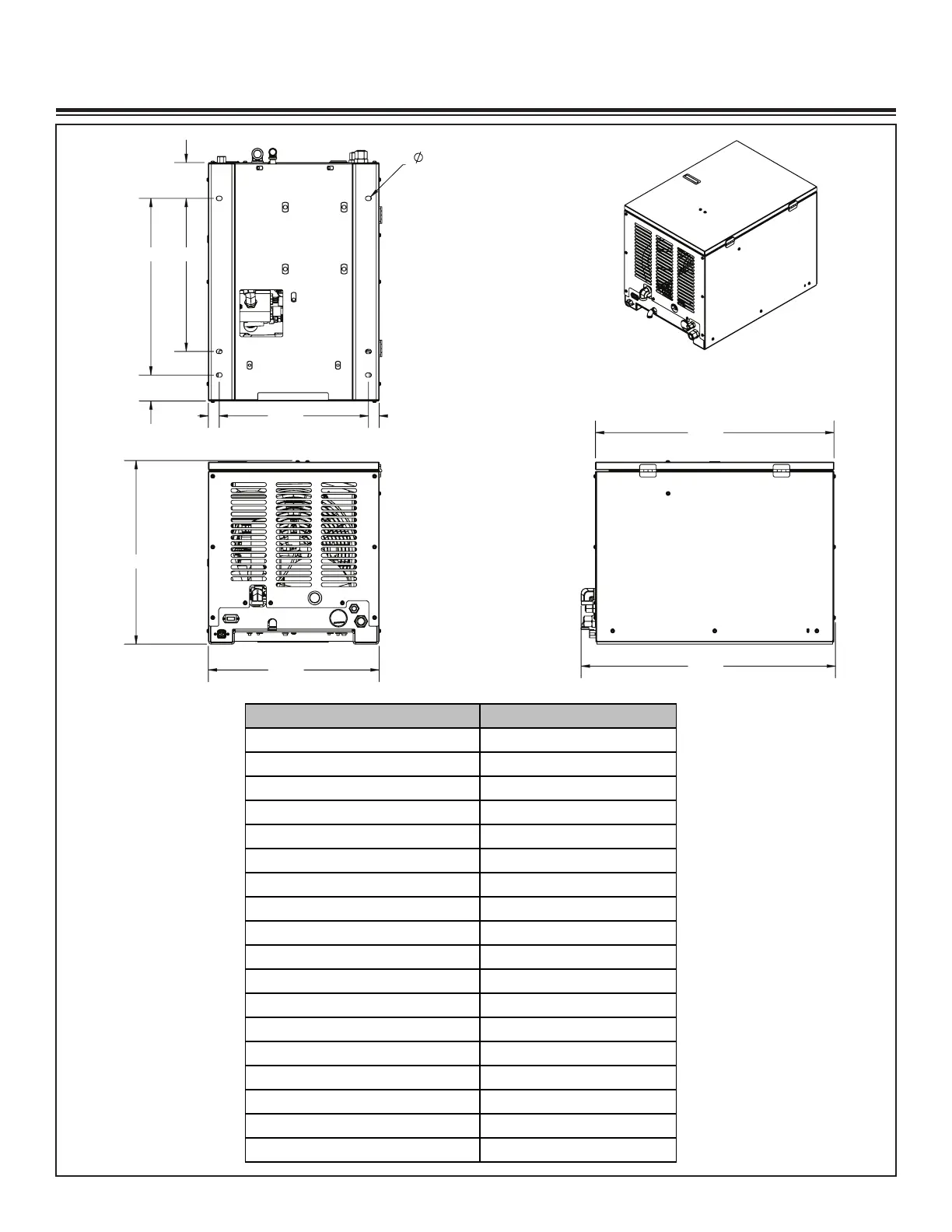

32.38
30.37
23.39
21.75
19.50 22.50
4.56
3.31
.56 X 0.75 SLOT
TYP 6
19.00 1.37 1.37
Chapter 1 - Specifications
SPECIFICATIONS 65R
Hydraulic System 18 GPM @ 2750 PSI
Compressor RPM 7000-7500 RPM
System Pressure 2800 PSI
Hydraulic Relief 3500 PSI
Max Air Pressure 150 PSI
Air Relief 200 PSI
Delivery (At Max Speed) 55-65 CFM @ 100 PSI
Weight 345 lbs.
Dimensions (Length) 32.38”
Dimensions (Width) 21.75”
Dimensions (Height) 23.39”
Electrical 12 VDC
Crankcase Oil Capacity 6 Quarts
Plumbing/Fittings Steel W/JIC Fittings
Cooler Fan 2024 CFM, 12 Volt
Drive Belt Drive
Manifold 6061 Aluminum
Control Valve 12 VDC Solenoid
