65R Compressor Manual
Electrical Connections:
From the air pressure switch there are two (2) wires, red and black, running to the outside
of the compressor housing. Connect the black wire to the vehicle frame or other suitable
ground. Mount a single throw toggle switch in a convenient location and connect the red
wire from the compressor to this switch. Connect the other switch terminal to a fuse holder
and then to a 12- volt power supply. A third wire is required from the air compressor switch
when connecting the speed control into the system.

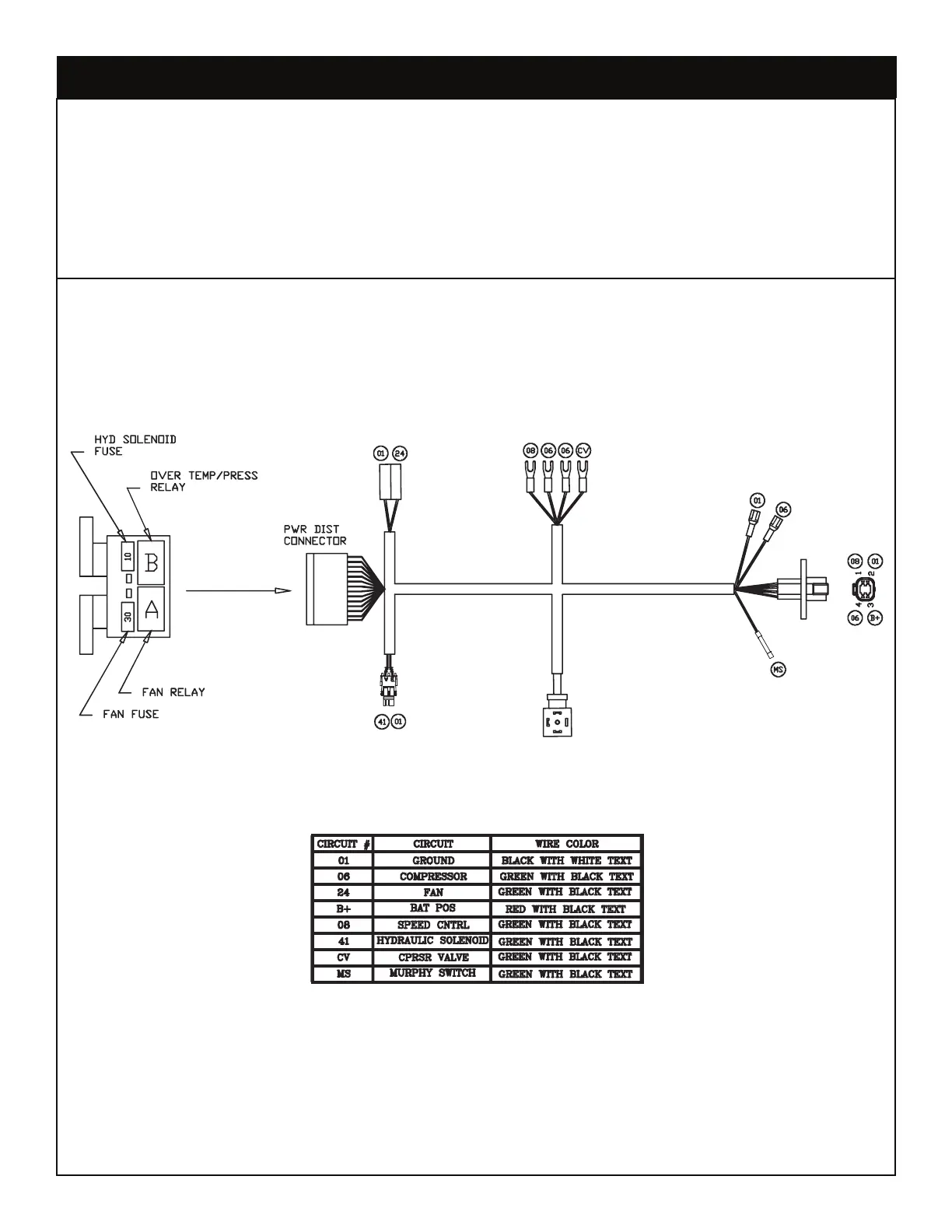

65R Wiring Schematic
PN 76364
