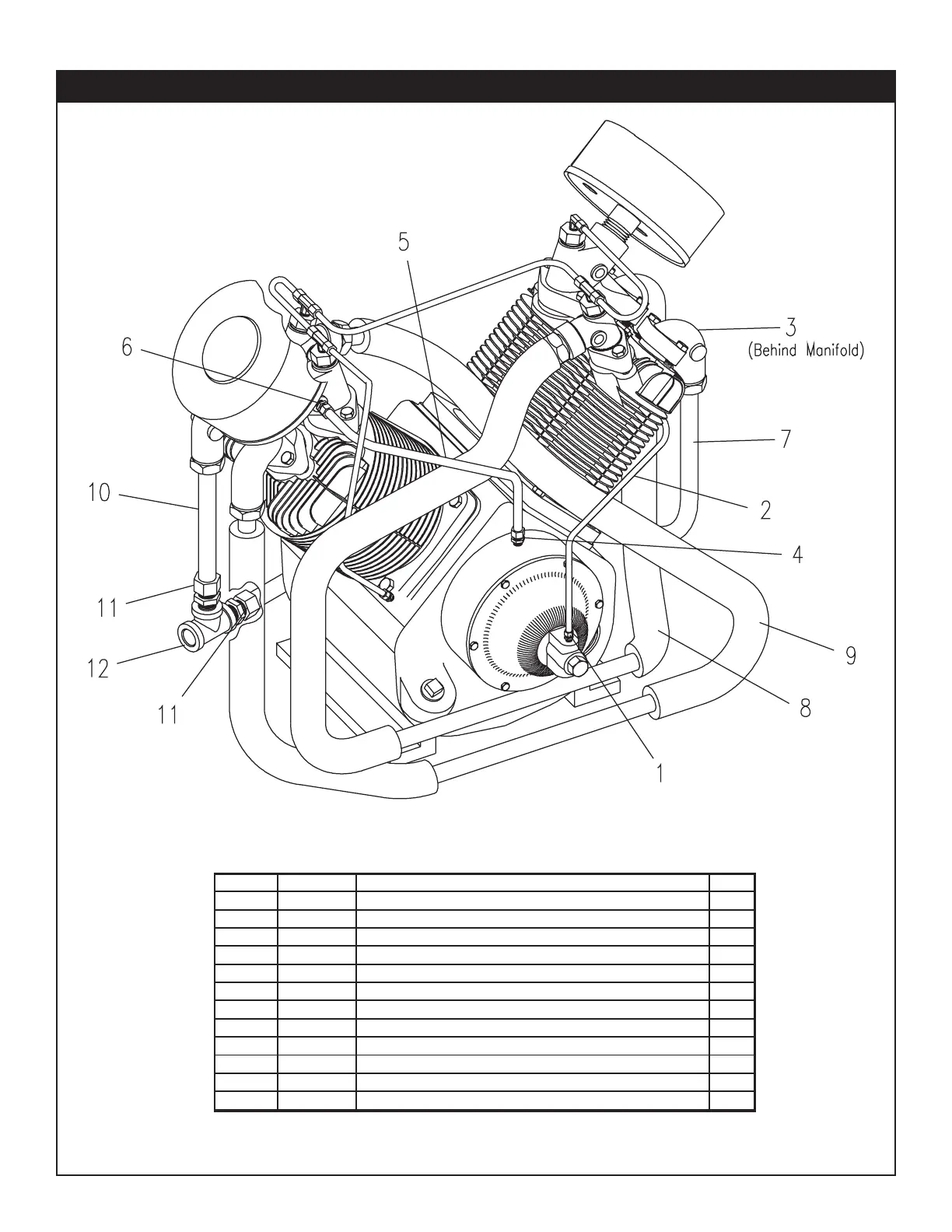

American Eagle SHD-66 - Tubing Assembly Diagram

Assembly Drawings 25
ITEM PART No. DESCRIPTION qty
1 7473 TUBE FITTING 1
2 7474 RELEASE VALVE TUBE W/FITTINGS (ITEMS 1&3) 1
3 7475 TUBE FITTING 1
4 7476 TUBE FITTING 1
5 7477 BREATHER TUBE W/FITTINGS (ITEMS 4&6) 1
6 7476 TUBE FITTING 1
7 7478 TUBE, DISCHARGE 1
8 D1873 INTERCOOLER TUBE W/FTGS RH 1
9 D1872 INTERCOOLER TUBE W/FTGS LH 1
10 5592 TUBE, DISCHARGE 1
11 5593 TUBE FITTING 2
12 7479 PIPE TEE 1
Tubing Assembly
