Installation & Start-Up | 3-7

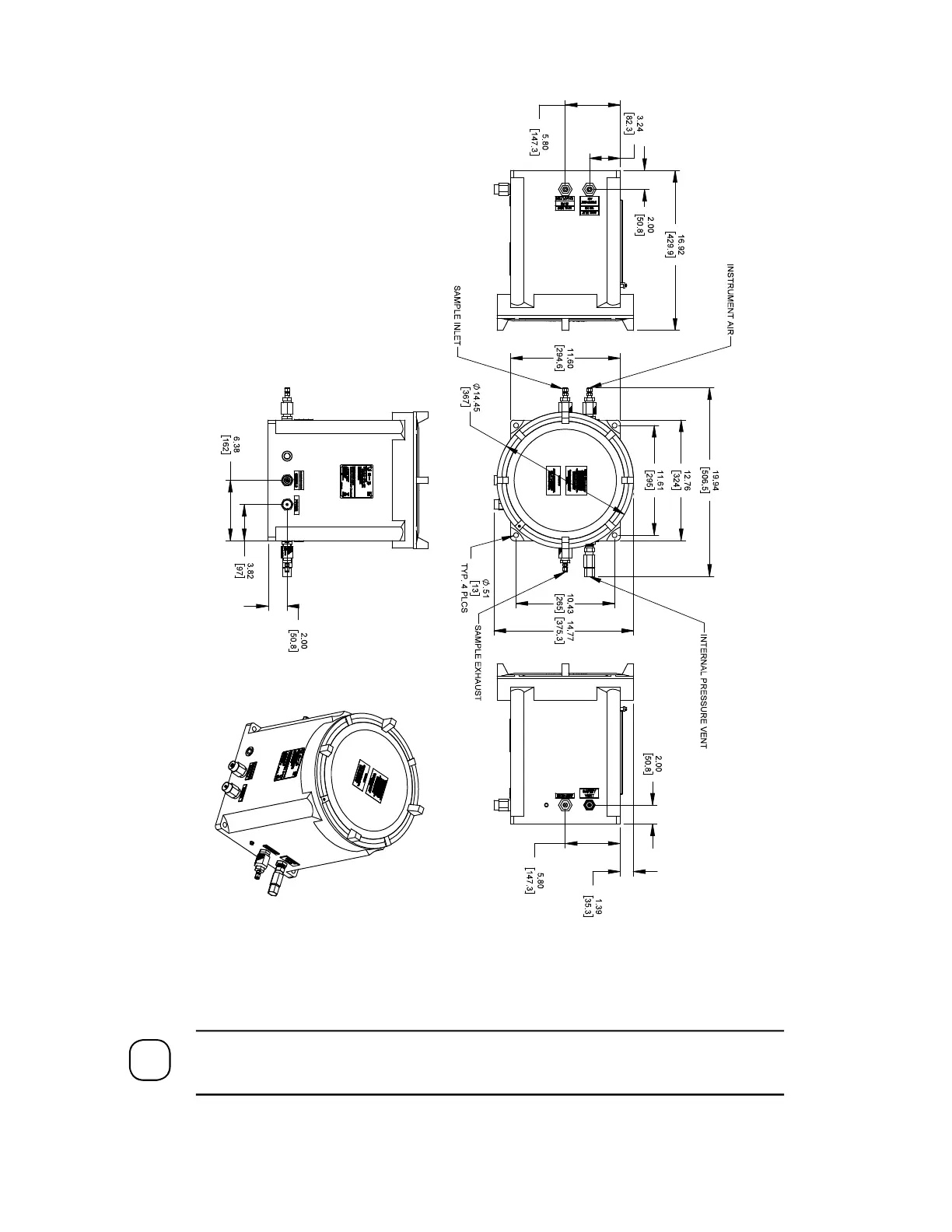

Figure 3-3a.

Threaded Enclosure

Analyzer Arrangement



NOTE

The unit is intended to be mounted on a horizontal surface or on a verticle surface

with a junction box. Contact Ametek for custom orientations.

Analyzer Serial Number Location3
