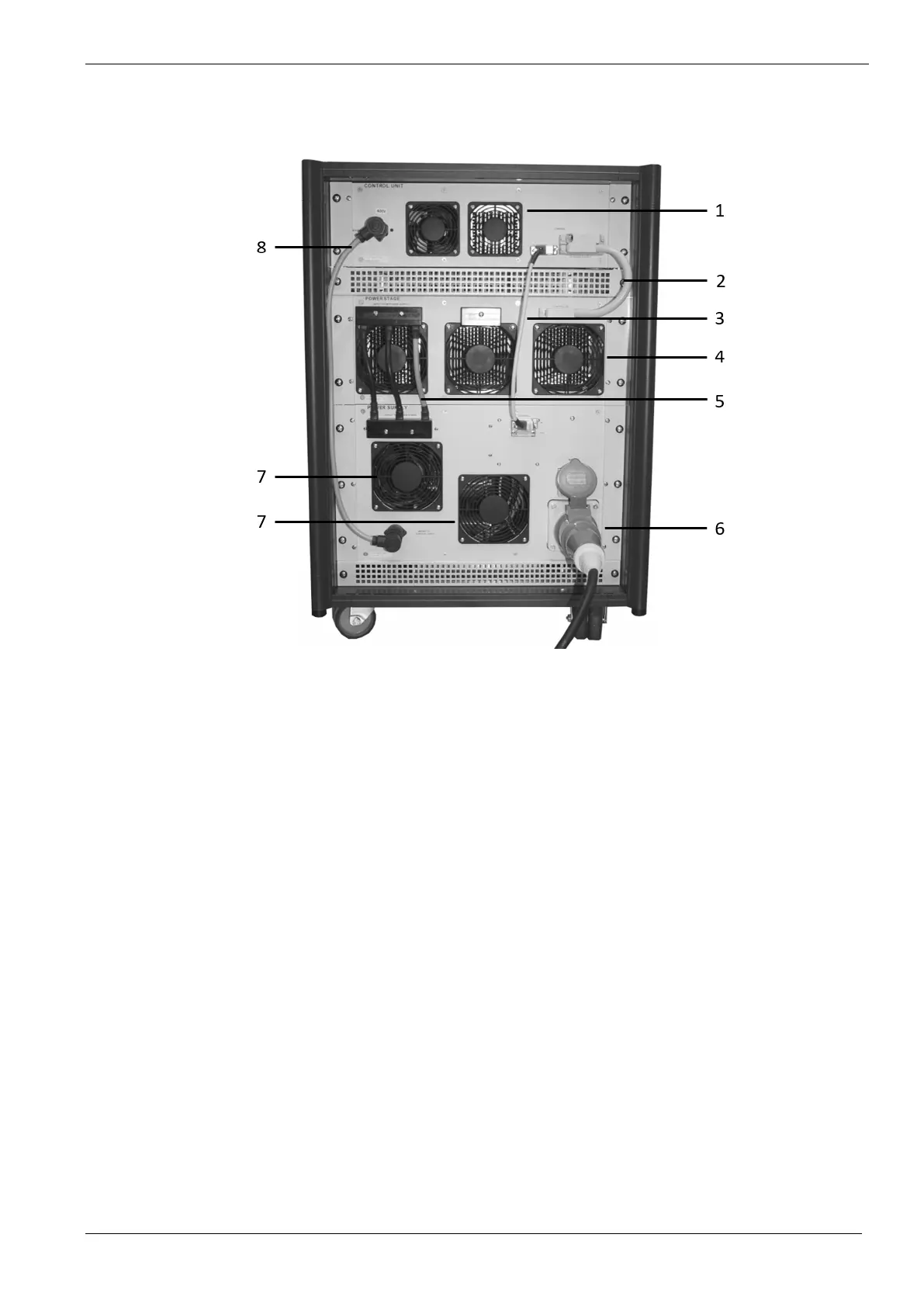

4.4. PA 5840 rear view
1 Cooling for control unit
Fans and protection covers for cooling. Ensure a proper air flow, keep at least 0.5m to any blocking items
such as walls.
2 Control cable CU/PS
Internal control cable control unit / power stage (pre-wired).
3 Control cable CU/PSU
Internal control cable control unit / power supply (pre-wired).
4 Cooling for power stage (amplifier)
Fans and protection covers for cooling. Ensure a proper air flow, keep at least 0.5m to any blocking items
such as walls.
5 Power connection PSU/PS
Internal power connection power supply to power stage (amplifier). Connection is pre-wired.
6 Power mains inlet
Single or 3-phase power mains input (depending on model and country)
PA 5840-75 (single phase 100 / 208 / 230Vac), PA 5840-150/300 (3-phase 200 / 400Vac).
7 Cooling for power supply
Fans and protection covers for cooling. Ensure a proper air flow, keep at least 0.5m to any blocking items
such as walls
8 Power cable CU/PSU
Internal power cable control unit / power supply (pre-wired)
