Ametek 5000 Series User Manual

AMETEK CTS Automotive Immunity Test Generators
V 1.00 14 / 27

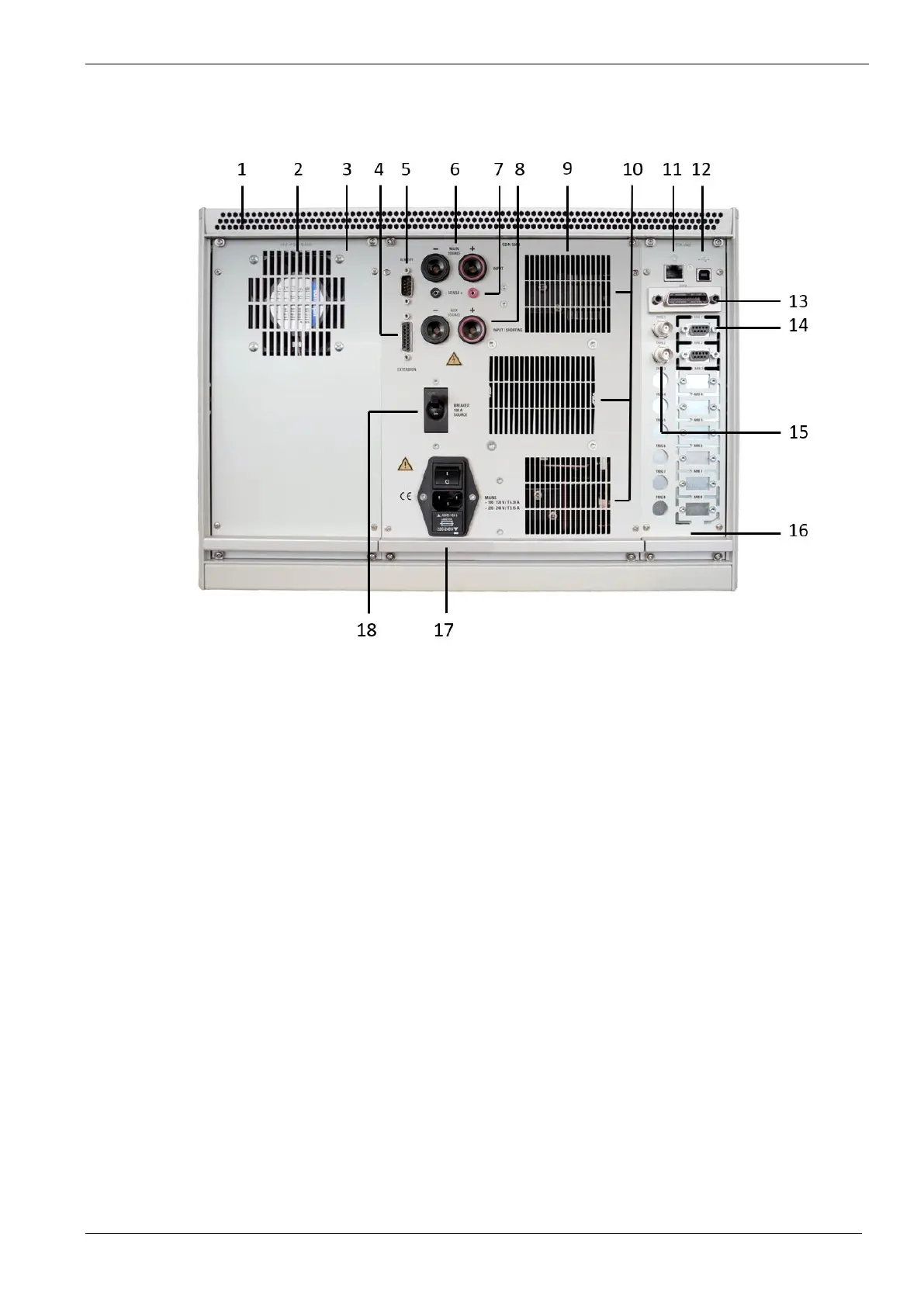

4.2. NSG 5500 rear view
1
NSG 5500 chassis
10
Ventilation CDN 5501
2
Ventilation for HV PSU 5500 module
11
Ethernet interface
3
HV PSU 5500 module
12
USB interface
4
Bus expansion
13
GPIB interface
5
9 pin DSub remote connector
14
+Arb / ARB 5500 interface out
6
Main source IN
15
BNC
7
Sense lines
16
CTR 5502 module / ARB 5500
8
AUX source IN
17
Mains input
9
CDN 5501
18
Circuit breaker
1 NSG 5500 chassis
2 Ventilation for HV PSU 5500 module
Ventilation slits with fan behind. Keep at least 20cm distance to a wall or any other blocking object.
3 HV PSU 5500 module
Mandatory power supply module to generate the required voltage for the transient pulses.
4 Bus expansion
15 pin DSub port. Funtion currently not supported.
