AMETEK CTS Automotive Immunity Test Generators
V 1.00 24 / 27
5. Operation
5.1. Test Setup

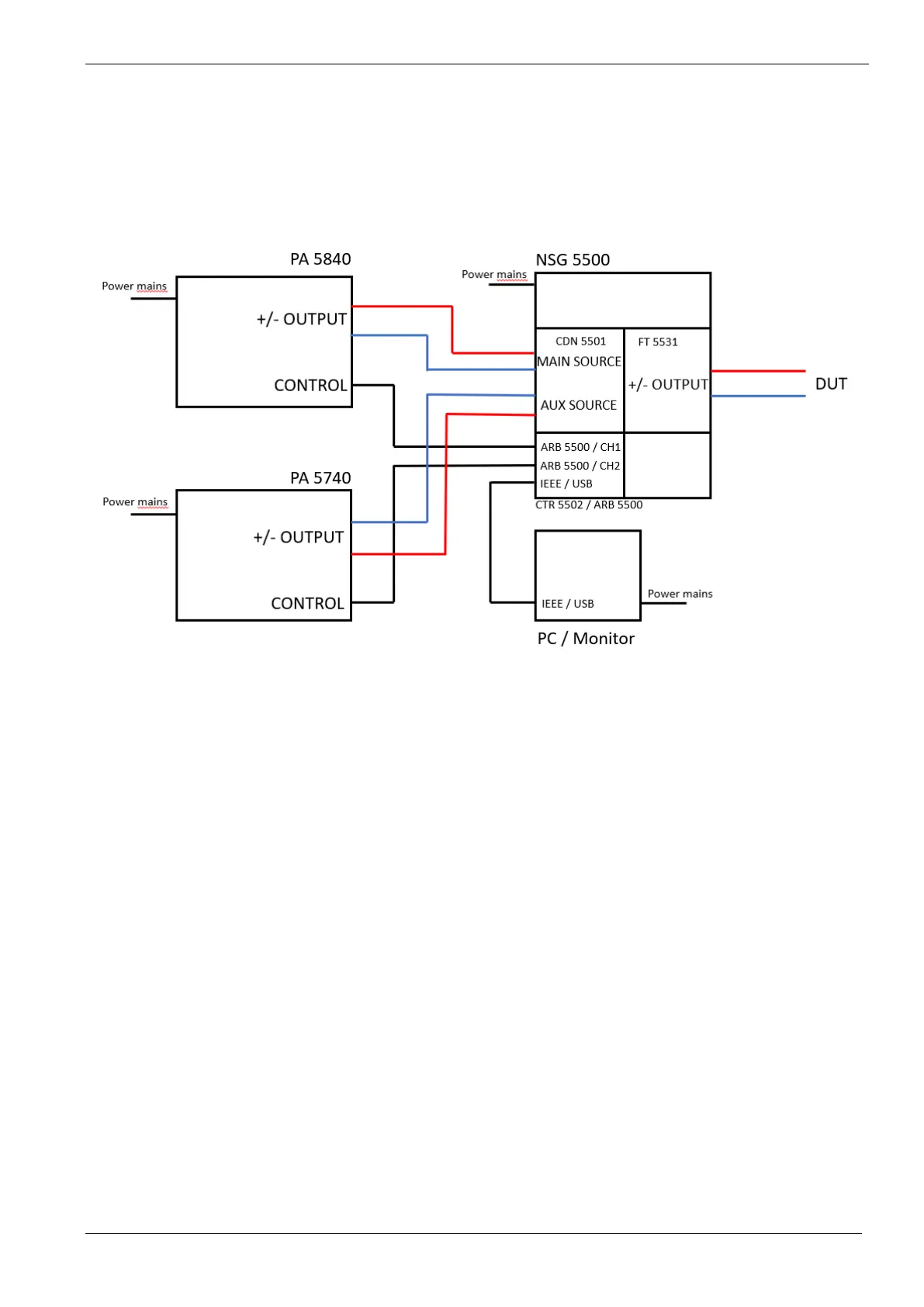

See below a test setup sample using 2 PA units connected to the NSG 5500.
5.2. Get started
• Establish all required cablings between NSG 5500 and PA 5840 (see sample setup above)
• Power up NSG 5500 first
• Thereafter power up PA 5840 / PA 5740
• Get connected to the software / PC using either USB or GPIB connection
