Ametek 5000 Series User Manual

AMETEK CTS Automotive Immunity Test Generators
V 1.00 22 / 27

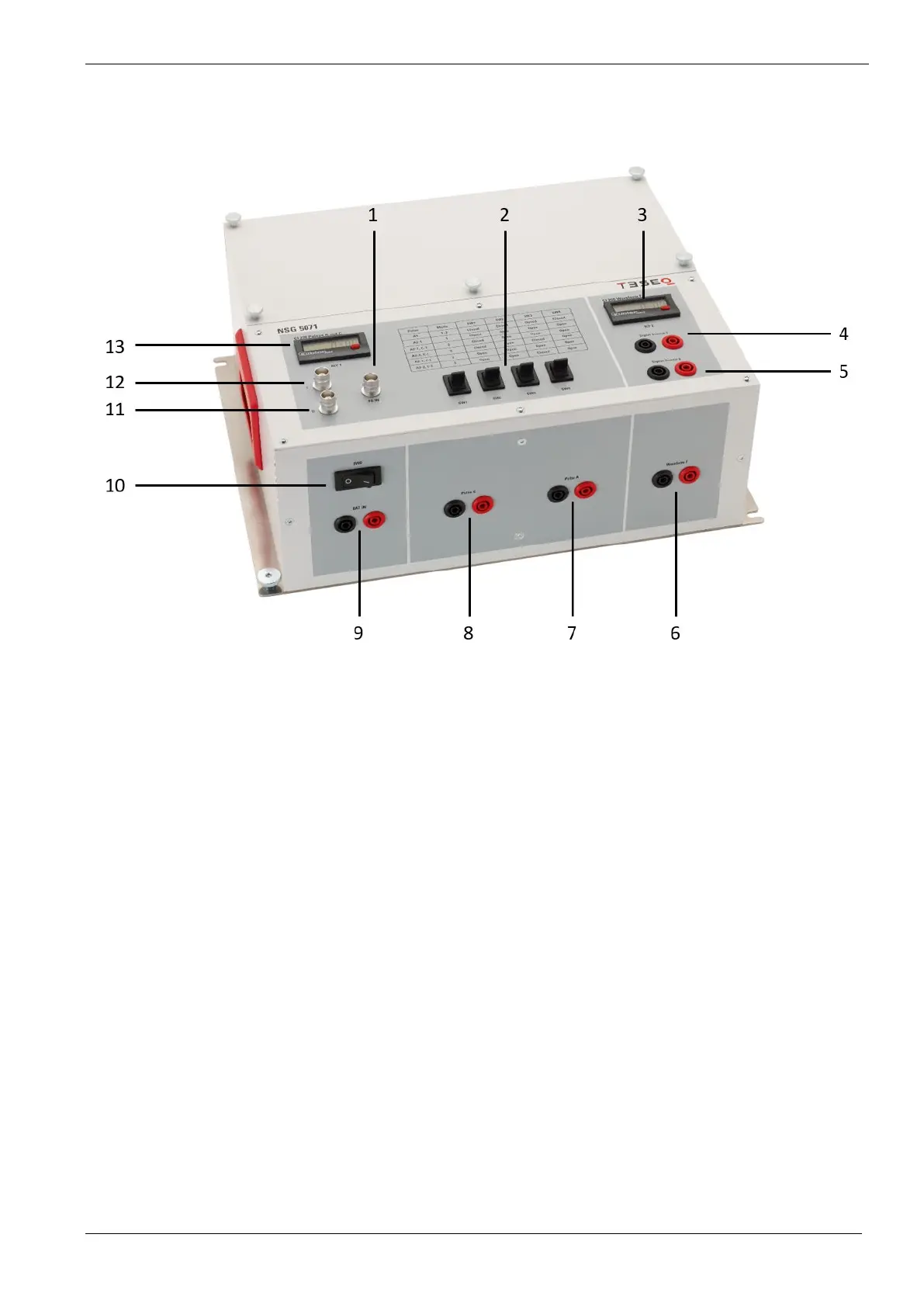

4.7. NSG 5071 top view / front view
1
BNC ARB input
8
Pulse C output
2
Pulse selection and table
9
+/- battery input
3
Counter 1
10
Power switch
4
Signal source 1
11
BNC D
5
Signal source 2
12
BNC C
6
Pulse F output
13
Counter 2
7
Pulse A output
1 BNC ARB input
Connection from ARB 5500
2 Pulse selection and table
Set the switches according to the test requirements from the standard.
3 Counter 1
Pulse (relay switching operations) counter for pulse F
4 Signal source 1
Banana plug input for signal source 1
5 Signal source 2
Banana plug input for signal source 2
6 Pulse F output
DUT output for pulses F
7 Pulse A output
DUT output for pulses A
