digiBASE
®
PMT Base with Integrated Bias Supply, Preamplifier and Digital Multichannel Analyzer 931003E / 0620

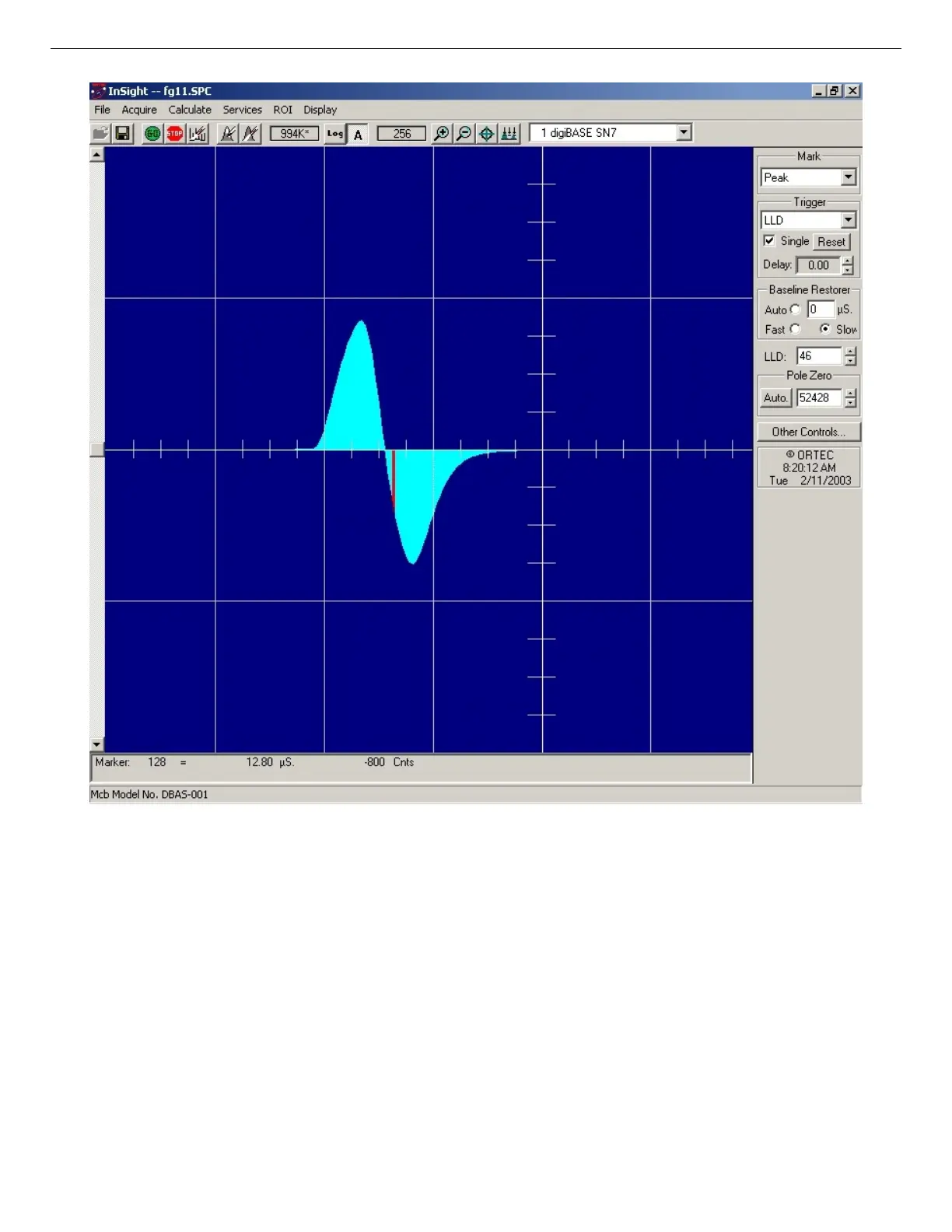

Figure 9. digiBASE InSight Mode
The display can be switched from the digiBASE to another MCB or the buffer. In this case the
other MCB will be shown in the mode selected for it. The buffer will always be shown in PHA
mode. The display will return to the InSight mode when you return to the first digiBASE. If you
exit the program with the digiBASE in InSight mode, it will be in InSight mode on the next
startup.
The display can include a Mark to indicate one of the other signals shown in Fig. 10. The Mark
is a solid-color region displayed similarly to that of an ROI in the spectrum. The digiBASE
12
