931003E / 0620 2. GETTING STARTED

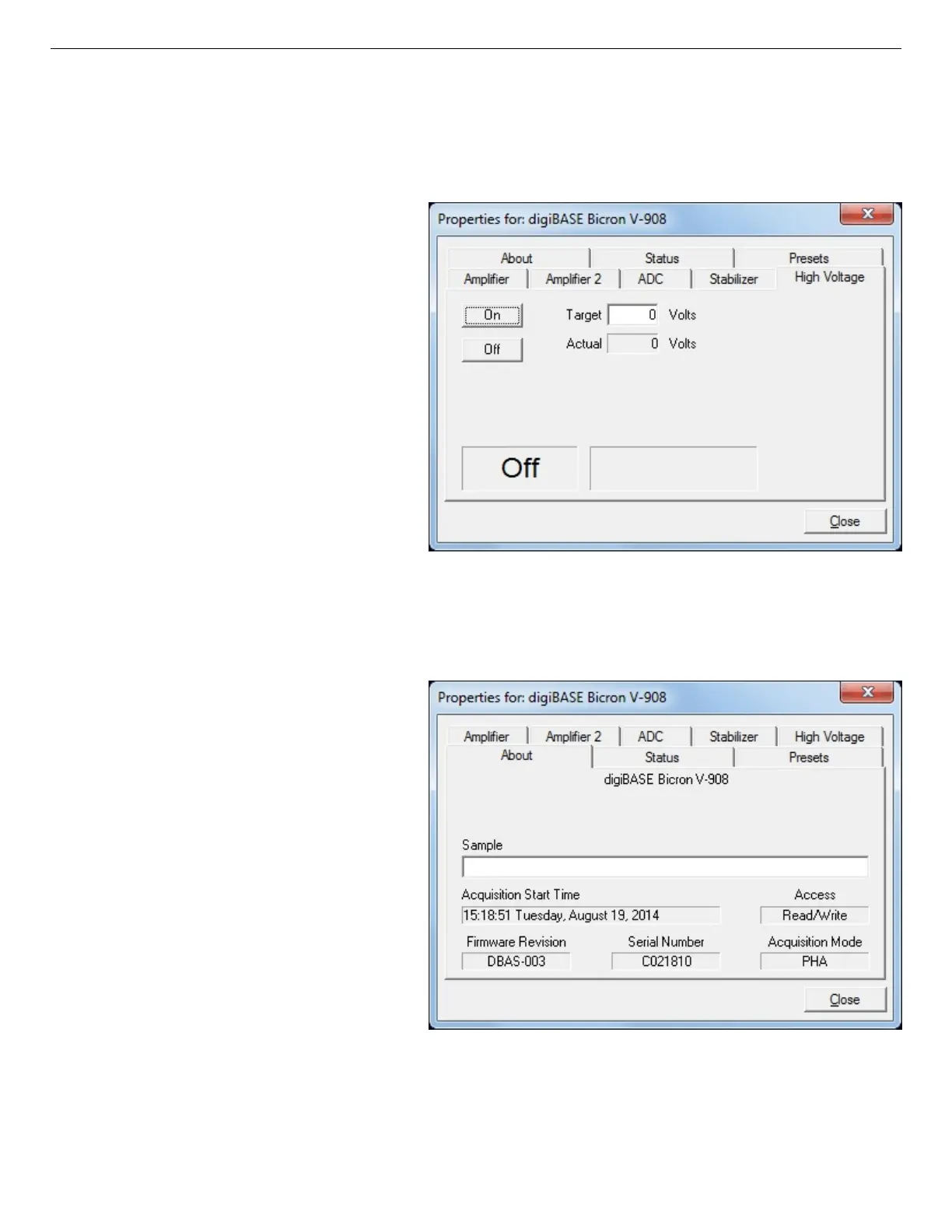

Figure 13. digiBASE High Voltage Tab
Figure 14. digiBASE About Tab
dialog, the stabilizer will stay enabled even if the power is turned off. When the stabilizer is
enabled, the Center Channel and Width cannot be changed.
2.5.5. High Voltage
Figure 13 shows the High Voltage
tab, which allows you to turn the
high voltage on or off; and set and
monitor the voltage.
Enter the detector high voltage in
the Target field, click On, and
monitor the voltage in the Actual
field. Click the Off button to turn
off the high voltage.
2.5.6. About
This tab (Fig. 14) displays hardware
and firmware information about the
currently selected digiBASE as well
as the data Acquisition Start Time
and Sample description. In addition,
the Access field shows whether the
MCB is currently locked with a
password (see the password discus-
sion in the MAESTRO User’s
Manual). Read/Write indicates
that the MCB is unlocked; Read
Only means it is locked.
15
