Ametek Reichert XCEL 255 - Setup; Parts Identification; Package Contents and Accessories

8
15120-101 Rev. D
Setup
1
2
3
11
12
13
9
14
15
16
10
6
5
19
17
18
7
8
22
23
24
4
20
21
25

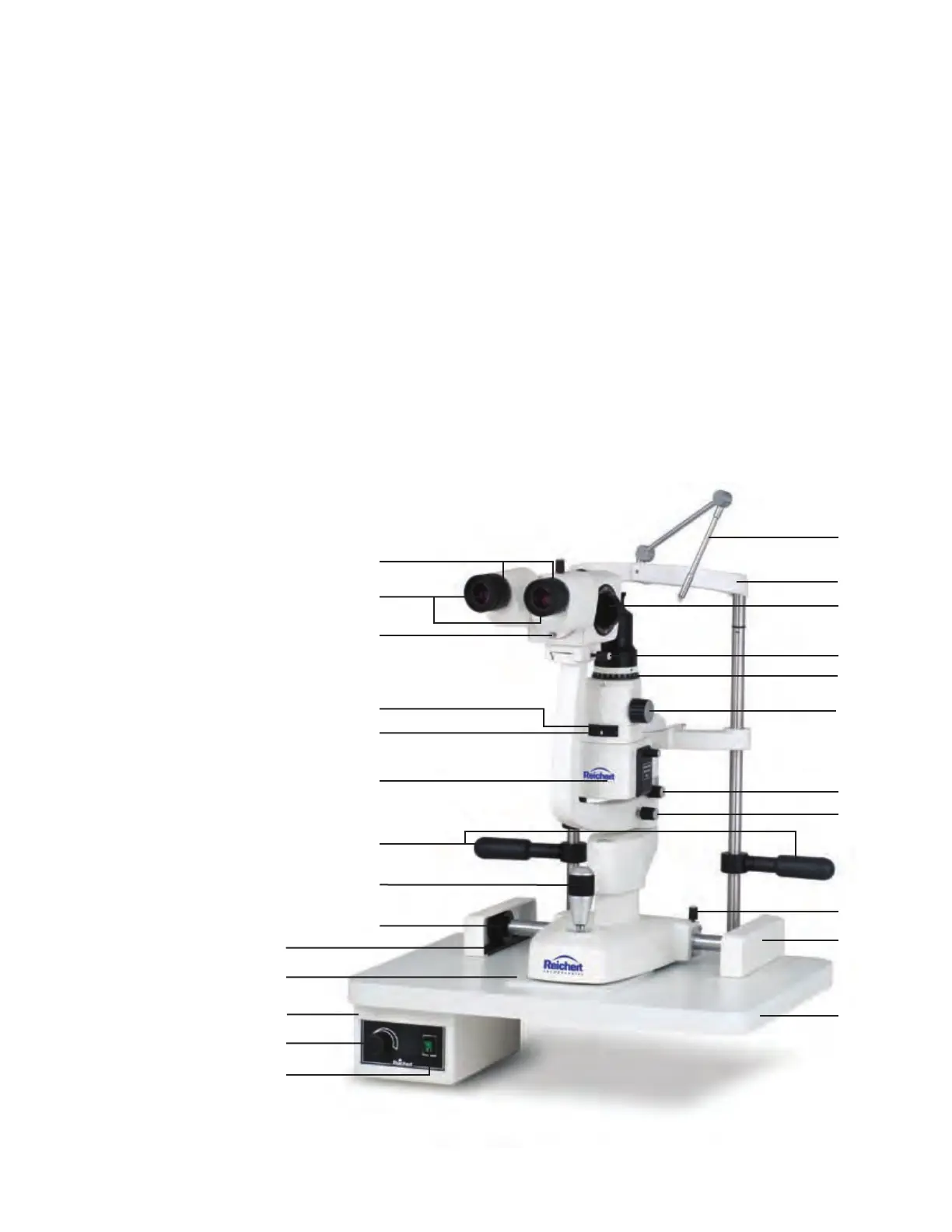

Parts Identication
On/Off Switch1.
Illumination Level Control2.
Glide Plate3.
Joystickforhorizontalandverticalmovement4.
Bulb Access Door5.
Filter Dial6.
Slit Length Dial7.
Breath Shield Mount8.
Eyepieces9.
Focusing Rings10.
Fixation Light11.
Magnification Dial12.
Microscope Lock Knob13.
Slit Rotation Scale14.
Slit Width/Rotation Knob15.
Illumination Arm Lock Knob16.
Microscope Arm Lock Knob17.
Instrument Base Lock Knob18.
Guide Rail Covers19.
Geared Rollers20.
Guide Rails21.
Chin Rest Assembly22.
Power Supply Assembly 23.
Table Top24.
Patient Handles25.
Xcel 255 Package Contents
Xcel 255 Slit Lamp (15120)•
User's Guide (15120-101)•
Accessories
Focusing Rod (P/N 15120-226)•
Hex Wrench - 3mm (P/N X54264)•
Hex Wrench - 4mm (P/N X54248)•
Hex Wrench - 5mm (P/N X54398)•
Dust Cover (15120-225)•
Halogen Lamp, Main (15121)•
Guide Rail Covers (15120-031)•
Replacement Fuses (RFAG20063)•
Chin Rest Paper - 1 pack (15120-051) •
