Introduction
1-10 M370430-01 Rev F

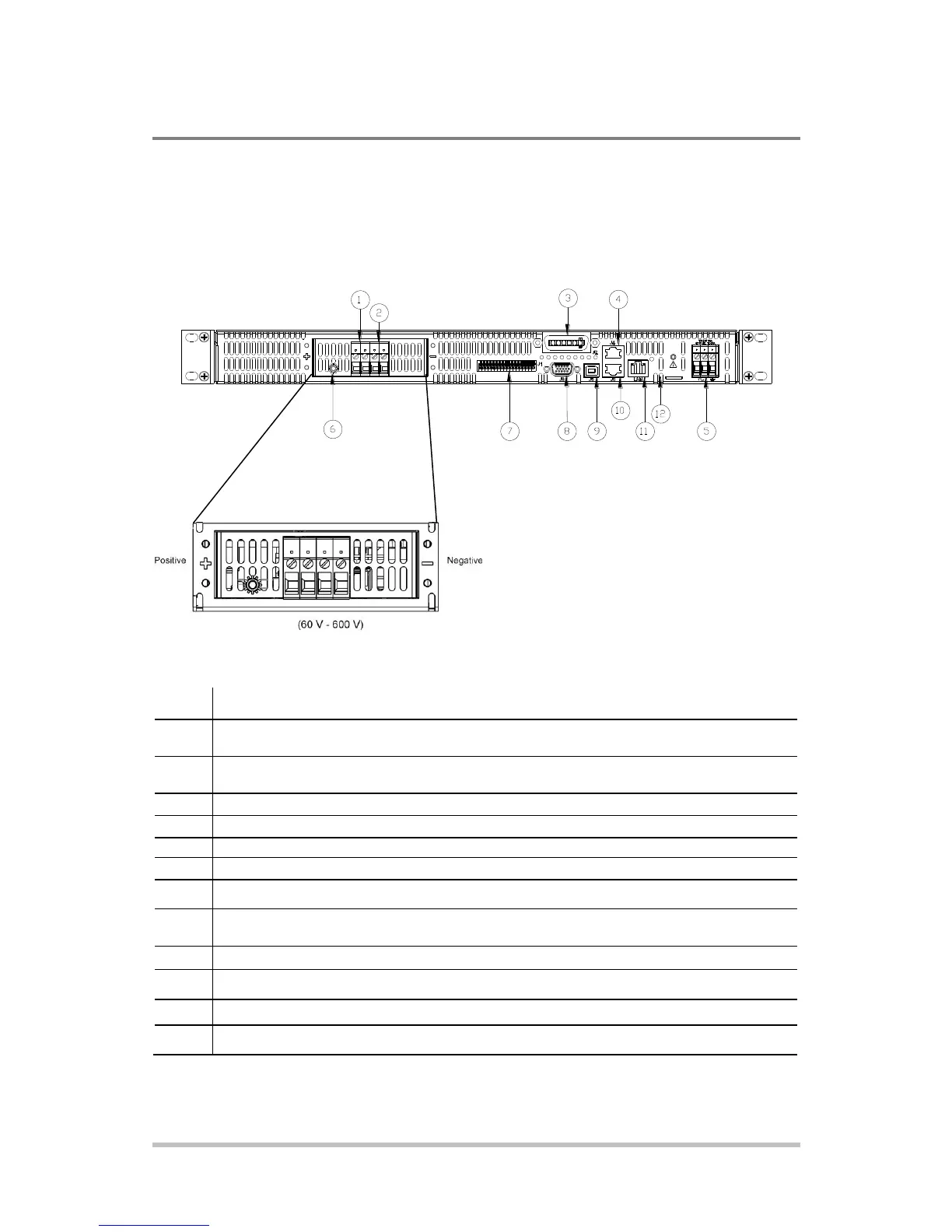

Figure 1-7 XG 1500 and 1700 Watt Units: 60 V to 600 V Models
Item
Description
1
6 V– 40 V Models: DC Output Terminal Positive (8.5 mm hole diameter)
60 V–600 V Models: DC Output Connectors Positive
2
6 V– 40 V Models: DC Output Terminal Negative (8.5 mm hole diameter)
60 V–600 V Models: DC Output Connectors Negative
3 (J2)
Ethernet (ENET) or GPIB Connector (optional)
4 (J4)
RS-232/RS-485 Connector In Port
5
AC Input Terminal
6
Chassis Ground Stud
7 (J1)
Analog Programming (APG) Connector. For pin information, see page 4–5.
8 (J3)
AUX Output and Isolated Analog Programming (ISOL) Connector. For pin information, see
page 4–20.
9 (J5)
USB Connector
10 (J6)
RS-485 Connector Multichannel Port
11
Ethernet Connector
12
Fan Exhaust Vents
