Front Panel Display and Controls

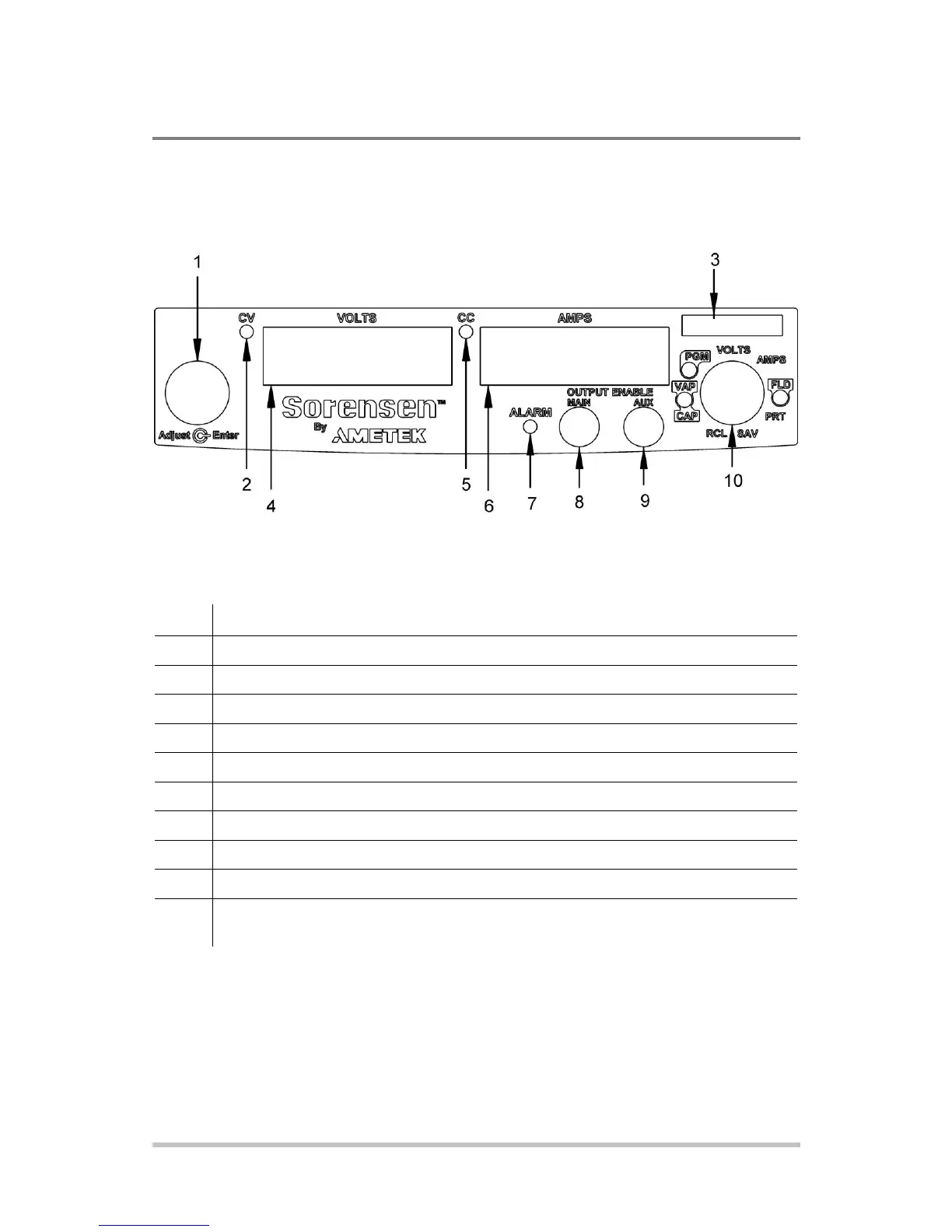

Figure 1-2 Front Panel Display and Controls
Item
Description
1
Rotary Adjust/Enter control
2
Constant Voltage (CV) Mode LED (green)
3
Model Identification Label
4
Output Voltage Display
5
Constant Current (CC) Mode LED (green)
6
Output Current Display
7
Alarm Indicator LED (red)
8
OUTPUT ENABLE Main button
9
OUTPUT ENABLE Aux button
10
9-Position Mode Control (For detailed information, see “Configuring Settings from the Front
Panel” on page 3-2).
