Ametek Sorensen XG 33-25 - Step 1: Gain Calibration; Step 2: Offset Calibration

Calibration and Troubleshooting
7-4 M370430-01 Rev F
Step 1: Gain Calibration
Measured Value
Programmed Value
Programmed Value

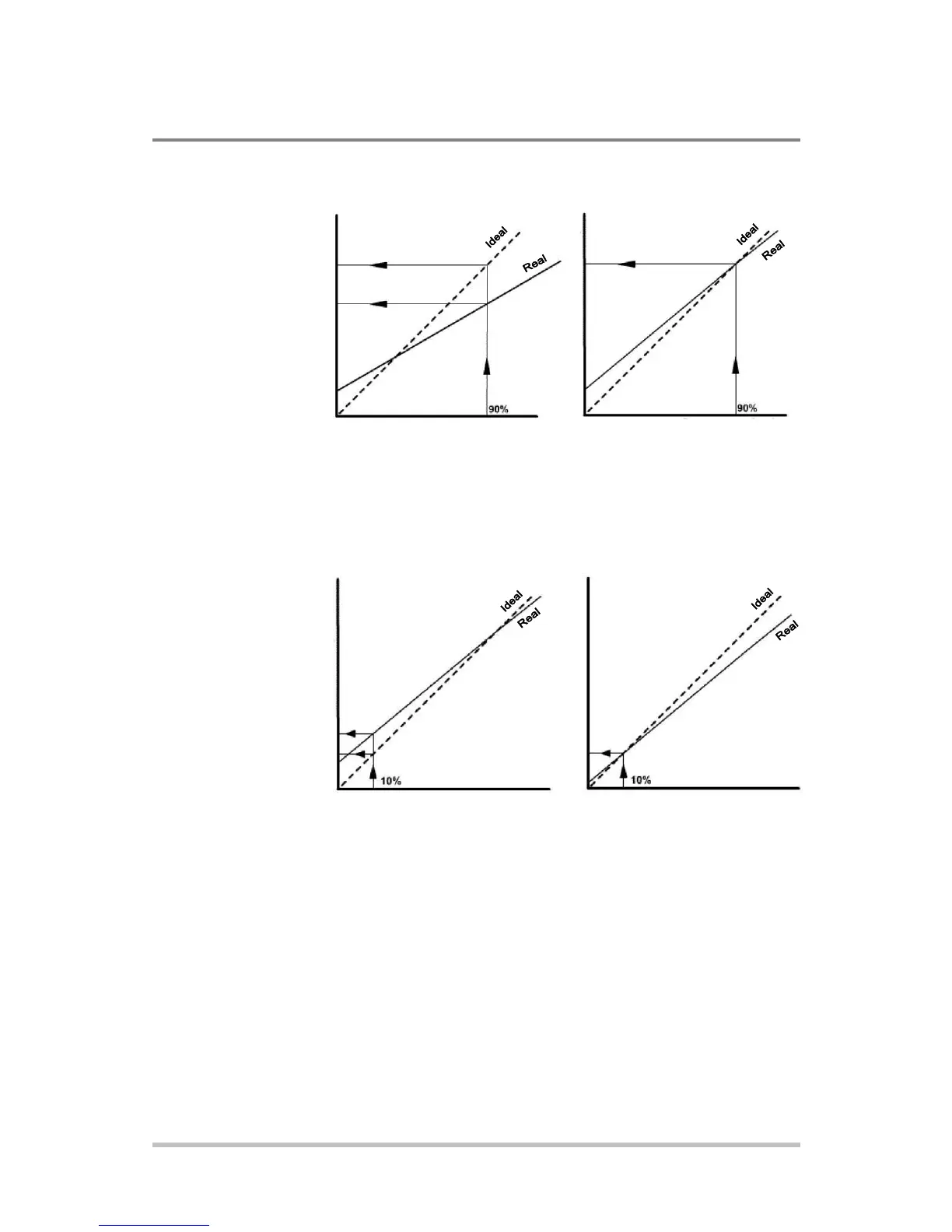

Figure 7-2 Calibration: Step 1 Gain Calibration
Adjust the gain so that the real line and ideal line intersect at a
programmed value of 90%.
Step 2: Offset Calibration
Measured Value
Programmed Value
Programmed Value
Figure 7-3 Calibration: Step 2 Offset Calibration
Adjust the offset so that the real and ideal lines intersect at a
programmed value of 10%.
Measured Value
Measured Value
