APPENDIX D
Rack Mount Options and Installation Instructions
D-8 M370430-01 Rev F

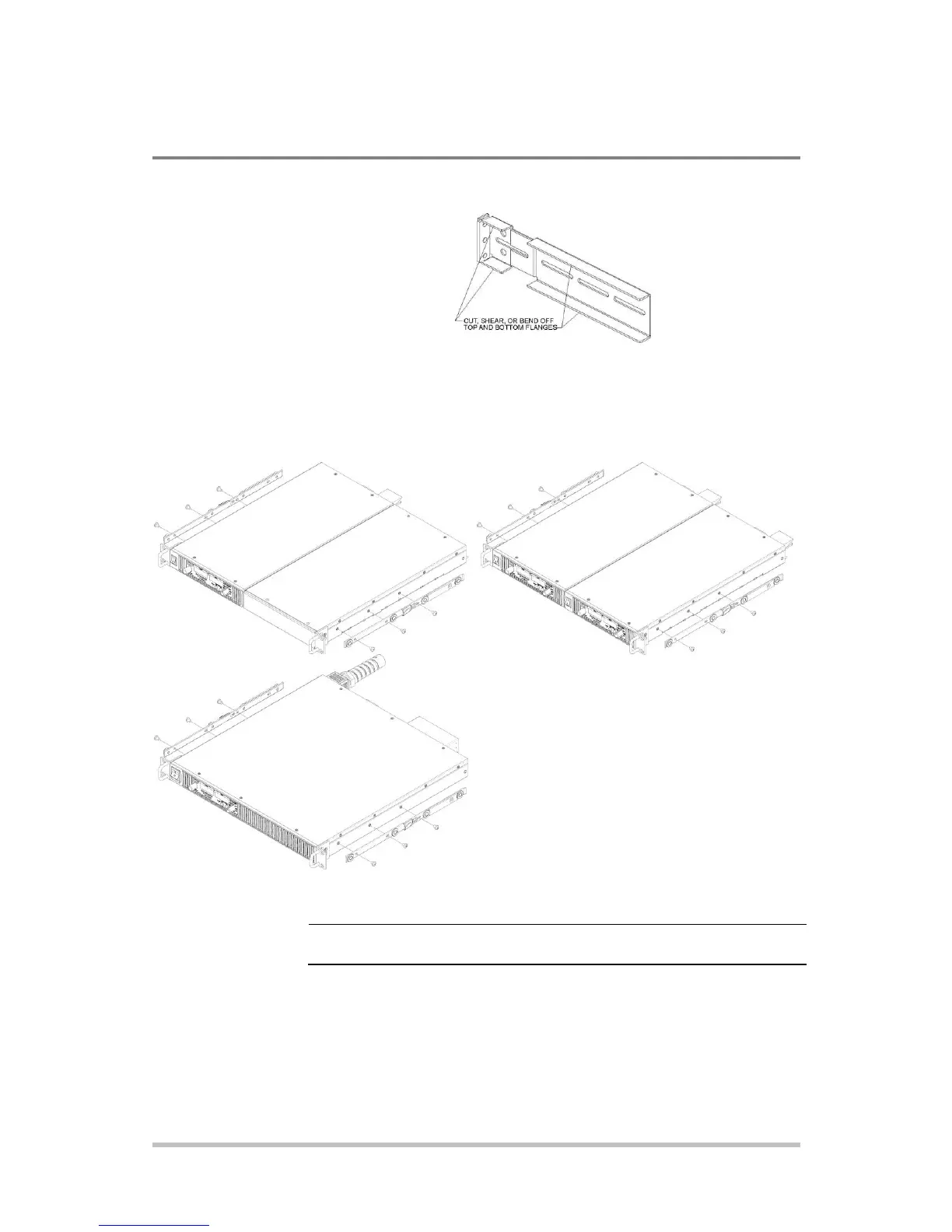

Figure D-6 Modifying Rear Bracket
4. Remove the chassis member from the slides and assemble to the chassis using M5 × 6 mm
pan head screw SST (6X) which are not supplied. See Figure D-7.
Figure D-7 Removing Chassis Member From Slides
Important: Figure D-6 shows the chassis member for slide 375QD-18.
The chassis member will be longer for Jonathan slide 375QD-26/28.
5. Attach front and rear brackets to cabinet section (see Figure D-8) using the following
materials supplied with the slides:
• (4) #8 × 0.375 Flat Head Countersunk Screws SST
• (4) #8 Lock Washers
• (4) #8 Regular Washers
• (4) #8 Hex Nuts
