APPENDIX D
Rack Mount Options and Installation Instructions
M370430-01 Rev F D-9

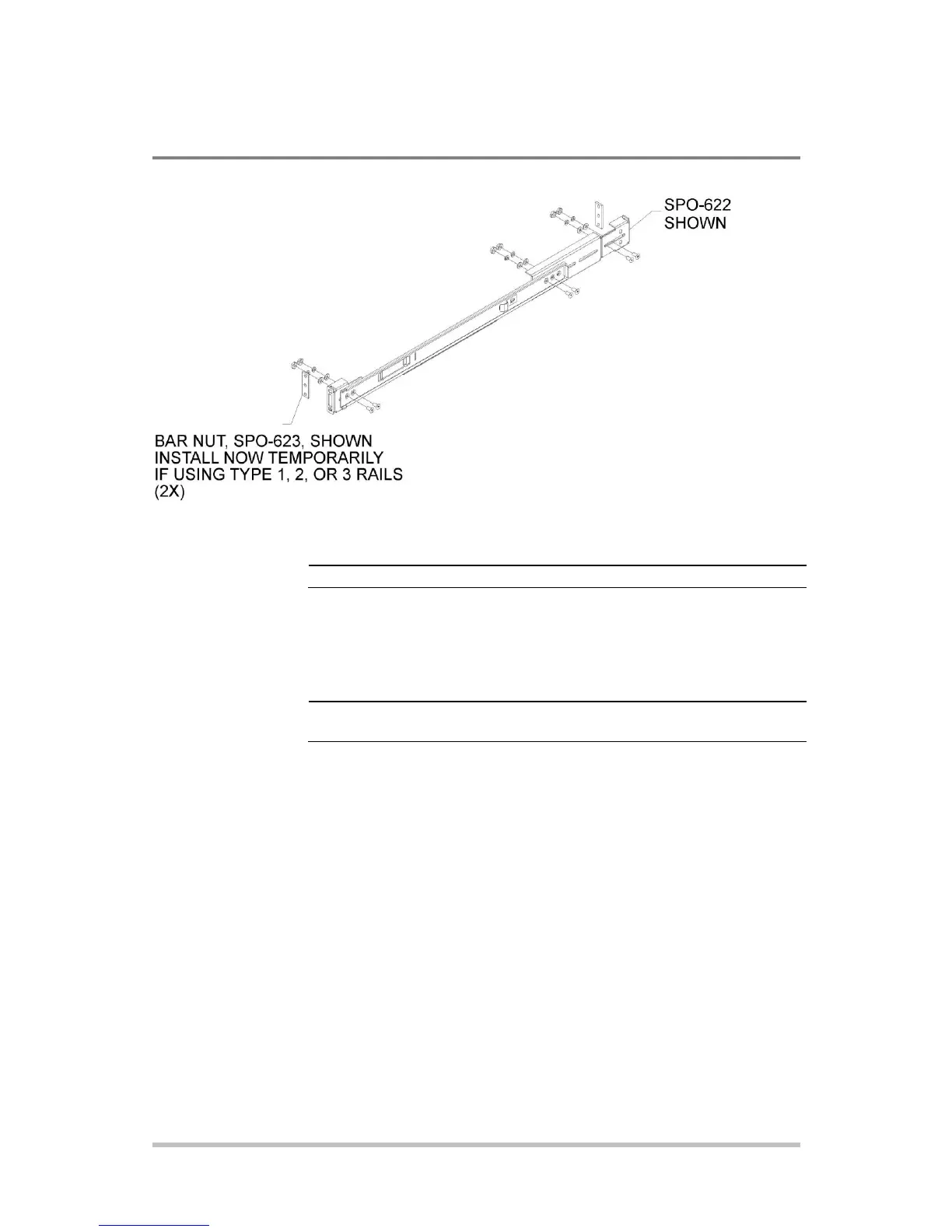

Figure D-8 Attaching Front and Rear Bracket To Cabinet Section
Important: Do not tighten hardware completely.
6. Mount cabinet section into rack between upright rails using:
• (4) Bar nuts (SPO-623 sold separately)
• (6) #10 × 0.375 flat head countersunk Phillips SST screw (not supplied by Jonathan).
Two for each side. See Figure D-9.
Important: The hardware used will change depending on the type of
mounting hole available in your equipment rack. Ensure rails are level.
