14 Versitron Operation Manual
4.3 Bolting the Bench Stands
It is required that the Versitron machines are secured to the bench using the 4 (M12)

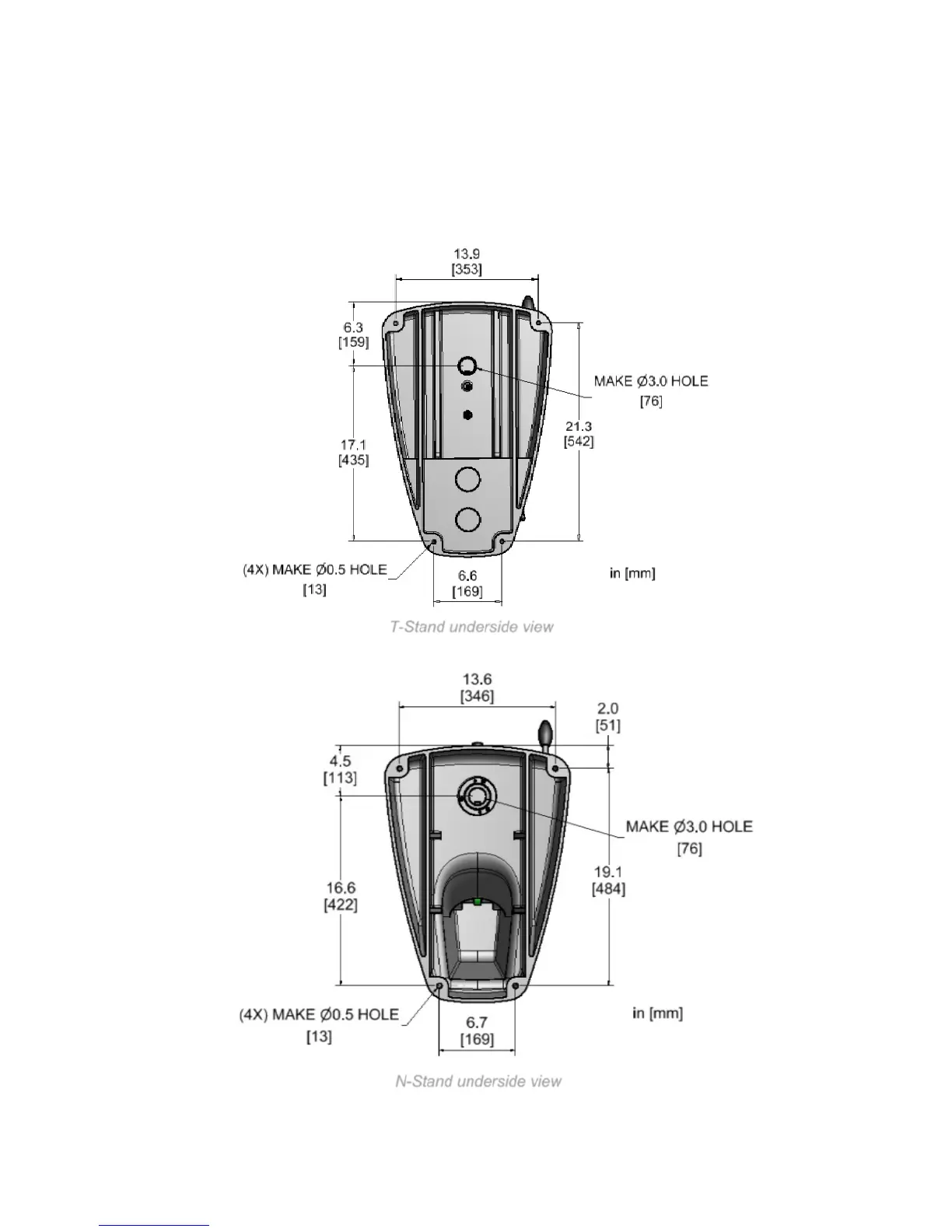

threaded holes that must be reached from underneath the base. The templates below
show the location of the 4 holes as required on the workbench for the bolts clearance.
A centered hole needs to be drilled out also for clearance of the Elevating Screw.
N-Stand underside view
T-Stand underside view
