19www.amico.com
11
4
89
2
67
1
3
10
5

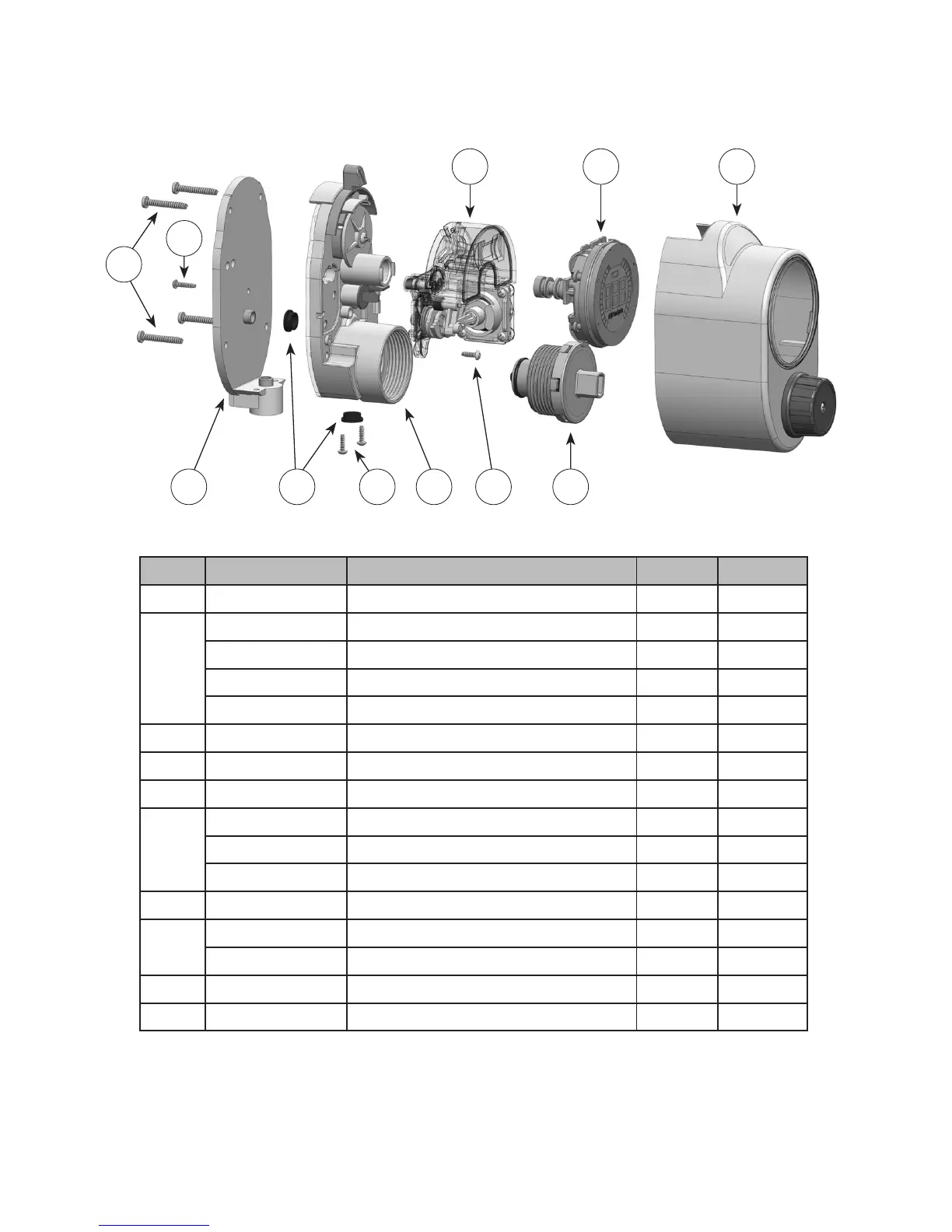

Vacuum Regulator Assembly Drawing - Scout
Item # Part # Description Quantity Model(s)
1 SRX-FNT-HSEASM-W Front Housing Assembly - White 1 All
2 SRA-GAUGE-300 Analog 0-300 mmHg Gauge 1 C2, C3, CI
SRA-GAUGE-750 Analog 0-750 mmHg Gauge 1 CH
SRD-GAUGE-300 Digital 0-300 mmHg Gauge 1 C2, C3, CI
SRD-GAUGE-750 Digital 0-750 mmHg Gauge 1 CH
3 SRX-REG-MOD Regulating Module 1 All
4 SRX-CI-MODULE Intermittent Module 1 CI
5, 7 SRX-DSP-SCR Disposable Back Screw/Control Knob Screw 3 All
6 SRX-C2-DBKIT 2 Mode Disposable Body Assembly 1 C2
SRX-C3-DBKIT 3/High Mode Disposable Body Assembly 1 C3, CH
SRX-CI-DBKIT Intermittent Mode Disposable Body Assembly 1 CI
8 SRX-PRT-GKT Port Gasket Disposable Seal 2 All
9 SRX-C23BKC-KIT Continuous 2/3 Mode Back Housing Assembly 1 C2, C3, CH
SRX-CIBKC-KIT Intermittent Mode Back Housing Assembly 1 CI
10 SRX-DSP-SCRBK Disposable Body Back Screw 1 All
11 SRX-BHSSCR-6191 Housing Screw 6-19 x 1" 4 All
