Amico Scout Series - Vacuum Regulator Assembly Drawing - Sentinel; Sentinel Assembly Parts Identification

To Next Page

To Previous Page

20 Amico Patient Care Corporation

Item # Part # Description Quantity Model(s)

1 SSX-FNT-HSEASM-GY Front Housing Assembly - Grey 1 All

2 SRA-GAUGE-300 Analog 0-300 mmHg Gauge 1 C2, C3, CI

SRA-GAUGE-750 Analog 0-750 mmHg Gauge 1 CH

SRD-GAUGE-300 Digital 0-300 mmHg Gauge 1 C2, C3, CI

SRD-GAUGE-750 Digital 0-750 mmHg Gauge 1 CH

3 SRX-REG-MOD Regulating Module 1 All

4 SRX-CI-MODULE Intermittent Module 1 CI

5, 7 SRX-DSP-SCR Disposable Back Screw/Control Knob Screw 3 All

6 SSX-C2-DBKIT 2 Mode Disposable Body Assembly 1 C2

SSX-C3-DBKIT 3/High Mode Disposable Body Assembly 1 C3, CH

SSX-CI-DBKIT Intermittent Mode Disposable Body Assembly 1 CI

8 SRX-PRT-GKT Port Gasket Disposable Seal 3 All

9 SSX-C23BK-KIT Continuous 2/3 Mode Back Housing Assembly 1 C2, C3, CH

SSX-CIBK-KIT Intermittent Mode Back Housing Assembly 1 CI

10 SRX-DSP-SCRBK Disposable Body Back Screw 1 All

11 SRX-BHSSCR-6191 Housing Screw 6-19 x 1" 6 All

12 SSX-CDR-MODULE Sensor Assembly with Batteries 1 All

13 SRD-BAT Batteries 2 All

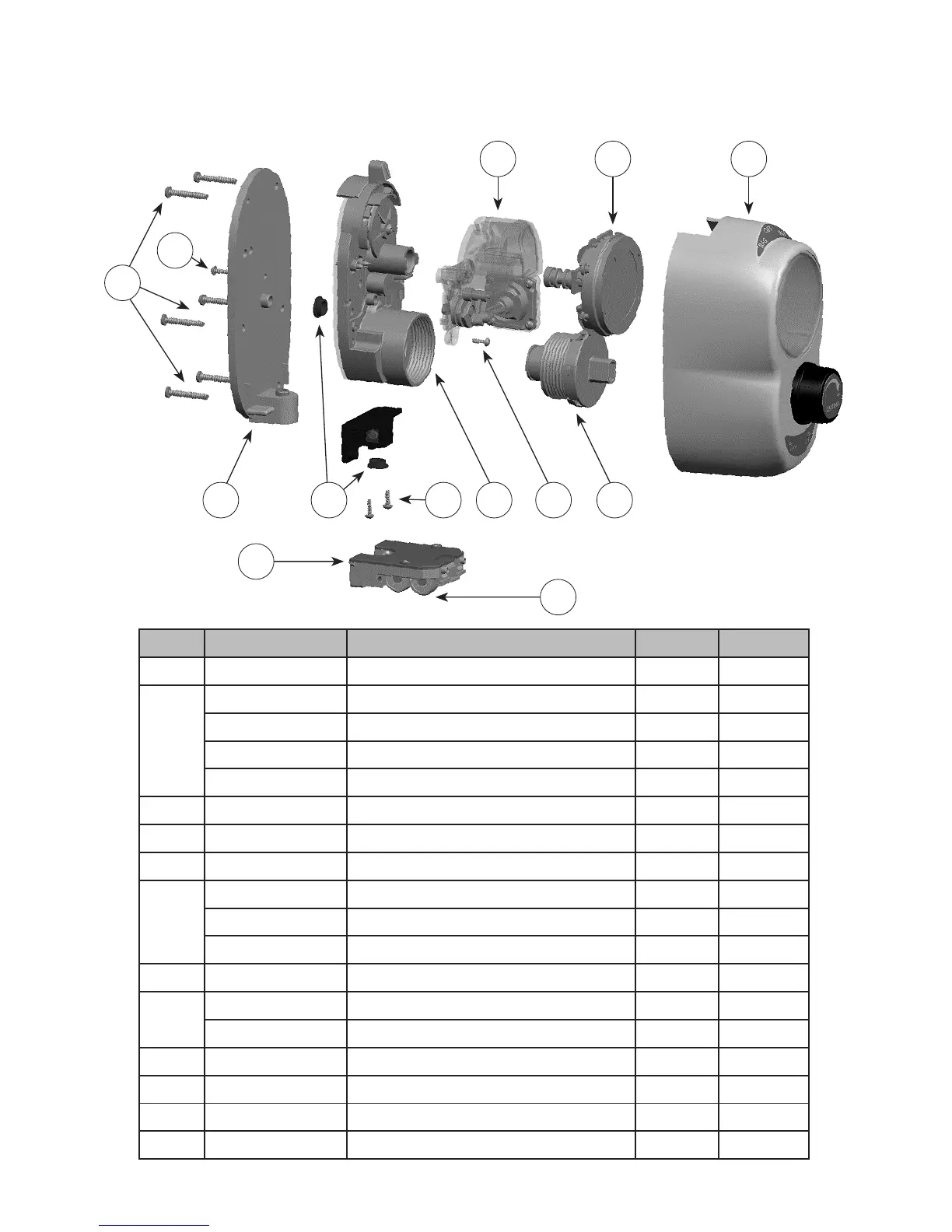

Vacuum Regulator Assembly Drawing - Sentinel
