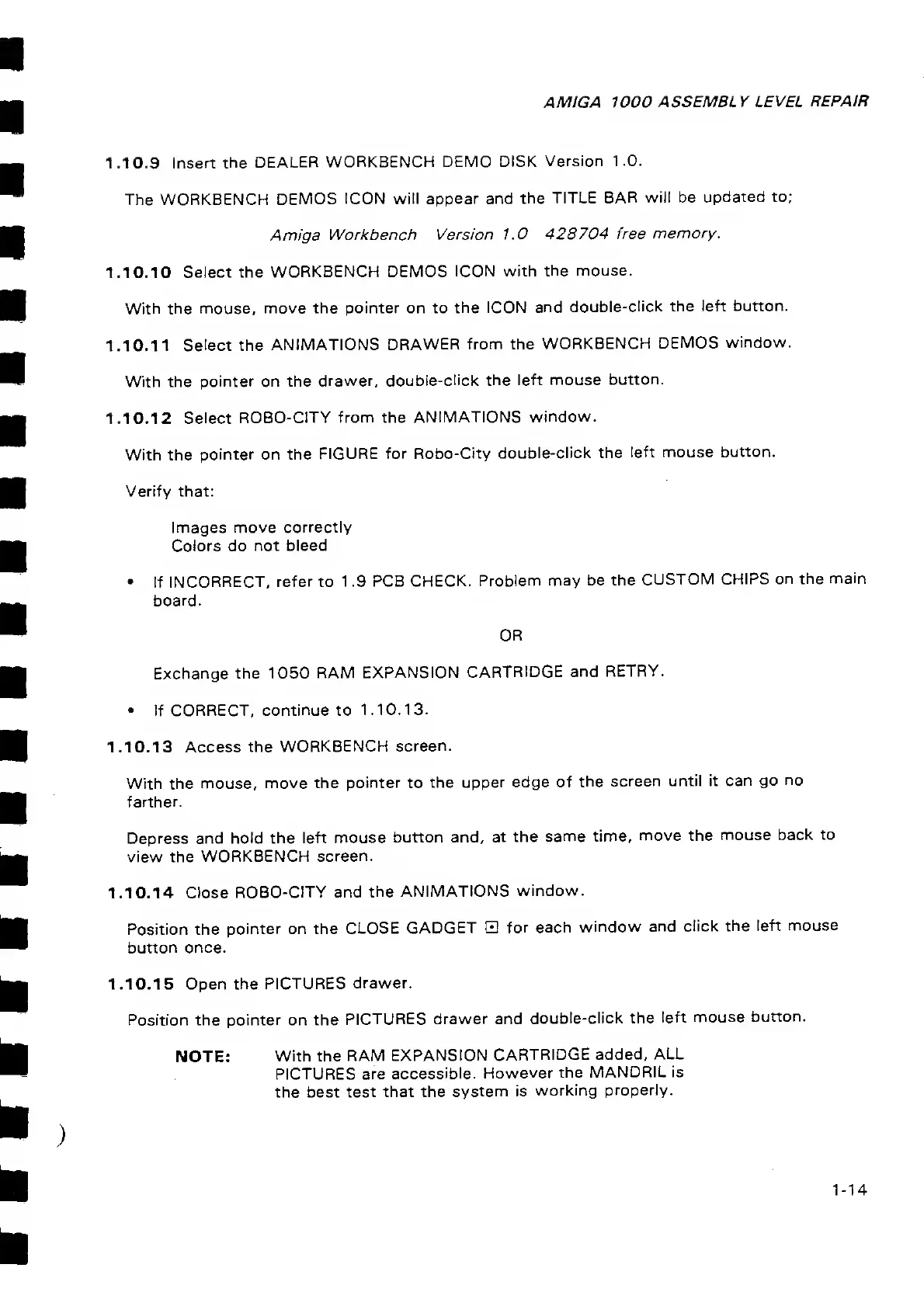

AMIGA WOO
ASSEMBLY
LEVEL REPAIR
1.10.9 Insert
the
DEALER
WORKBENCH DEMO DISK
Version
1.0.
The
WORKBENCH DEMOS
ICON will appear and
the TITLE
BAR
will
be
updated to;
Amiga Workbench
Version 1.0
428704 free
memory.
1.10.10
Select the
WORKBENCH DEMOS
ICON with
the mouse.
With the mouse, move the
pointer on
to
the ICON
and
double-click the
left
button.
1.10.11
Select the
ANIMATIONS
DRAWER from the
WORKBENCH DEMOS
window.
With the
pointer on the
drawer, doubie-ciick
the left
mouse
button.
1.10.12
Select
ROBO-CITY from the
ANIMATIONS
window.
With
the
pointer on the
FIGURE for
Robo-City
double-click the
left mouse
button.
Verify
that:
Images
move correctly
Colors do
not
bleed
•
If INCORRECT,
refer
to
1 .9 PCB
CHECK. Problem
may be the
CUSTOM
CHIPS
on the
main
board.
OR
Exchange the
1050 RAM
EXPANSION
CARTRIDGE
and
RETRY.
•
If CORRECT,
continue
to
1.10.13.
1.10.13 Access the
WORKBENCH screen.
With the mouse,
move the
pointer
to
the
upper
edge of the
screen
until
it
can go
no
farther.
Depress and
hold the left mouse
button and,
at the same time,
move the
mouse
back to
view the
WORKBENCH screen.
1.10.14
Close ROBO-CSTY and
the
ANIMATIONS
window.
Position the
pointer on the
CLOSE GADGET E
for each
window
and click
the left
mouse
button once.
1.10.15 Open the
PICTURES
drawer.
Position the pointer on the
PICTURES drawer and
double-click the
left
mouse
button.
NOTE:
With the
RAM
EXPANSION
CARTRIDGE
added, ALL
PICTURES are
accessible. However the
MANDRIL
is
the
best
test
that
the
system is
working properly.
1-14
