FIREFINDER SERIES II INSTALLATION, COMMISSIONING &
OPERATION

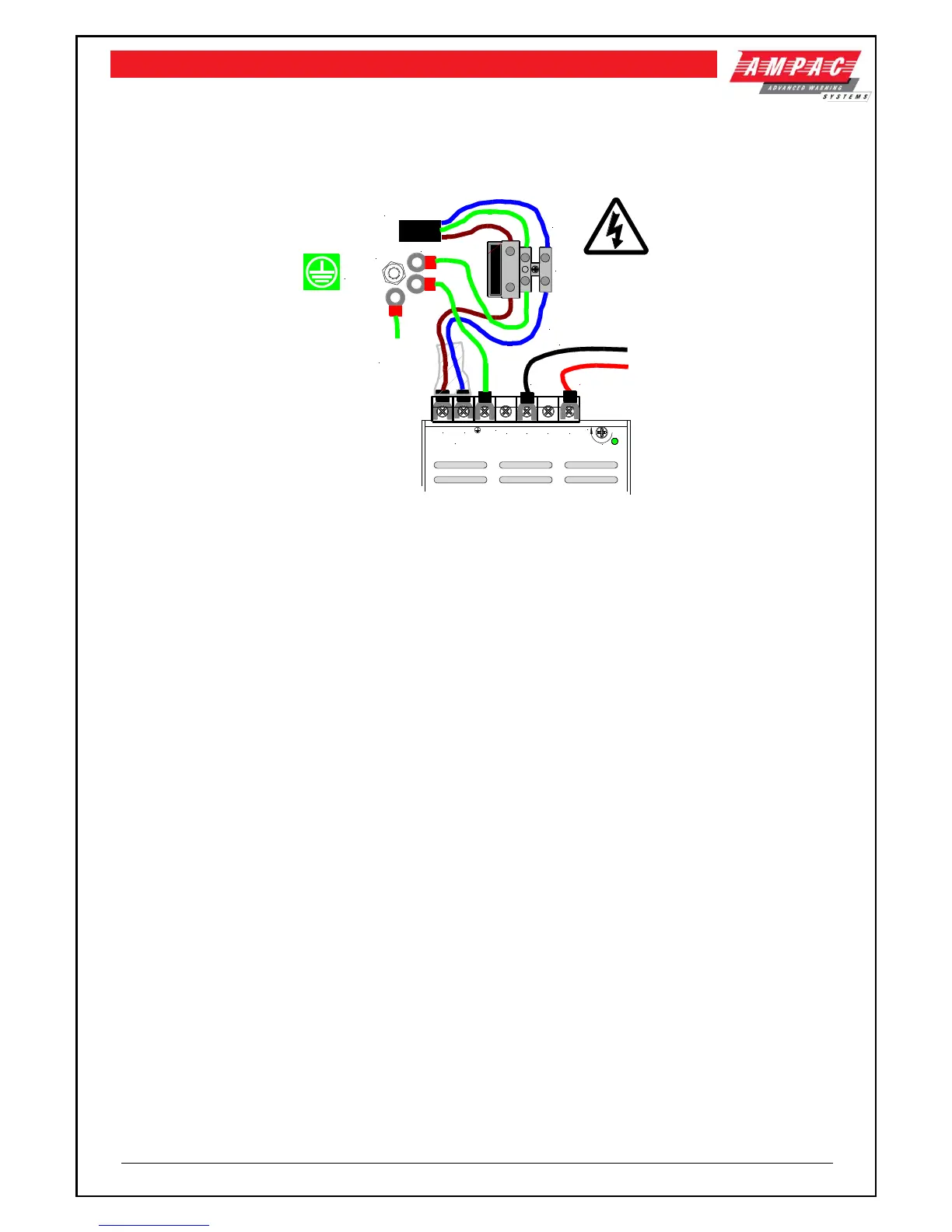

4.8.2 Connecting the Mains Power to the Power Supply
5 AMP Power Supply
Output Voltage: is set to 27.4 Volts.
Mains cable should be no less than 0.75mm
POWER CABLE
BROWN (ACTIVE)
BLUE
(NEUTRAL)
TO EARTH
TERMINAL
DC 27V TO PANEL
EARTH
(GREEN)
FUSE BLOCK
V ADJ
L(AC) N(AC)
-V -V
+V
+V
+
(AC)
BLACK
RED
Fuse is under this cover
TO FRONT
DOOR EARTH
TERMINALS
NOTE THE ORIENTATION
OF THE FUSE BLOCK IS
DIFFERENT
FOR THE SP1 AND SP8
Figure 9: Mains Power Connection to the 5 AMP Power Supply
