Amphenol SLPPC70BSB1 - Step 3: Put the Cable Conductor into the Lug; Step 4: Crimping the Lug as Shown

Step 3: Put the cable conductor into the lug
步骤
3
：将线材导体部分插入线耳中

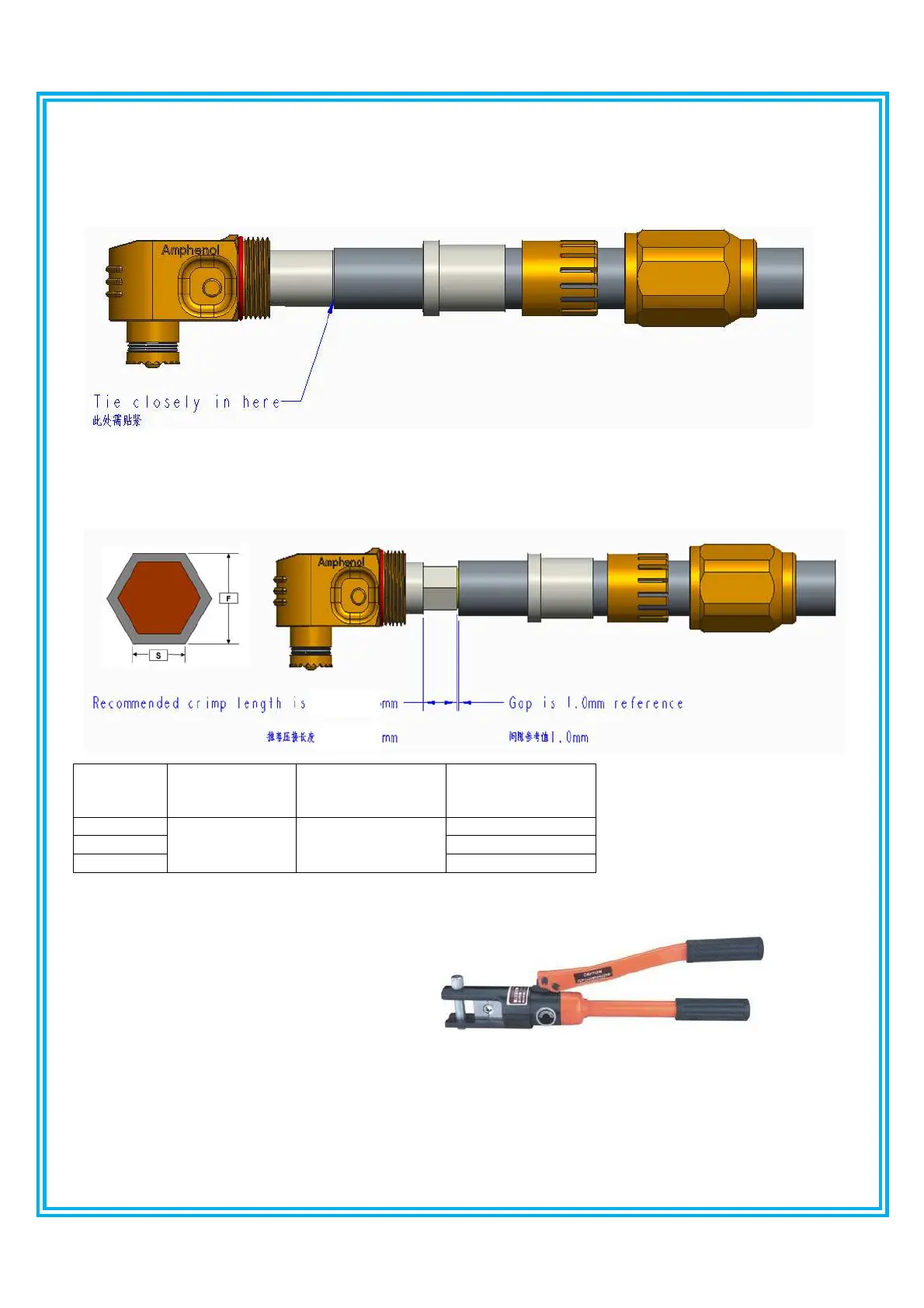

Step 4: Crimping the lug as shown
步骤
4
：如图所示将线耳压接到线材导体部分
Cable size
线材尺寸
Recommended
Length of Side S
推荐压接边长度S
Recommended
Dist across Flats F
推荐压接平面距离F
Cable pullout force
线材压接拔出力
50 mm
2
8.25mm 14.30mm
1500N Min.
70 mm
2
1700N Min.
85 mm
2
2000N Min.
Recommended crimping tool: Manual hydraulic crimping
推荐压接工具：手动液压压接钳
Die: 95 mm
2
压模
：
95 mm
2
10.0
±
0.5
10.0
±
0.5
