10
Note: The Meter goes into manual mode when Low Pass Filter mode is
enabled. Auto-range mode is not available for Low Pass Filter option.
Measuring Frequency / Duty Cycle
To avoid personal injury or damage to the Meter, do not apply
voltage higher than 1000V.
1. Frequency / Duty Cycle function
Step 1: Turn the rotary switch to Hz % position. Use SELECT button for Hz
or duty cycle measurement.

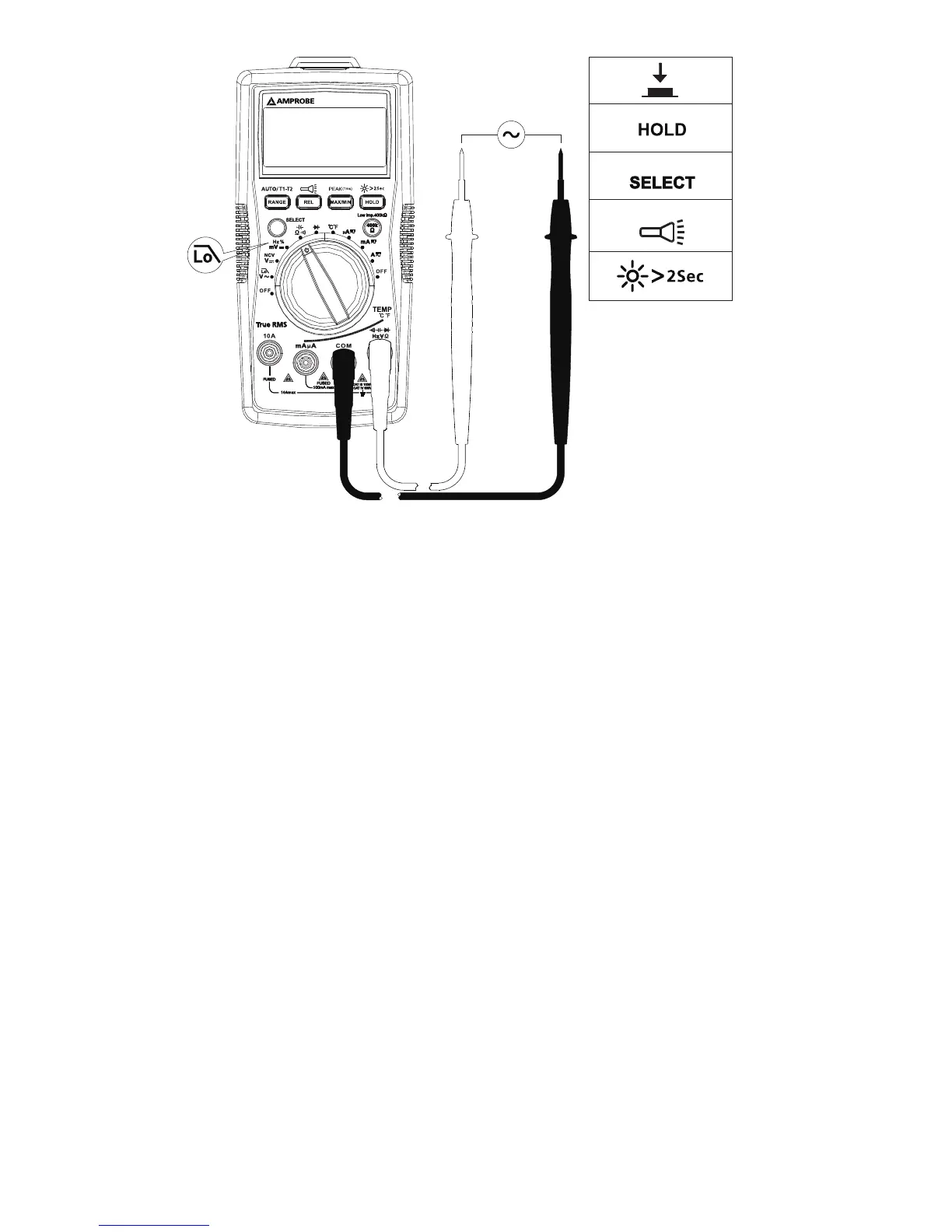

Step 2: Connect test leads to the circuit. Connecting diagram see below.
