AMSTRAD CPC464 - Rear Panel Connection to the CPC 464

Appendix V:

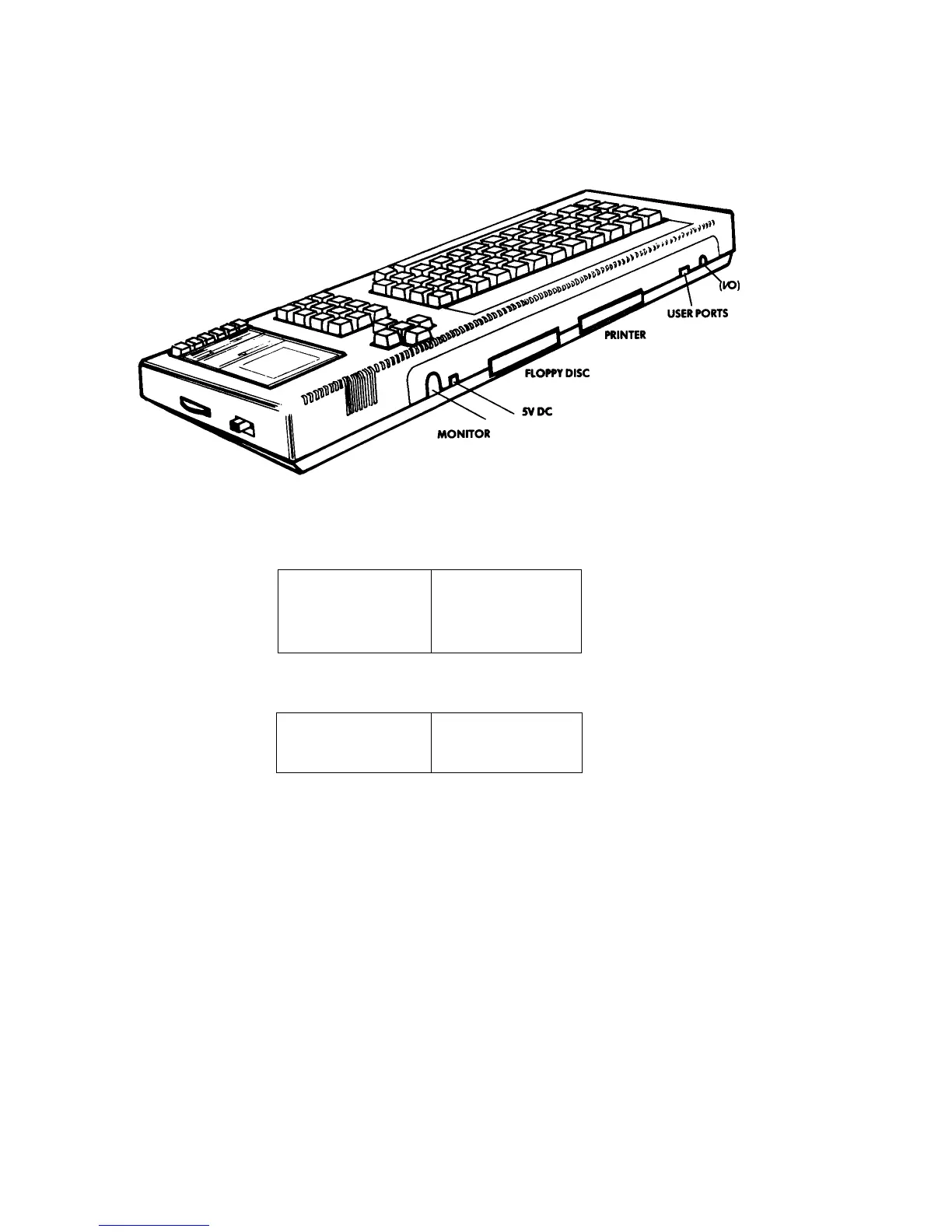

Rear panel connection to the CPC 464
PADDLE PORT CONNECTOR (9 PIN D)
VIEWED FROM REAR
PIN 1 UP PIN 6 FIRE 2
PIN 2 DOWN PIN 7 FIRE 1
PIN 3 LEFT PIN 8 COMMON
PIN 4 RIGHT PIN 9 COM 2
PIN 5 SPARE
VIDEO OUTPUT CONNECTOR (6 PIN DIN)
VIEWED FROM REAR
PIN 1 RED PIN 4 SYNC
PIN 2 GREEN PIN 5 GND
PIN 3 BLUE PIN 6 LUM
