MXA-MP/MPL Modero X Series® Multi Preview and Multi-Preview Live
MXA-MP
Overview
The Modero X Series
®
Multi Preview (FG5968-20) is a touch panel accessory that displays up to 10 preview
images on Modero X Series Touch Panels when used in conjunction with an Enova DVX All-In-One
Presentation Switcher (FIG. 1). The MXA-MP accepts digital video input signals over HDMI and converts
them to JPEG preview images for display on Modero X Series touch panels. The MXA-MP makes it easy for
users to make quick identification of what is currently being displayed by up to 10 source devices.
Common Applications
Use the MXA-MP to preview a snapshot of the content from a source device before switching to that source.
Features
Updates all 10 preview images sequentially or one image continuously.
Converts HDMI sources into video snapshots.
Easily add to existing implementations that use an Enova DGX or Enova DVX with a Modero X
Series Touch Panel.

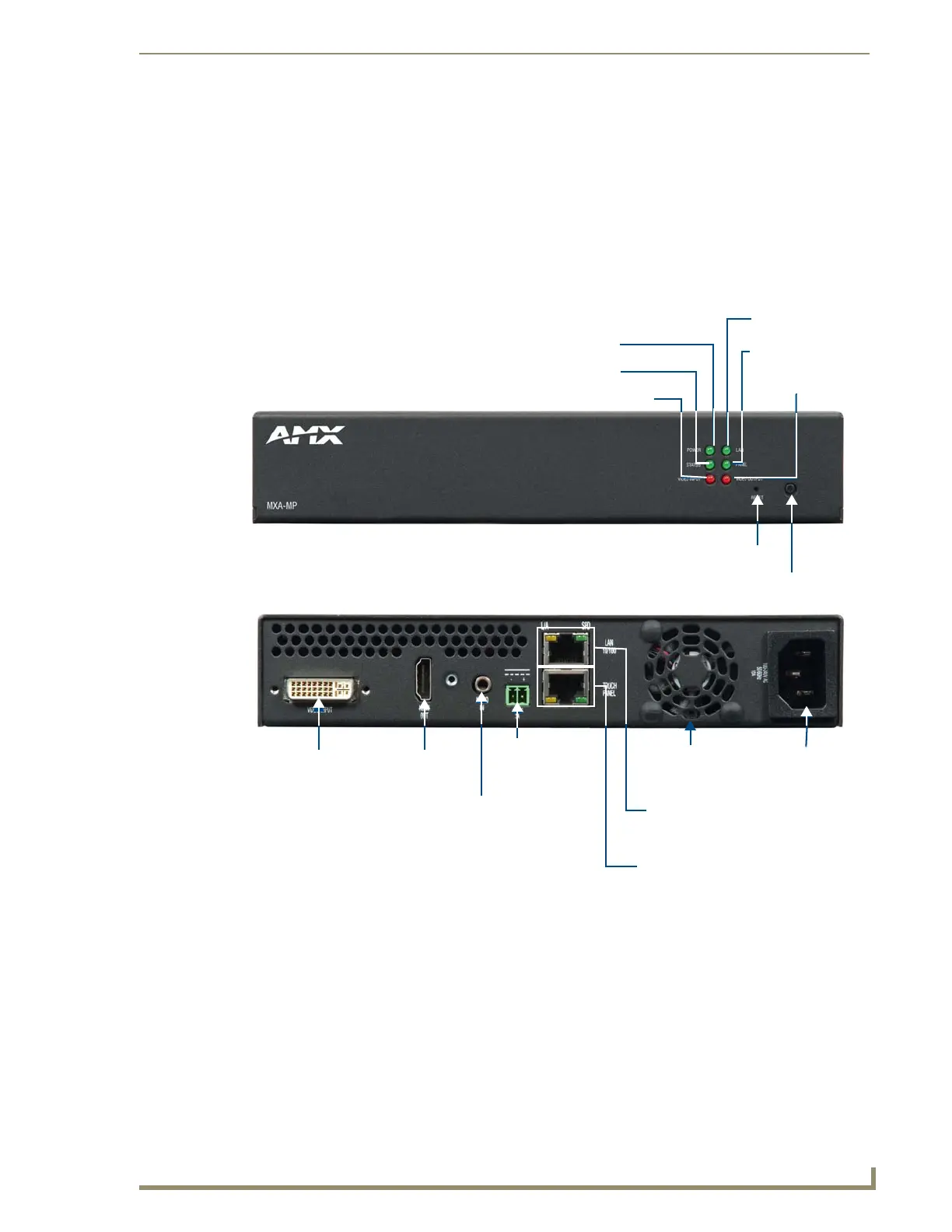

FIG. 1 MXA-MP
Video
Input
HDMI
Out
Audio
In
2-pin
Connector
Output
Ethernet
In
Ethernet
Out (to
Touch Panel)
Ventilation
Fan
Power
Input
Power
Status
Video Input
LAN
Panel
Video Output
Reset
Factory Reset
Front
Rear
(not used)
To Next Page
