Modero X Series® G5 Touch Panels

MXD/T-701 7" Modero X Series® G5 Touch Panels

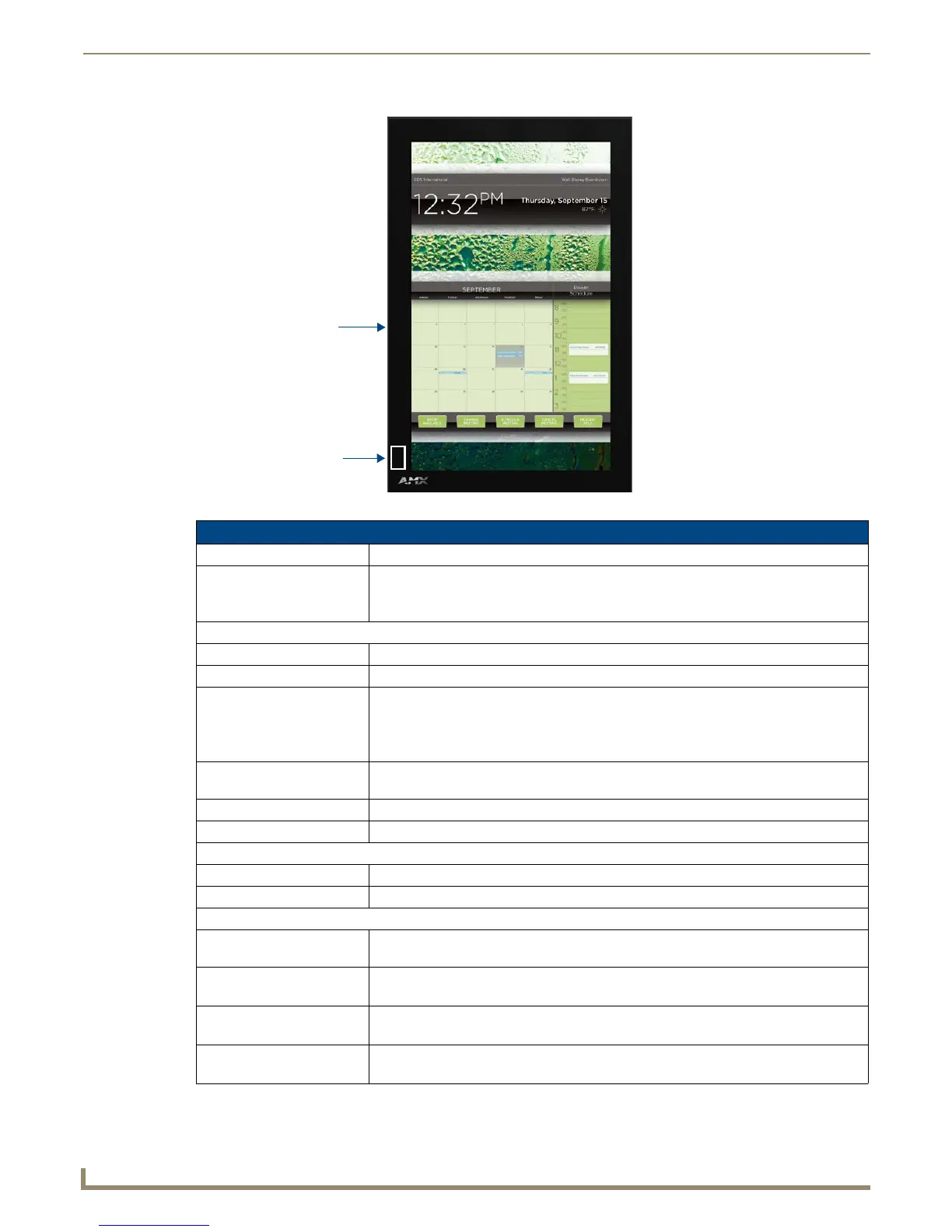

FIG. 5 MXD-701 (Portrait Wall Mount)

MXD-701 Specifications

Power Requirements: PoE (Power over Ethernet), 802.3af, class 3

Power Consumption: • Full-On: 11.5 W maximum

• Standby: 5.8 W

• Shutdown: 1 W

Front Panel Components:

NFC Transceiver: Antenna and transceiver for Near Field Communications device detection and interaction.

Light Sensor: Photosensitive light detector for automatic adjustment of the panel brightness.

Motion Sensor: Proximity detector to wake the panel when it is approached.

• Typical Range: 1 foot (30.48 cm)

• Maximum Range: 3 feet (91.44 cm)

• Range width: 10 degrees

Sleep/Settings Button: Single button on edge of panel for placing panel in sleep mode, for powering off the panel,

and for accessing the Settings app.

Microphone: -42dB ± 3dB sensitivity FET microphone

Speakers: 4 ohm, 2 Watt, 300Hz cutoff frequency

Rear Panel Components:

USB Port: USB connector used for keyboard and mouse connections, or for firmware uploads.

Ethernet 10/100 Port: 10/100 Base-T RJ-45 connector for Ethernet connectivity and PoE.

Touch Panel Display:

Display Type: TFT Active Matrix Color LCD with Fringe Field Switching (FFS) - Wide viewing angle

technology

Display Size: • Landscape: 7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm) diagonal

• Portrait: 4.8" x 7.3" (122 mm x 186 mm), 8.8" (222 mm) diagonal

Viewable Area

(W x H):

• Landscape: 6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm) diagonal

• Portrait: 3.54" x 6.05" (90 mm x 154 mm), 7.0" (178 mm) diagonal

Viewing Angle: • Vertical: ± 89°

• Horizontal: ± 89°

Sleep/Settings Button

NFC Sensor
