Wiring and Installation
11
PRO-DP8 Decor 8-Button Wall Panel
Phasing
If you experience erratic ramping with your lights, it is possible that the dimmer control card could
be wired out of phase. Check and correct power wiring and repeat the Preset test steps (see
Testing).
If the green PROlink status LED stays on, or nothing happens when the Presets are selected, check
the Pack number value on the dimmer control card. Set the dimmer control cards to different Pack
numbers by using the PROlink DIP switch (SW2) to set the Pack number. Refer to the Assigning
Pack numbers on the dimmer control cards section on page 7 for details.
Mounting Procedures
FIG. 3 shows the podium mounting dimensions for the PRO-DP8. AMX recommends mounting the
PRO-DP8 in a standard one-gang wallbox with a minimum internal clearance of 2-5/8" x 1-3/4" x
1-5/8" (HWD).
1. Use the cutout dimension shown in FIG. 3 to cutout the install surface for the PRO-DP8.
2. Confirm that the terminal end of the PROlink cable is disconnected, and not receiving power.
3. Gently remove the bezel from the wallplate.
4. Plug in the panel.
5. Place the panel in the wallbox; align the screw holes with the mounting holes on the panel.
Fasten the panel to the wallbox using the screws supplied.
6. Install the overlay.
7. Snap the wallplate back on the bezel.

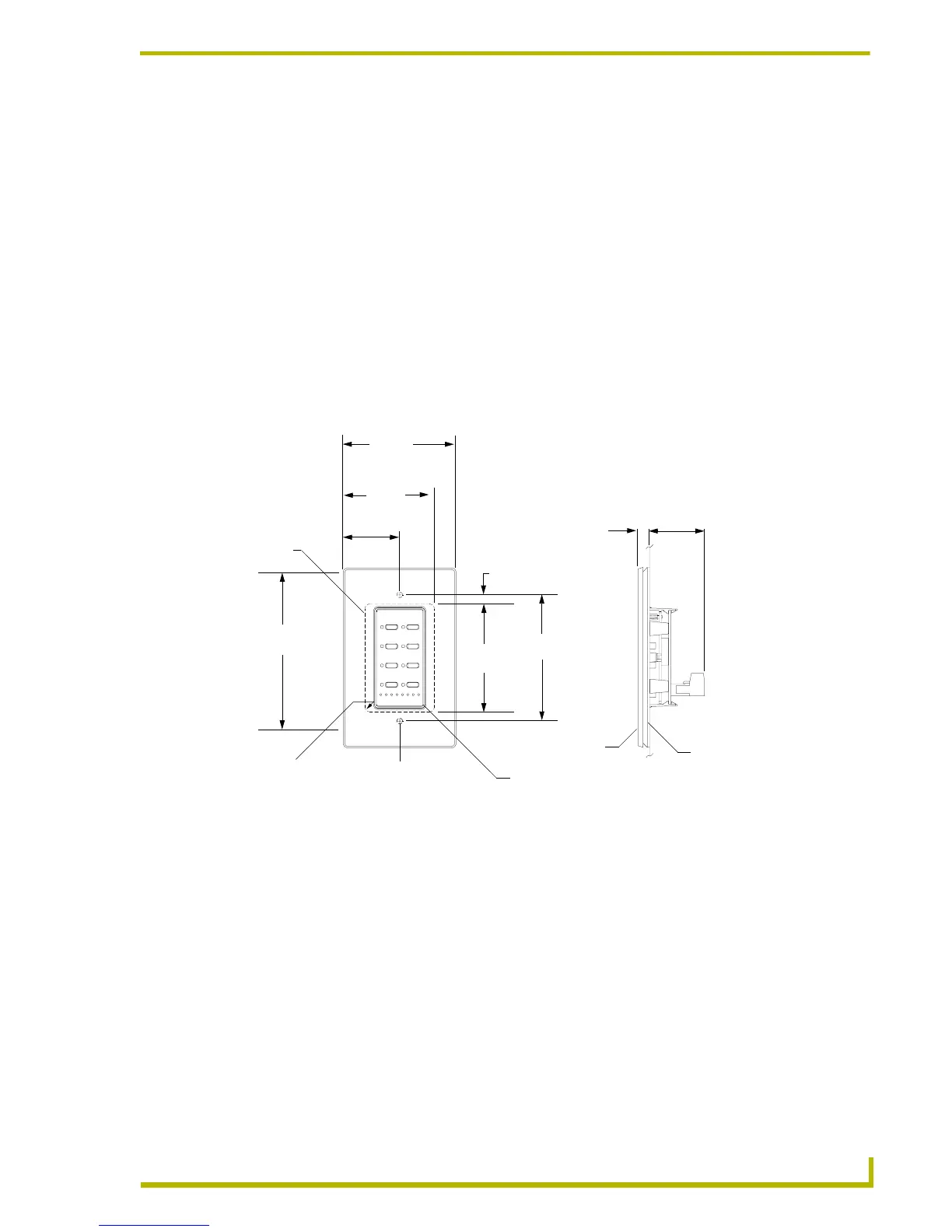

FIG. 3 PRO-DP8 podium mounting dimensions
2.80"
(71.12 mm)
3.281"
(83.34 mm)
4.68"
