AMX PRO-DP8 DECOR PROLINK FLUSH MOUNT KEYPAD PANEL User Manual

Wiring and Installation
13
PRO-DP8 Decor 8-Button Wall Panel
Sample Wiring Diagram

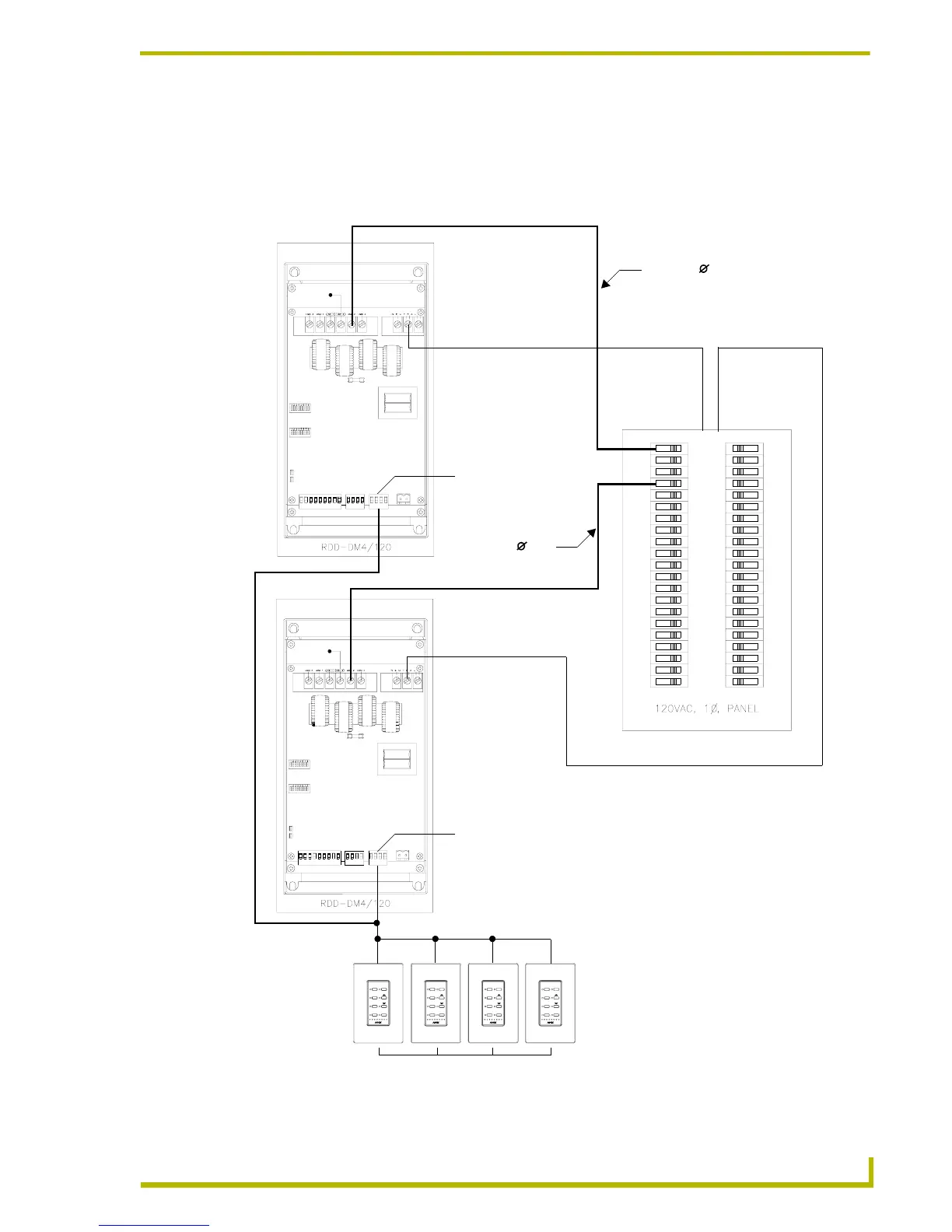

FIG. 4 shows a sample equipment wiring diagram using two Radia Lighting Dimmers and three
PRO-DP8 wall panels. This illustration shows the two packs wired to two 120 VAC single-phase
20A breakers.
FIG. 4 Sample equipment wiring diagram using two Radia dimmer packs
OFF4
4123 566+P
3
SELECT1
2
1 23 5466+ P
4
3
OFF
1
SELECT
2
1 23 5466+ P
4
3
OFF
1
SELECT
2
1 23 5466+ P
4
3
OFF
1
SELECT
2
neutral
PROlink connector
pack 1
pack 2
PROlink cable
PRO-DP8s
Circuit Breaker Panel
A
B
C
A
B
C
PROlink connector
(orange)
(orange)
neutral
120 VAC 1 20A
breaker A
120 VAC 1 20A
breaker A
