PRO-DP8 Decor 8-Button Wall Panel
PRO-DP8 Overlay

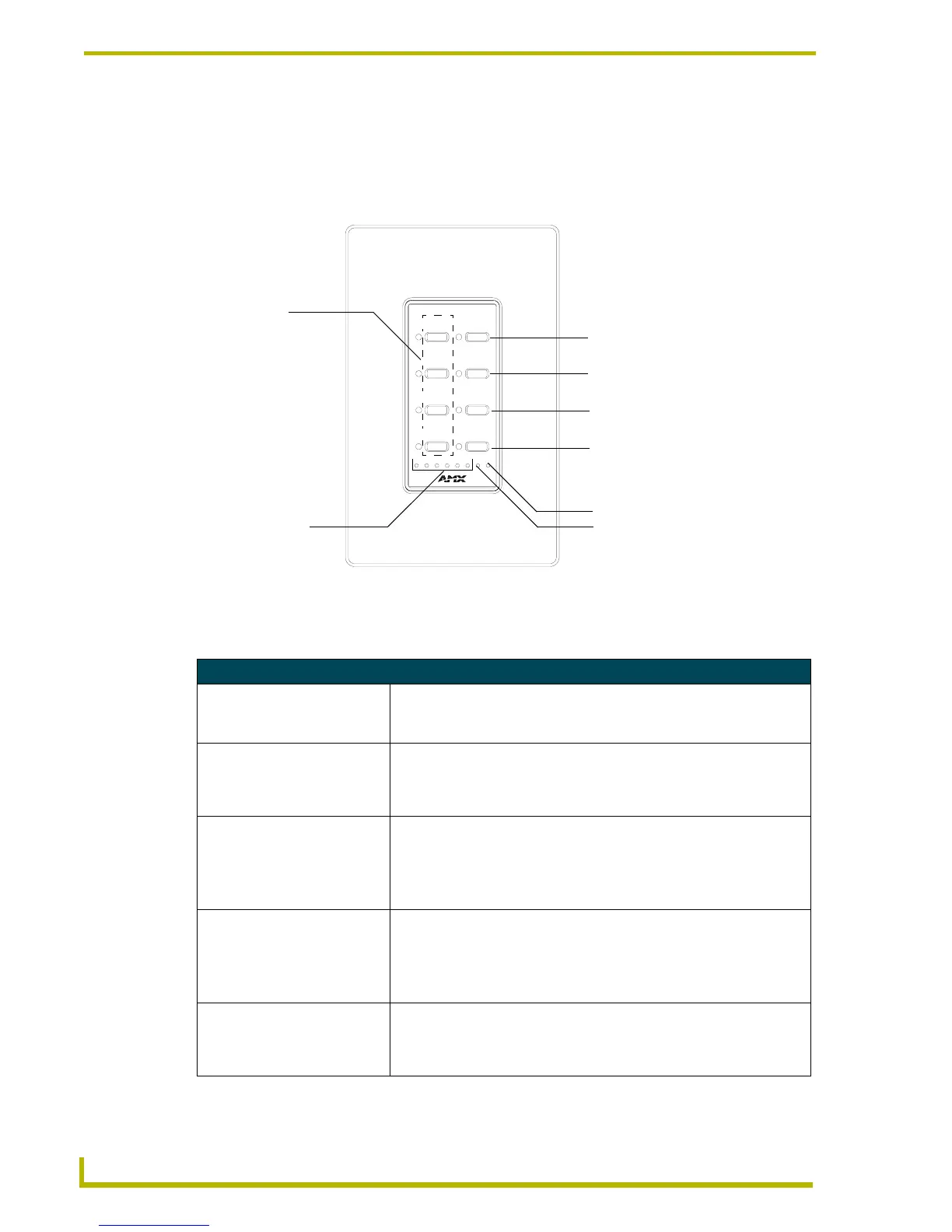

FIG. 1 shows a standard PRO-DP8 overlay. There are no numbers or labels screened on a standard
blank overlay. The buttons and LED labels are shown here to describe their orientation. Custom
engraved overlays are available on request.
The following table describes the pushbuttons and LEDs and their associated functions:
FIG. 1 Standard PRO-DP8 overlay
PRO-DP8 Pushbuttons and LEDs
Pushbuttons (1-8):
1-4 (Presets buttons) Once the panel has been programmed, press these buttons to recall pro-
grammed presets.
5 (Select) Press to choose from available channels (1-12 or 7-18), depending on the
setting of DIP switches 4 and 5.
See the Using Switches 4 and 5 to Specify Which Pack(s) to
Control section on page 16 for details.
6 (Up) Ramps up the light level and Presets for the selected channel, or recalls
Preset 6, depending on the setting of DIP switch 7.
See the Using Switch 7 to Enable Either Preset Recall mode, or Zone
Select/Preset Ramping section on page 18 for details.
Press the Up and Down arrows simultaneously to enter Program mode.
7 (Down) Ramps down the light level and Presets for the selected channel, or recalls
Preset 6, depending on the setting of DIP switch 7.
See the Using Switch 7 to Enable Either Preset Recall mode, or Zone
Select/Preset Ramping section on page 18 for details.
Press the Up and Down arrows simultaneously to enter Program mode.
8 (Off) Turns off a selected preset. The off button can be offset via the DIP for sys-
tems with multiple panels.
See the Using Switch 6 to Offset the Off Button (Pushbutton 8) section on
page 17 for more information.
OFF4
4123 566+P
3
SELECT
1
2
Select
Up arrow
Down arrow
Off
Channel LEDs (1-6)
Additional channel (6+) LED
Program (P) LED
Presets 1-4
1
2
3
4
5
6
7
8
