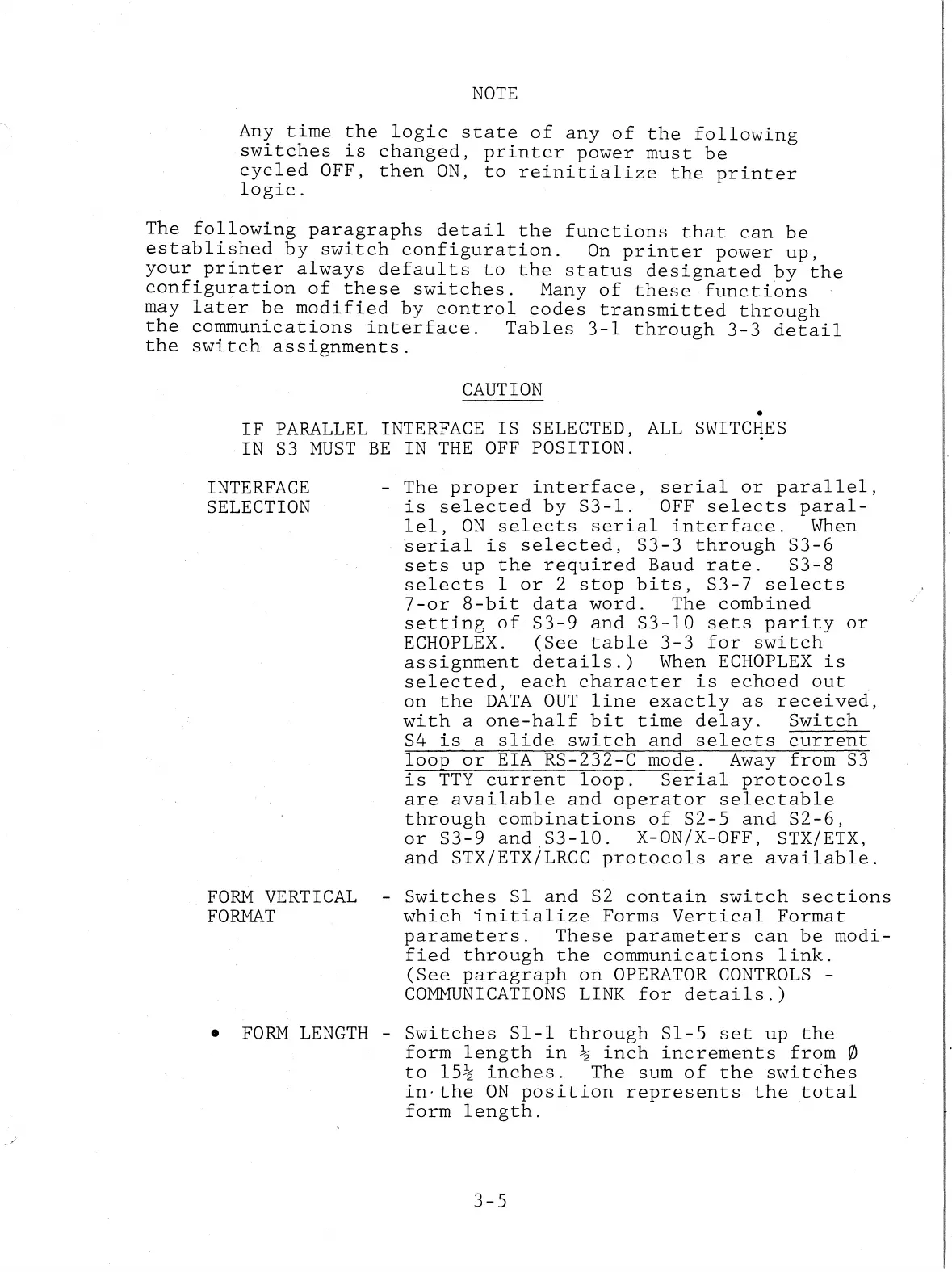

Anadex DP-9000 User Manual

NOTE
Any time the logic state of any of the following
switches is changed, printer power must be
cycled OFF, then ON, to reinitialize the printer
logic.
The following paragraphs detail the functions that can be
established by switch configuration. On printer power up,
your printer always defaults to the status designated py the
configuration of these switches. Many of these functions
may later be modified by control codes transmitted through
the communications interface. Tables 3-1 through 3-3 detail
the switch assignments.
CAUTION
•
IF PARALLEL INTERFACE IS SELECTED, ALL SWITCHES
IN 83 MUST BE IN THE OFF POSITION.
INTERFACE
SELECTION
FORM VERTICAL
FORlv1AT
- The proper interface, serial or parallel,
is selected by S3-1. OFF selects paral-
lel, ON selects serial interface. When
serial is selected, S3-3 through S3-6
sets up the required Baud rate. S3-8
selects 1 or 2 stop bits, S3-7 selects
7-or 8-bit data word. The combined
setting of S3-9 and S3-10 sets parity or
ECHOPLEX. (See table 3-3 for switch
assignment details.) When ECHOPLEX is
selected, each character is echoed out
on the DATA OUT line exactly as received,
with a one-half bit time delay. Switch
S4 is a slide switch and selects current
loop or EIA RS-232-C mode. Away from S3
is TTY current loop. Serial protocols
are available and operator selectable
through combinations of S2-5 and S2-6,
or S3-9 and S3-10. X-ON/X-OFF, STX/ETX,
and STX/ETXiLRCC protocols are available.
- Switches Sl and S2 contain switch sections
which ~nitialize Forms Vertical Format
parameters. These parameters can be modi-
fied through the communications link.
(See paragraph on OPERATOR CONTROLS -
COMMUNICATIONS LINK for details.)
• FORM LENGTH - Switches Sl-l through Sl-5 set up the
form length in ~ inch increments from 0
to 15~ inches. The sum of the switches
in- the ON position represents the ,total
form length.
3-5
