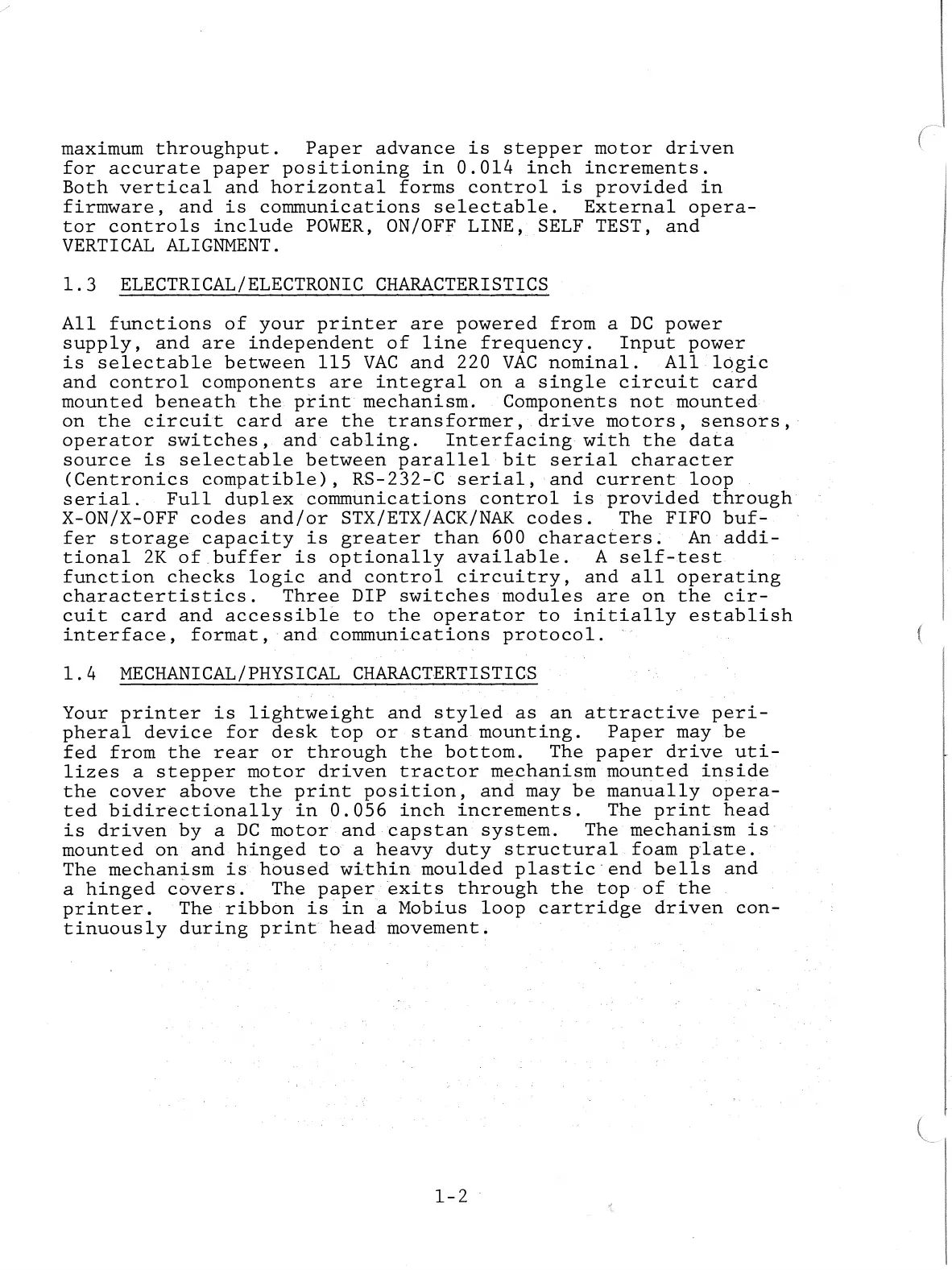

maximum throughput. Paper advance is stepper motor driven
for accurate paper positioning in 0.014 inch increments.
Both vertical and horizontal forms control is provided in
firmware, and is communications selectable. External opera-
tor controls include POWER, ON/OFF LINE, SELF TEST, and
VERTICAL ALIGNMENT.
1.3 ELECTRICAL/ELECTRONIC CHARACTERISTICS
All functions of your printer are powered from a DC power
supply, and are independent of line frequency. Input power
is selectable between 115 VAC and 220 VAC nominal. All lqgic
and control components are integral on a single circuit card
mounted beneath the print' mechanism'. Components not mount·e'd:
on the circu~t card are the transformer, drive motors, sensors,
operator switches ,and' cab:ling. Interfacing- with the data
source is selectable between parallel bit serial character
(Centronics compatible), RS-232-'C serial, and current loop
serial. Full duplex communications control is provided through'
X-ON/X-OFF codes and/or STX/ETX/ACK/NAK codes. The FIFO buf~
fer storage' capacity is greater than 600 characters. An' addi-
tional 2K of buffer is optionally available. A self-test
function checks logic and control circuitry, and all operating
charactertistics. Three DIP switches modules are on the cir-
cuit card and accessible to the operator to initially establish
interface, format,' and communi.cations protocol.
1.4 MECHANICAL/PHYSICAL CHARACT·ERTISTIC;S
Your printer is lightweight and styled as an attractive, peri-
pheral device for desktop or stand mounting. Paper maybe
fed from the rear or through the bottom. The paper drive uti-
lizes a stepper motor driven tractor m~chanism mou~ted inside
the cover above the print position, and may be manually opera-
ted bidirectionally in 0.056 inch increments. The print head
is driven by a DC motor and capstan system. The mechanism is
mounted on and hinged to" a heavy duty structural foam p'lat,e.
The mechanism is housed wi-thin, moulded plas,tic' end bells and
a hinged covers. The paper ~xits through the top,ofthe
printer. The ribbon is'in a Mobius loop cartridge driven con-
tinuously during print head movement~
1-2
