Anadex DP-9000 User Manual

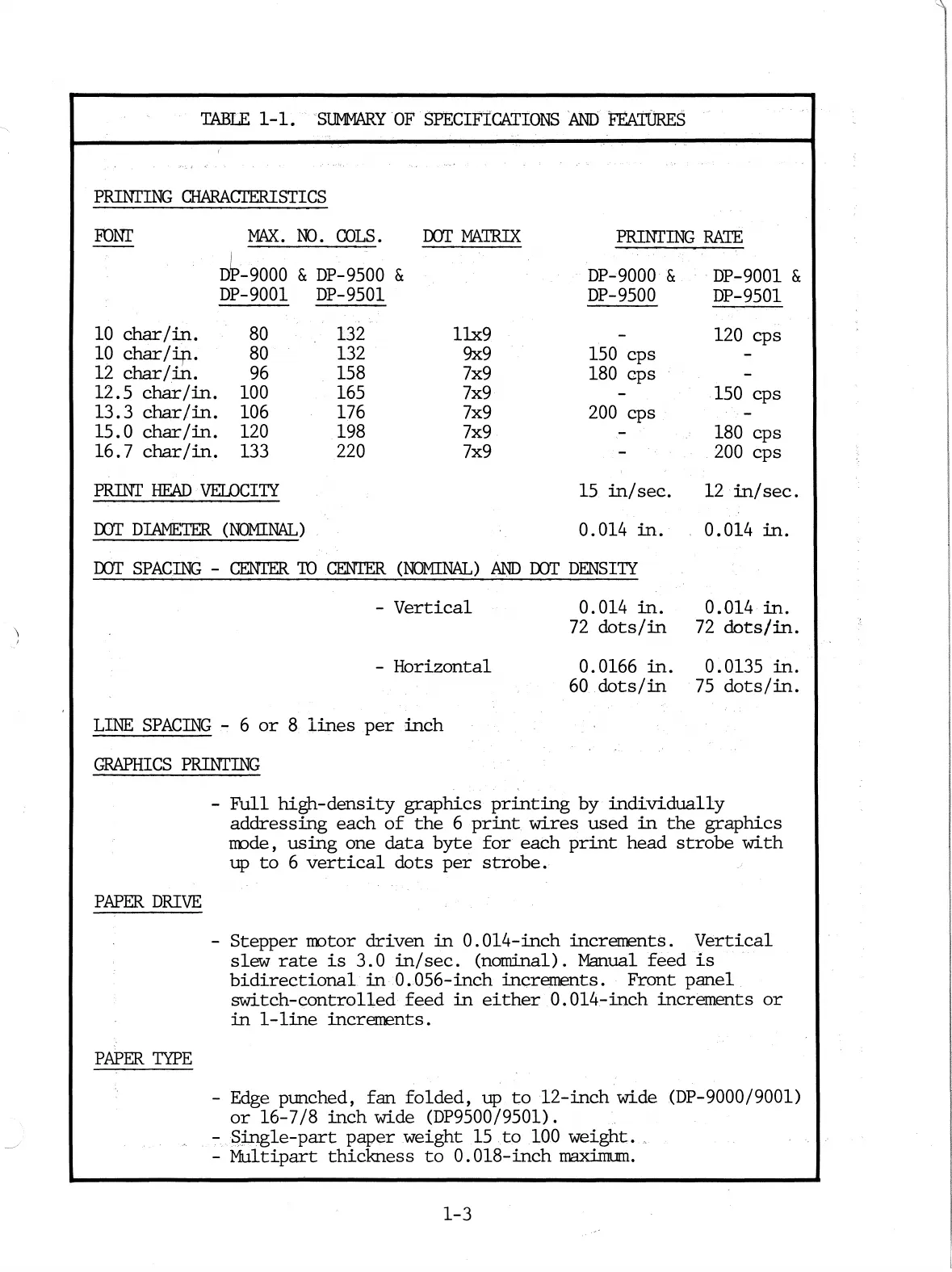

TABLE 1-1. SUMMARY· OF SPECIFICATIONS ·ANDFEA'tOREs
PRINTING CHARACTERISTICS
FONT
MAX. NO. COLS. OOT :MATRIX
PRINTING RATE
cl>-9000 & DP-9500 & DP~9000&
DP-900l &
DP-9001
DP-9S01
DP-9S00
DP-9S01
10 char/in.
80
132
1lx9
120 cps
10 char/ip.
80 132
9x9
150 cps
12 char/in.
96
158
7x9
180 cps
12.5
chaT/in. 100
165
7x9
150 cps
13.3
char/in.
106 176
7x9
200 cps
15.0 char
lin.
120
198
7x9
180 cps
16.7
char/in. 133
220
7x9
200 cps
PRINT HEAD·· VELOCITY
15 in/sec.
12 in/sec.
OOT DIAlYJETER. (NOMINAL)
0.014 in.
0.014 in.
OOT SPACING - CENTER. 10 CENTER. (NOMINAL) AND OOT DENSITY
- Vertical
- Horizontal
LINE SPACING~ 6 or 8 lines .per· inch
GRAPHICS PRINTING
0.014 in.
72 dots/in
0.0166 in.
60 dots/in
0.014 in.
72 dots/in.
0.0135 in.
75 dots/in.
- Full high-density graphics printing by·· individually
addressing each of the 6 print. wires used in the graphics
node, using one data byte for each print head strobe with
up to 6 vertical dots per strobe.
PAPER DRIVE
- Stepper notor driven in O. 014-inch increments. Vertical
slew rate is 3.0 in/sec. (nominal). Manual feed is
bidirectional in·.·0.056-inch increments. Front panel
switch-controlled feed in either 0.014-inch increments or
in I-line increments.
PAPER TYPE
- Edge punched, fan folded, up to12-inch wide (DP-9000/900l)
or 16-7/8 inch wide (DP9500/950l).
-.~Jllgle-part paperweight15.tolOO weight.
-
Multipart thickness to O. 018-inch rnaxirrn..nn.
1-3
