EVAL-AD9081/EVAL-AD9082/EVAL-AD9986/EVAL-AD9988 User Guide UG-1829
Rev. 0 | Page 17 of 26
SETTING UP THE AD9081, AD9082, AD9986, OR
AD9988 IN FULL BANDWIDTH MODE
Set up the evaluation board as explained in the Evaluation
Board Hardware Setup section. Open the board view. This
section uses the evaluation board in its default configuration with
the HMC7044 clock enabled (C3D and C5D are placed, and
C4D and C6D are DNI). See Figure 18 and Figure 19 for additional
details.
In the QUICK CONFIGURATION pane, select the
DAC@12.0GHz, ADC@6.0GHz, JESD204C (4D2A ADC Full
Bandwidth) from the Select Use Case pulldown menu (see
Figure 22), and click Apply.
24165-221

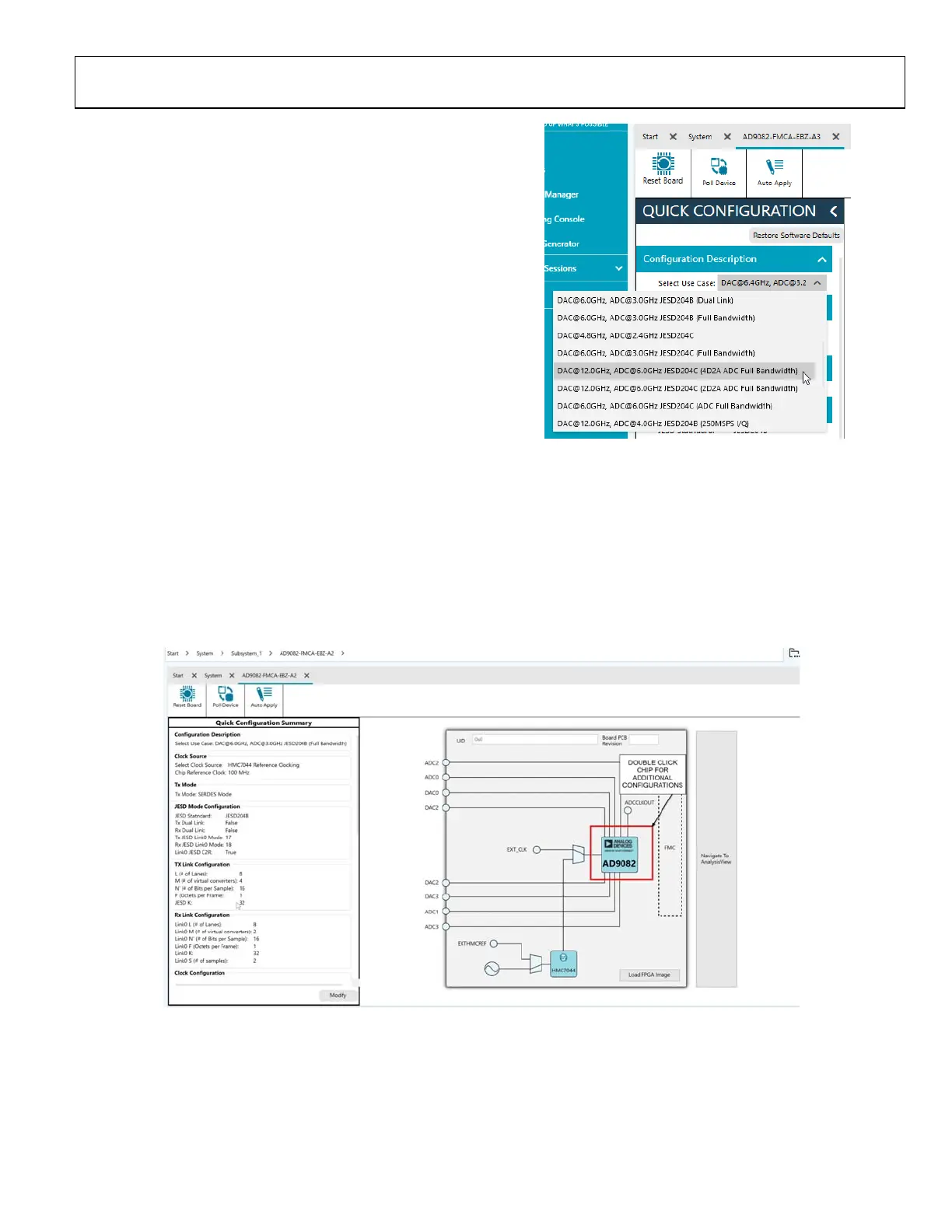

Figure 22. Selecting Full Bandwidth (JESD204C) Mode in the Board View
After clicking Apply, the Quick Configuration Summary pane
displays. Double-click the AD9081 or AD9082 chip for further
analysis. Figure 23 shows the AD9082 chip as an example.
A block diagram that allows transmitter, receiver, and
programmable filter configurations loads, as shown in Figure 24.
Click Proceed to Analysis. In addition, see the ADC Analysis
and DAC Output Setup section for additional details.
24165-018
Figure 23. Navigating to Chip View for Additional Controls
