UG-1829 EVAL-AD9081/EVAL-AD9082/EVAL-AD9986/EVAL-AD9988 User Guide
Rev. 0 | Page 20 of 26
DAC WAVEFORM GENERATION USING
DPGDownloaderLITE SOFTWARE
To generate a waveform using the DPGDownloaderLite software,
open DPGDownloaderLite (Start > All Programs > Analog
Devices > DPGDownloaderLite) within the ACE software and
ensure the evaluation board is displaying the product number
matching the hardware used. Ensure AD9081, AD9082, AD9986,
or AD9988 is selected under Eval Board (AD9082 is shown in
Figure 26).
Next, select Single Tone from Add Generated Waveform (see
Figure 26).
24165-024

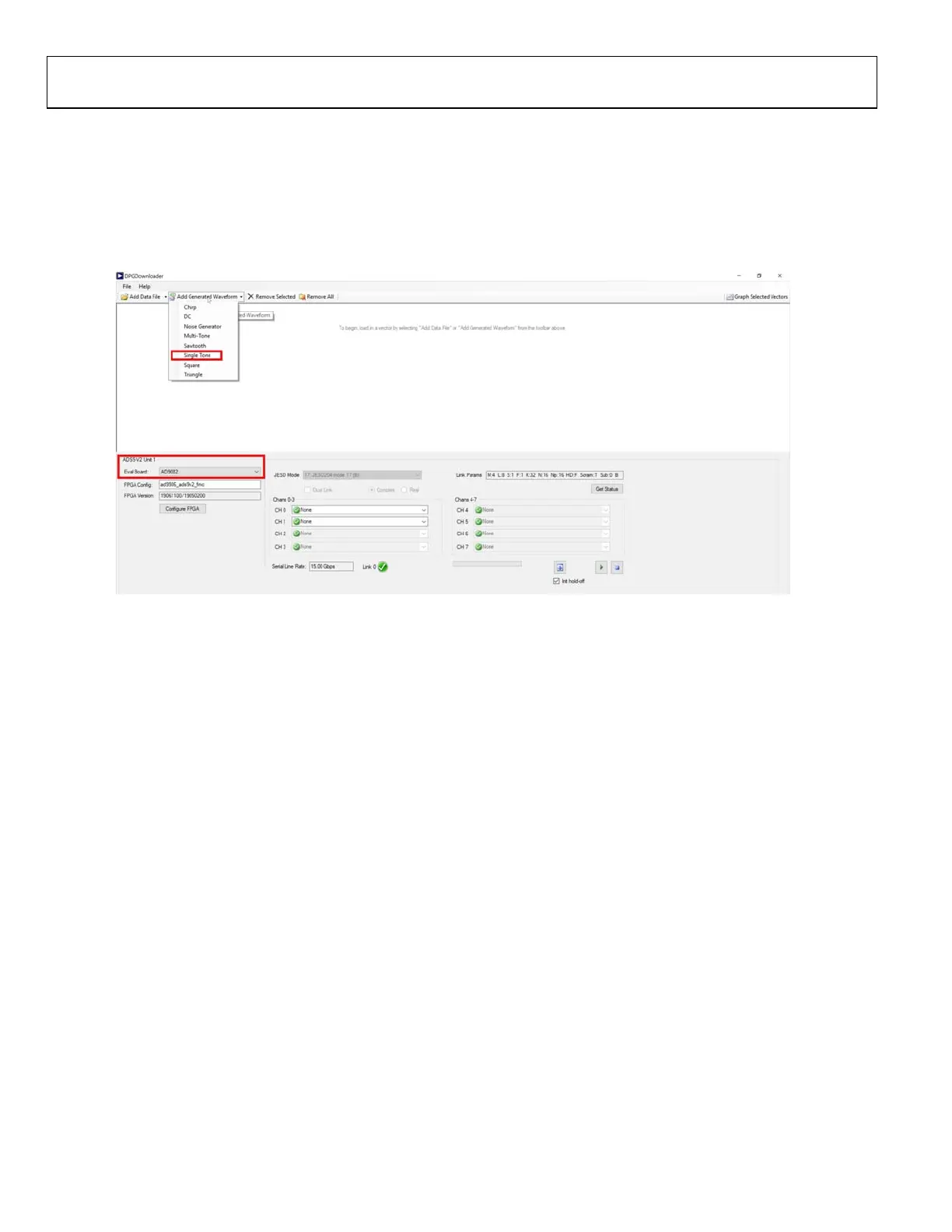

Figure 26. Single-Tone Generation

Analog Devices EVAL-AD9081 Specifications

General

Supported Device	AD9081
Operating Temperature Range	-40°C to +85°C
Package	BGA
Type	Evaluation Board
Device Type	Transceiver
Purpose	Evaluation
Frequency Range	DC to 6 GHz
ADC Resolution	12 bits
DAC Resolution	16 bit
Interface	JESD204B
Power Supply	1.8 V, 3.3 V
Sampling Rate	12 GSPS
