EVALUATION BOARD OVERVIEW
BOARD MODELS
The different board models are all listed in Table 1.
Certain early revisions of the evaluation boards shipped with a
122.88 MHz on-board crystal oscillator. The ACE plugin is
designed to detect the evaluation board and make it function
appropriately.
EVALUATION BOARD CONNECTION OVERVIEW
Figure 5 shows the basic hardware setup required to evaluate
the AD9081, AD9082, AD9986, or AD9988. Note that the
AD9082-FMCA-EBZ is shown in Figure 5 as an example. This
setup uses the on-board clock to manage the clocks for the
AD9082 as well as the FPGA for proper functioning of the
transceivers.
Table 1. MxFE™ Evaluation Board Hardware Summary
Evaluation Board
Model Number Devices Supported
1
Power Delivery
Analog Front-
End Balun
Clock Input
Network
On-Board Crystal
Oscillator (MHz)
AD9081-FMCA-EBZ AD9081/AD9209/AD9177
Via a FPGA mezzanine card
(FMC) using the μModule
and a low dropout (LDO)
regulator
BALH-0009SMG SMP + BAL-0416 100
AD9082-FMCA-EBZ AD9082/AD9207
Via a FMC connector using
the μModule and a LDO
regulator
BALH-0009SMG SMP + BAL-0416 100
AD9986-FMCB-EBZ AD9986
An external 12 V using the
ADP5056 and a LDO
regulator
TCM1-83X/
LDB184G6
SMA + NCR2-123+ 122.88
AD9988-FMCB-EBZ AD9988
An external 12 V using the
ADP5056 and a LDO
regulator
TCM1-83X/
LDB184G6
SMA + NCR2-123+ 122.88
1
The AD9207, AD9209, and AD9177 do not have individual evaluation boards. The ACE plugin has specific modes that can be used within the AD9081-FMCA-EBZ for
either the AD9209 or AD9177 and within the AD9082-FMCA-EBZ for the AD9207.
AD9082-FMCA-EBZ
ADS9-V2EBZ
SMA
CABLES
ETHERNET CABLE
MICROZED BOARD
POWER
CABLE
USB 3.0
TYPE B
24165-003

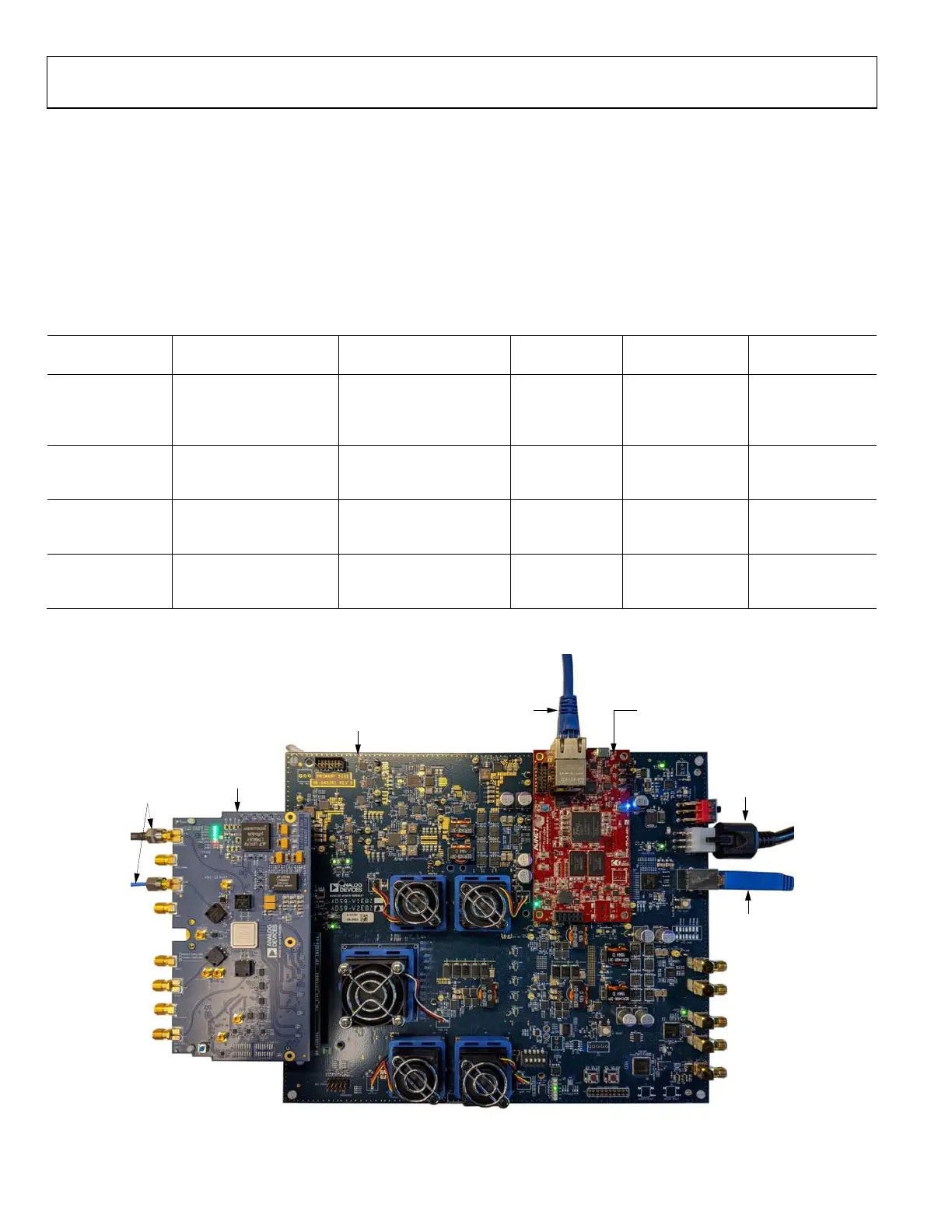

Figure 5. Bench Setup for the Evaluation of the AD9081, AD9082, AD9986, or AD9988
