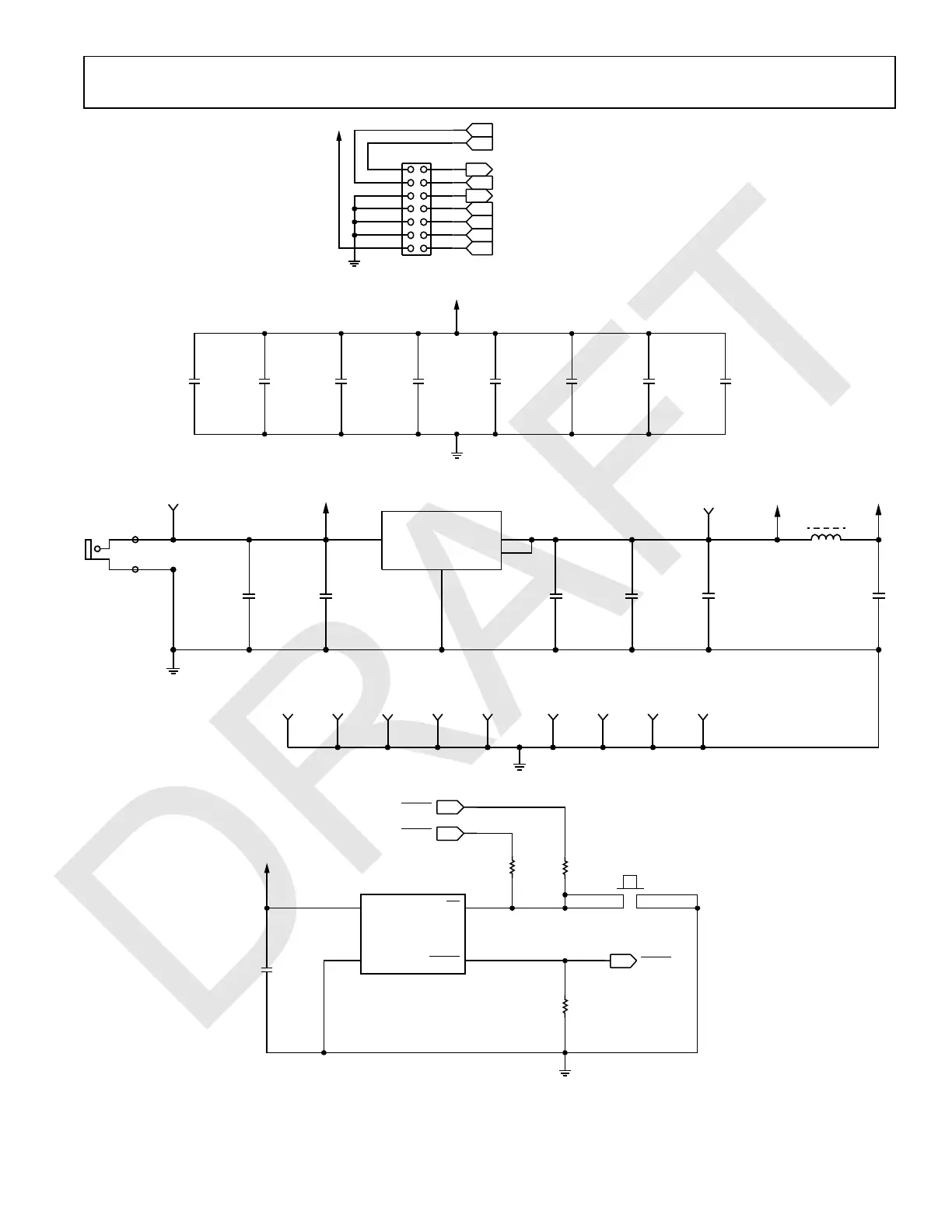

Figure 96. Microphone Canvas Header Schematic
Figure 97. Plane Stitching Bypass Capacitor Schematic
Figure 98. Power Supply Schematic
Figure 99. Reset Generator and Control Schematic
1
3
5
7
9
2
4
6
8
10
11
13
12
14
J5
MC_MIC_POWER
IOVDD
MC_LED_SCLK_SDATAIO2_MP18
MC_LED_SDATA_SDATAIO3_MP19
MC_XLAT
LRCLK_IN1
SDATA_IN1
BCLK_IN1
MC_TDM8_SDATAIO1_MP17
MC_LED_BLANK
15786-094
C4
0.10µF
C56
0.10µF
C57
0.10µF
C3
0.10µF
C97
0.10µF
C55
0.10µF
C58
0.10µF
C6
0.10µF
IOVDD
15786-095
DC IN
5V TO 6V
**7V DC MAX**
2
1
J16
3V3_A
5V0_UNREG
L3
3
IN
2
OUT
OUT
1
GND
4
U17
ADP3338-3.3V
GND1 GND2 GND3 GND4 GND5 GND6 GND7 GND8 GND9
3V3_A
5V00_UNREG
IOVDD
C131
100µF
+
C130
1.0µF
C129
1.0µF
C132
100µF
+
C100
10µF
+
C101
10µF
+
S1
4
VCC
3
MR
1
GND
2
RESET
U6
ADM811TARTZ
IOVDD
RESET
USB_RESET
SDP_RESET
THRESHOLD VOLTAGE:
3.08VDC
C59
0.10µF
R15
1k00
R32
1k00
R33
100k
15786-097
DRAFT
