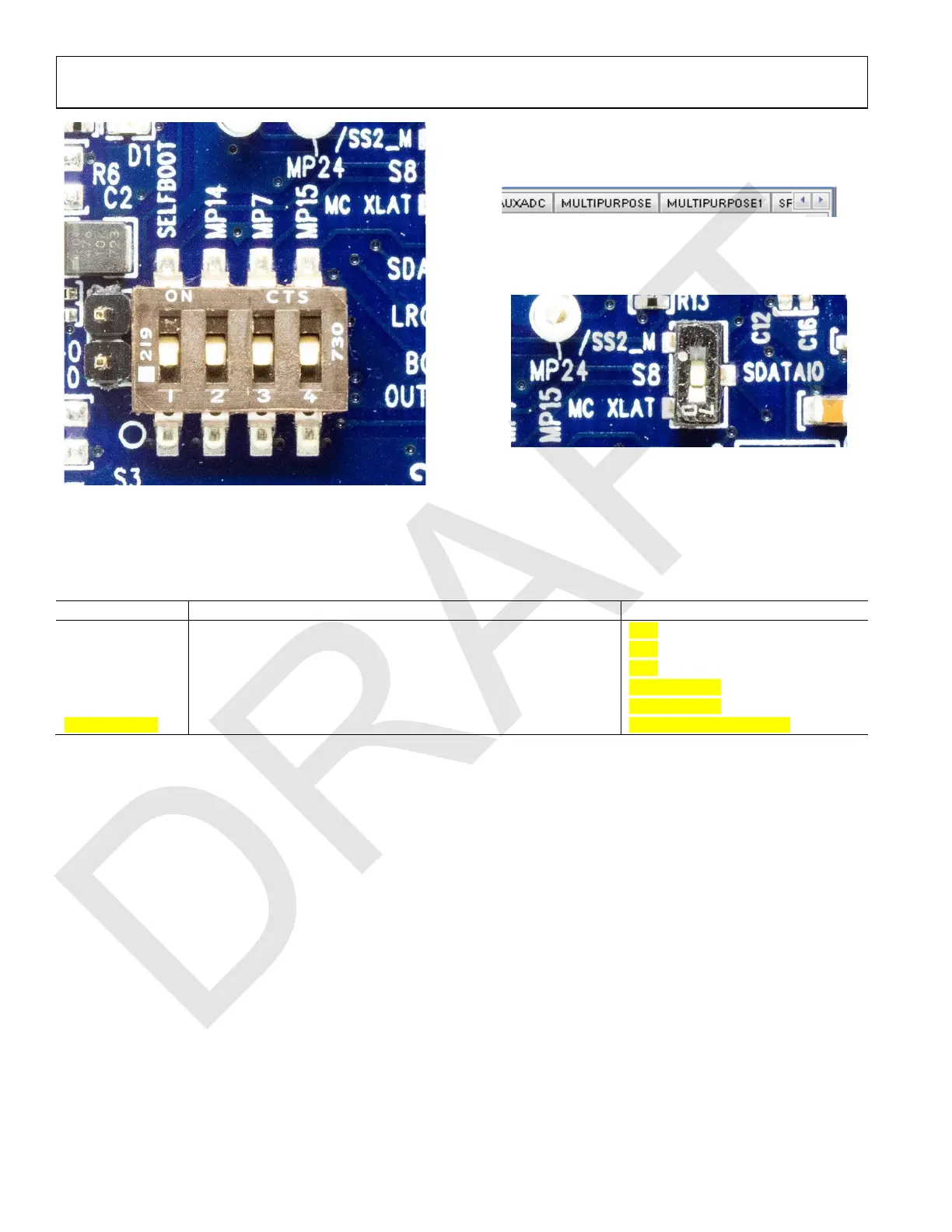

Figure 44. Self Boot Slide Switch, S3
To configure the operation of the multipurpose pins, navigate to
the MULTIPURPOSE tab in the Hardware Configuration tab
in SigmaStudio (see Figure 45).
Figure 45. Multipurpose Pin Configuration in SigmaStudio
Figure 46. Multipurpose Pin Function Selection Switch, S8
Table 3. Multipurpose Pins and Hardware Access Points
Multipurpose Pin Connection Access Point
LRCLK_OUT1/MP5 Input to inverter (LED D4) TP56
LRCLK_OUT3/MP9 Input to inverter (LED D3) TP48
LRCLK_IN1/MP11 Input to inverter (LED D5) TP29
LRCLK_IN2/MP12 Pin multiplexed with LRCLK_IN2 Header J3, Pin 4
LRCLK_IN3/MP13 Pin multiplexed with LRCLK_IN3 Header J2, Pin 4
SDATAIOx / MPx Mic Canvas Header J5, Pin X
Verify with schematics
STATUS LEDs
Six status LEDs provide information about the state of the EVA L -
ADAU1467Z evaluation board (see Figure 47). For additional
information pertaining to the status LEDs, see Table 6.
