EVAL-ADAU1467Z UG-1134
Rev. A (Draft) | Page 41 of 55

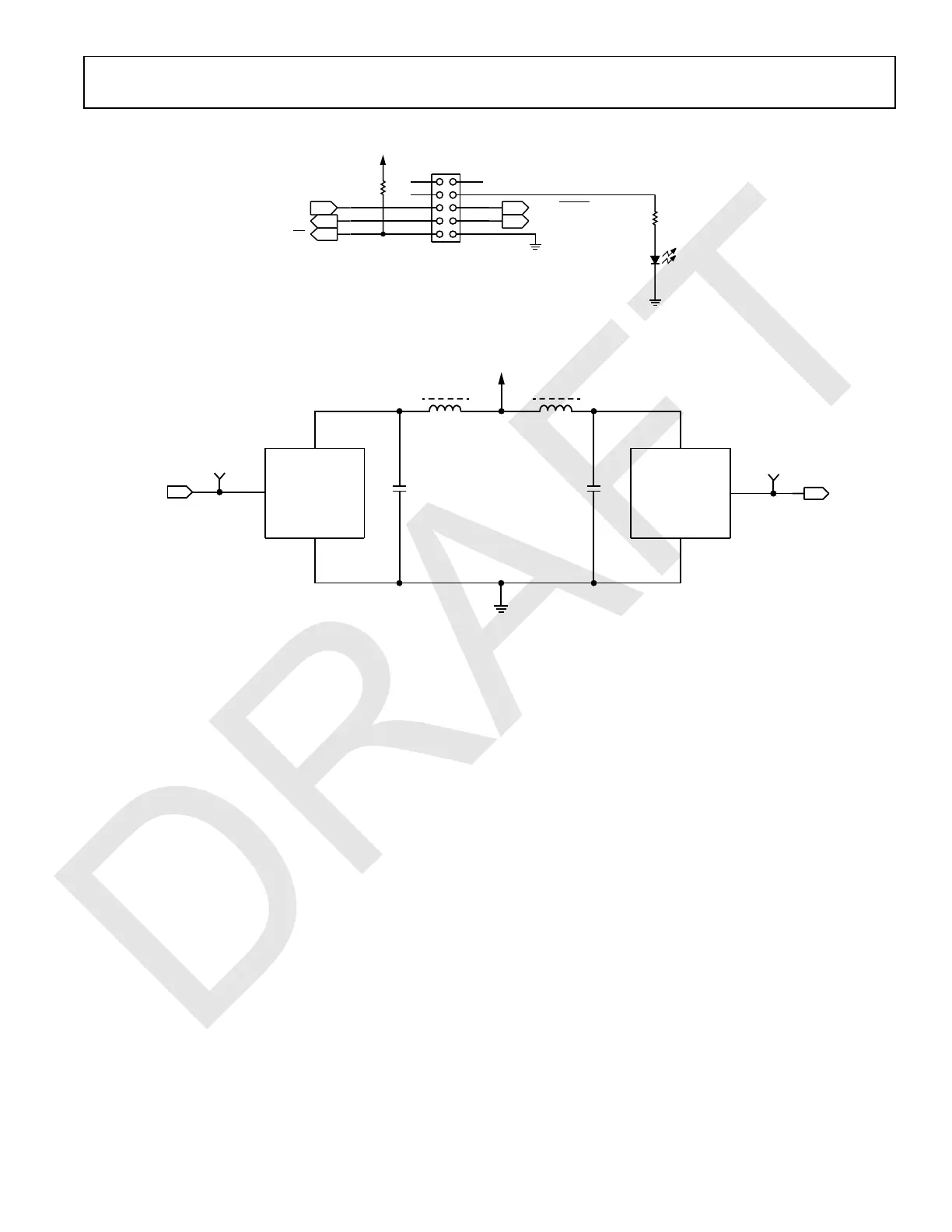

Figure 105. Slave Control Port Input Header (USBi) Schematic
Figure 106. TOSLINK Optical Input/Output Connector Schematic
USB 5 VOLTS
USB
CONNECTED
1
3
5
7
9
2
4
6
8
10
J1
HEADER_10WAY_POL
R31
1k00
D8
R68
10k0
USB_RESET
MISO
SCLK
SS
MOSI
IOVDD
15786-103
C98
0.10µF
C128
0.10µF
SPDIF_OUT
SPDIF_IN
1
VOUT
2
GND
3
VCC
J10
1
GND
2
VCC
3
VIN
J7
L1 L2
SPDIFOUT
IOVDD
SPDIFIN
