Analog way QuickMatriX QMX150 User Manual

19

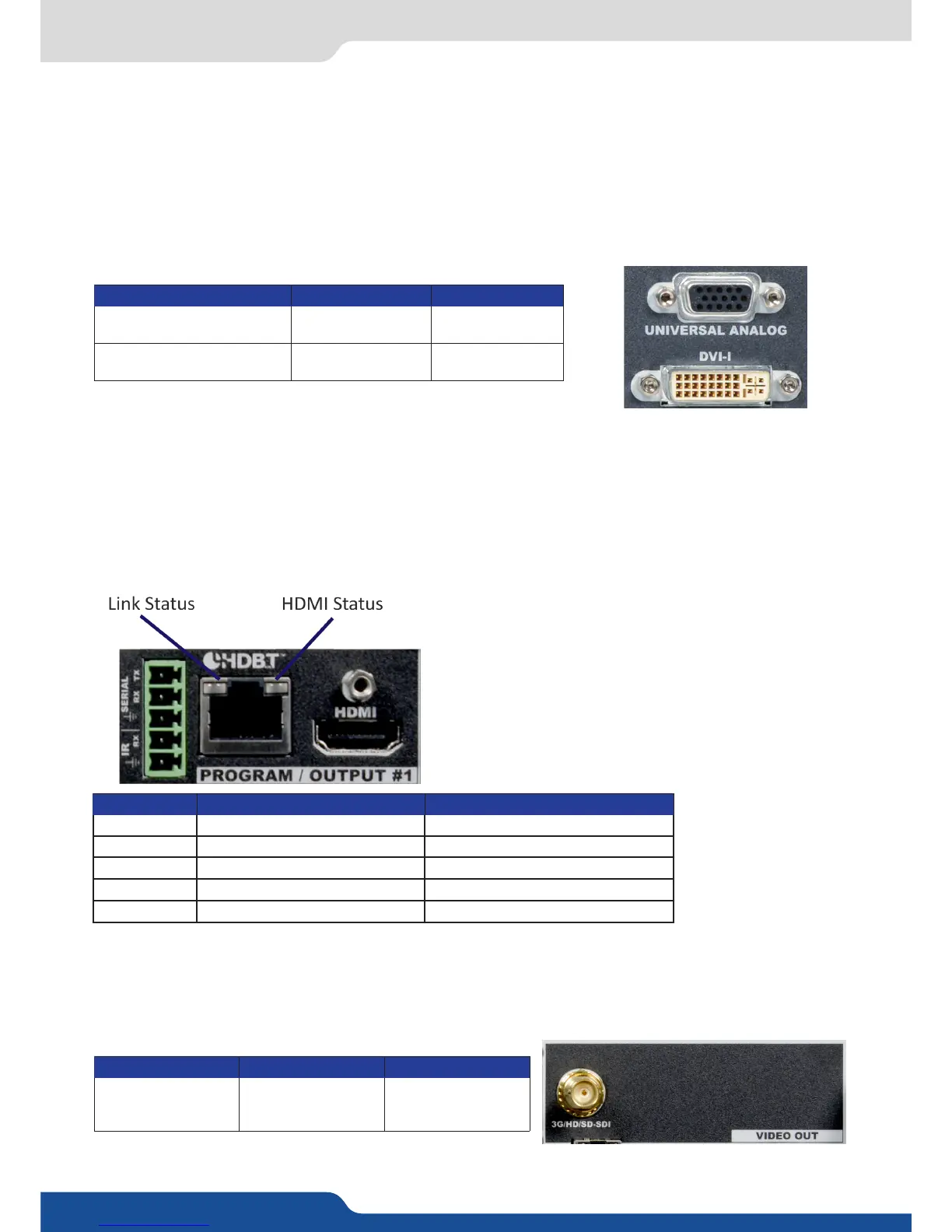

The has two standard outputs.
The standard output contains:
- Analog Computer/Video (HD15),
- HDMI output over a DVI-I connector or DVI-I output (DVI-Analog and DVI-Digital).
4.7 

VGA

4.7 Output specicaons
Please see the formats available on the output:
Please note that SDTV and EDTV are not available on the standard output but only on the video output module.
Output Type  Signal
Analog Computer/Video Ouput
HDTV
Computer
Analog HDTV
Analog Computer
DVI-I Output
HDTV
Computer
Digital HDTV
Digital Computer
The has two standard outputs.
The standard output contains:
- HDMI connector,
- HDBaseT connector.
The has one Video output:
- 3G/HD/SD-SDI (BNC)
Output Type  Signal
3G/HD/SD-SDI
SDTV
HDTV
Cinema
Digital SDTV
Digital HDTV
DCDM 2K

The IR and Serial connectors associated to the HDBaseT connector are described in secon 4.8.4.

Status  
LED o No Link No HDMI Video
Low Blink Ethernet Fallback Mode Not Applicable
Medium Blink Low Power Mode without Ethernet HDMI content without HDCP encrypon
Fast Blink Low Power Mode with Ethernet Not Applicable
LED on HDBaseT Link HDMI content with HDCP encrypon
