- 22 -

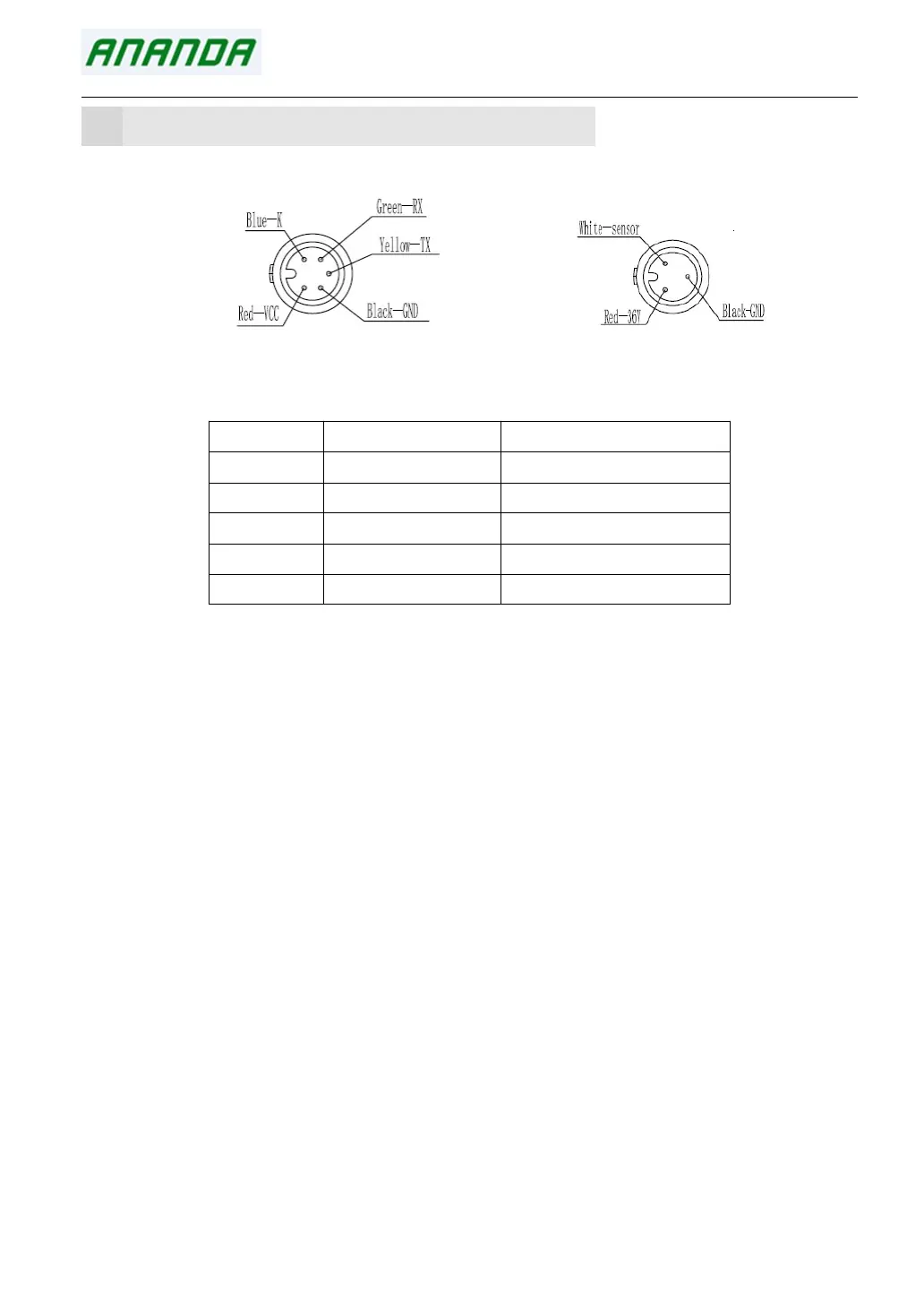

11. Circuit Diagram and wire sequence

Standard connector wire sequence:

Connecting end with controller Connecting end with buttons

Standard connector wire sequence table

Standard Wire Color of standard Wire Function

1 Red (VCC) Display power wire

2 Blue(K) Power control wire of controller

3 Black(GND) Instrument Ground wire

4 Green(RX) Data receiving wire of display

5 Yellow(TX) Data transmission wire of display

Note: waterproof connector is used for the lead wire of some products, so the user can't see the color

of the lead wire in the harness.
