USER MANUAL DENTAL UNIT - QS4-451-01 / SD 300 Scandinavian
12

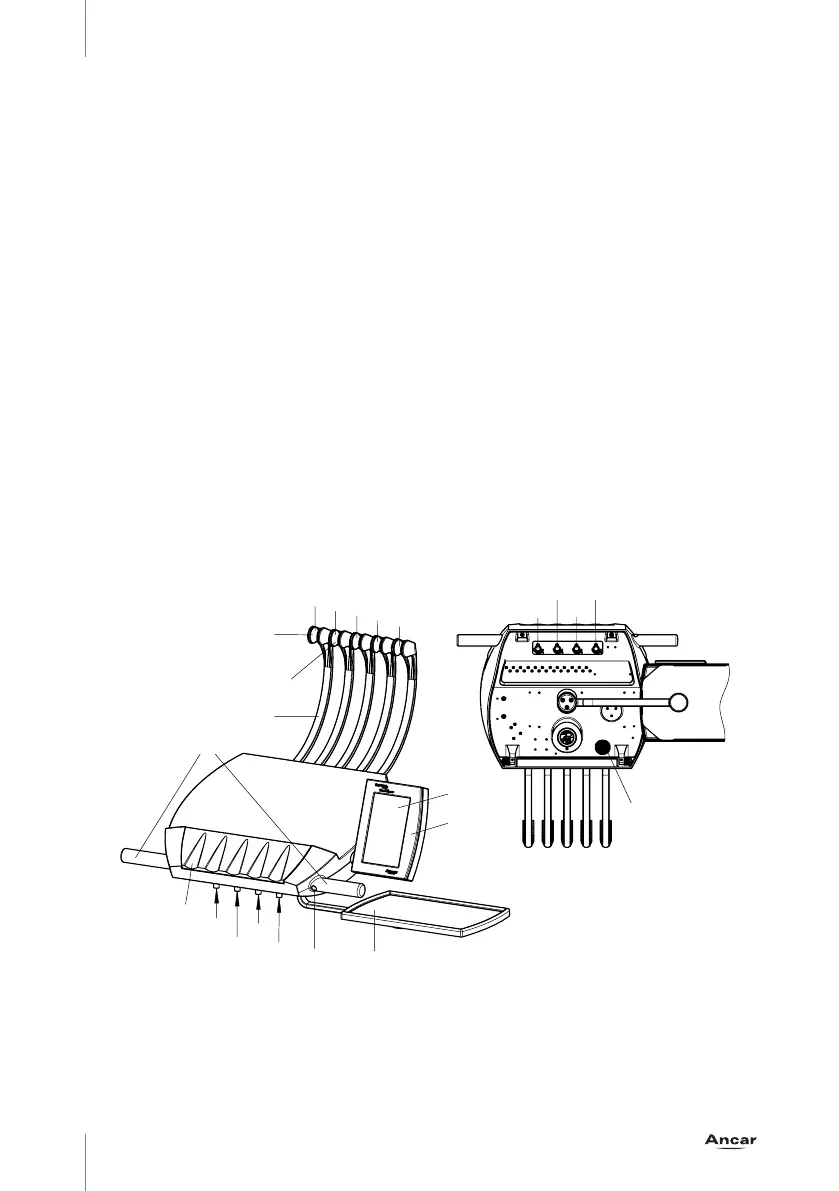

TOP OF TRAY:
A. Touch Expert control panel.
B. Touch display surface.
C. (Positions 1, 2, 3, 4, 5) Instrument poles (poles: 1, 2, 3, 4: installed upon request).
D. Silicon instrument pad which can be sterilised in the autoclave.
E. Water regulators (E1, E2, E3, E4).
F. Pneumatic brake release button for easy movement of the tray.
G. Instrument tray movement handle (at both sides).
H. Auxiliary instrument tray.
I. Position (5), by default 6F syringe is placed.
J. Position (4), by default ultrasound is placed.
LOWER PART OF TRAY:
E1, E2, E3, E4: Water controllers are located alongside each optional instrument (installed
upon request).
K. Instrument lubrication oil return tank. Check it (remove by turning anticlockwise) and replace
the cotton at least once per month.
(
(
(
(
)
*
+
$
%
&
-
,
'
(
(
(
(
.
Fig. 6
