8.8.- Headrest
Thanks to its articulated movement, this head support allows the patient’s head to be positioned
easily and ideally, according to the treatment required. It can be easily adjusted lengthways, as
shown in Fig. 12.
OPERATION
- The lengthways adjustment is easily connected. The piece is gripped firmly with the position
held internally.
- By turning piece “A” you can achieve the desired inclination. Once the headrest is set in the
optimal position, lock the mechanism by turning lever “A” anticlockwise.
The head support upholstery can be replaced simply by removing it from the base, allowing
comfortable maintenance.
8.9.- Optional armrest
The unit can be fitted with left and right armrests.
To turn the armrest, first release it by lifting it upwards. Then turn it and set it to the desired
position where it is locked in place. Repeat this action to leave it in the closed position. (Fig. 13)
A

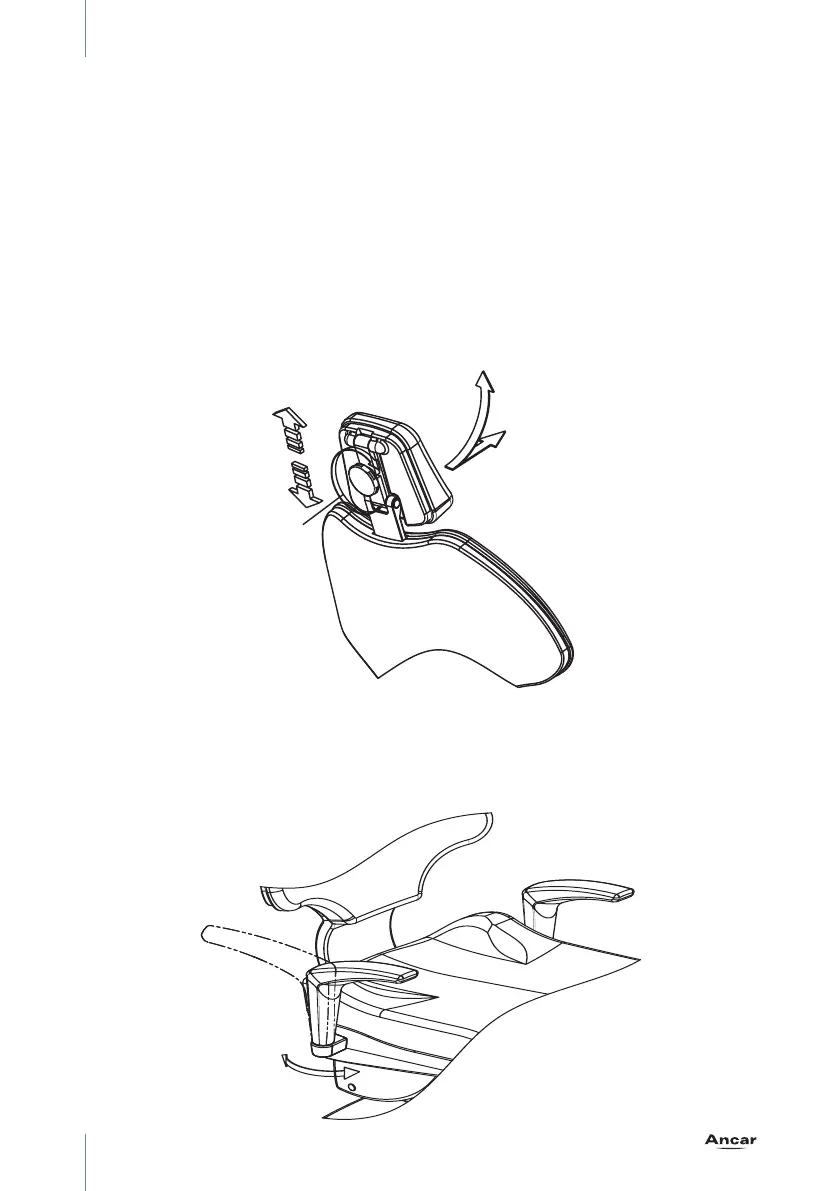

Fig. 12
Fig. 13
