Ancona gc430 - Damper and Hood Mounting

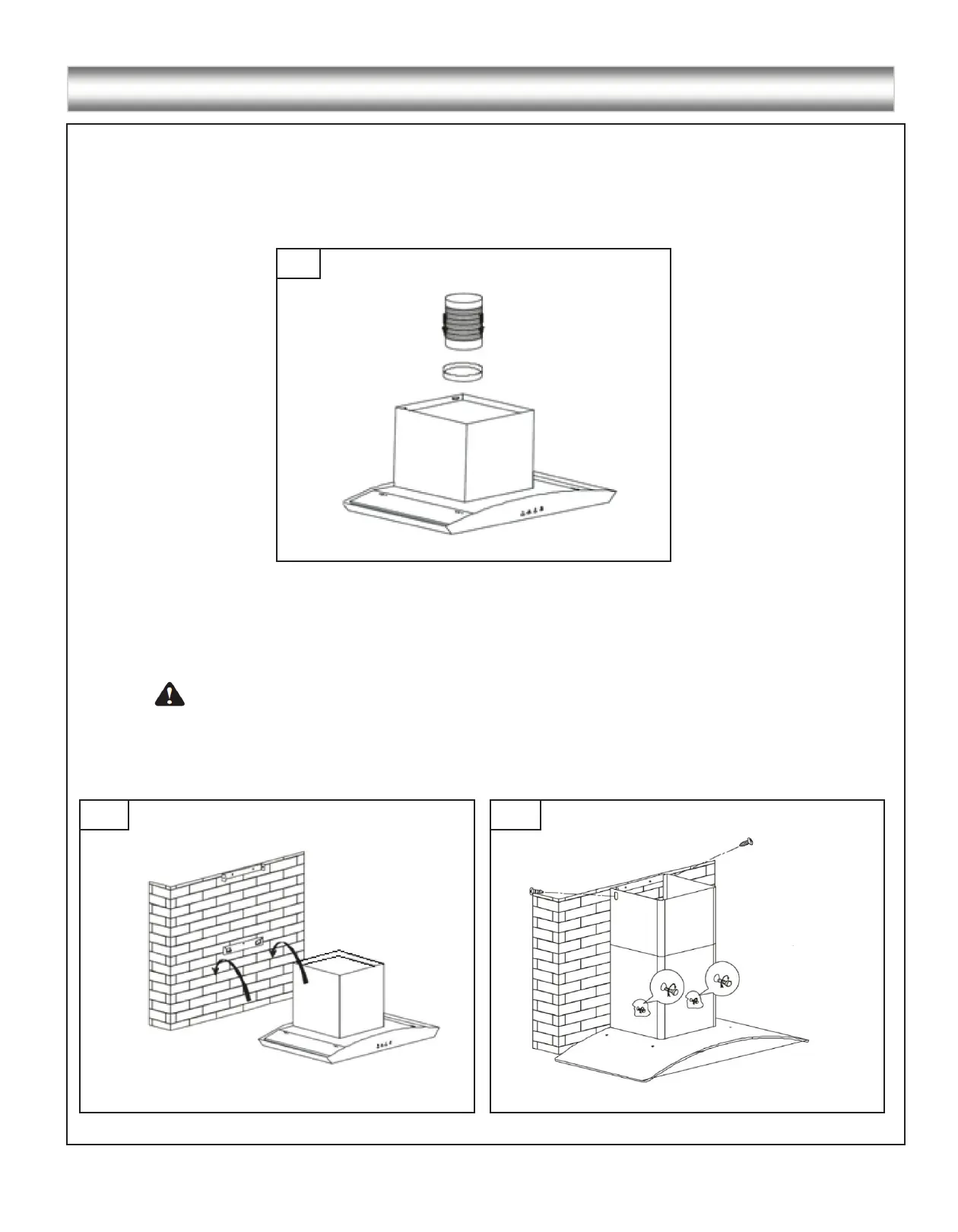

Step 5: Installing the damper
• Fix the damper on the top vent of hood with 4 screws (requires screw E).
• If ventilation system is equipped with an external air duct with a different diameter, apply a reduction fitting.
• However, for maximum performance and safety, a 6” round ducting is recommended. (See Figure # 3)
Step 6: Mounting the hood on the wall
• Hang the range hood on the hooks of the lower mounting bracket. (See Figure # 4)
• Screw the range hood to the wall . (See Figure # 5)
CAUTION - Make certain the range hood is secure before releasing!
INSTALLATION CONTINUE:
3
5
4
• Connect the duct to the damper / duct connector and seal with duct tape.
• Connect the range hood to a designated standard outlet (120-Volt, 60 Hz, AC only).
11
