Ancona gc430 - Chimney and Filter Installation

Step 8: Installing baffle filters
• To install filters for the following four steps (See Figure # 8):
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.
Step 9
: Test hood
• Turn power On in control panel.
• Check all lights and fan operations.
• Make sure to leave this Installation Manual for the homeowner.
INSTALLATION CONTINUE:

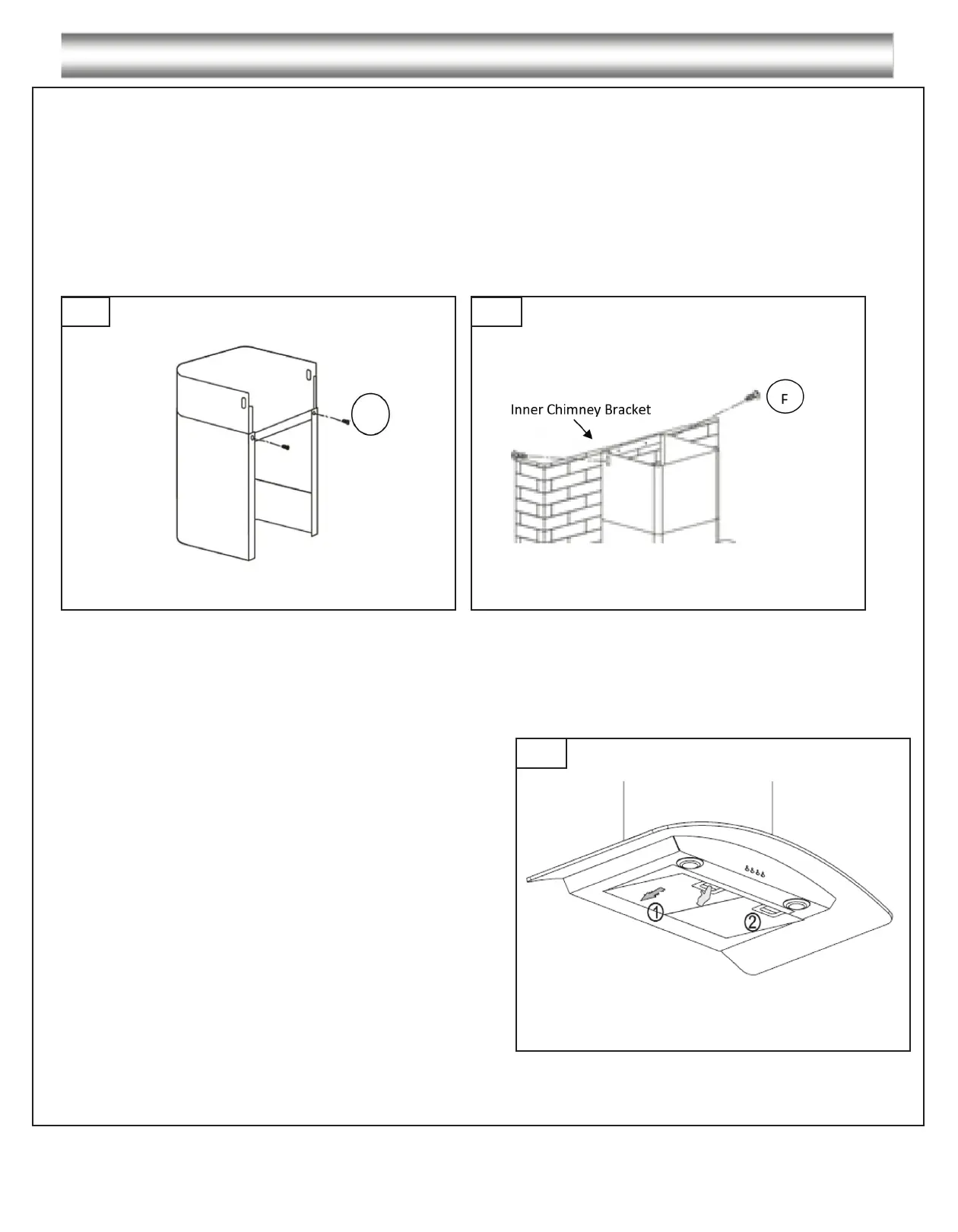

Step 7: Installing the decorative chimney and inner chimney bracket
• Remove the protective coating from the inner chimney. Carefully slide the inner chimney down into the
outer chimney.
• Use 2 screws (requires screw F) to fix the two chimneys together with the lower chimney bracket,
make sure inside chimney is moving freely. (See Figure # 6)
• Install the chimneys on the hood. Pull out the inner chimney and adjust height according to the position
of the inner chimney bracket on the wall.
• Fix the inner chimney on the bracket with two screws (requires screw F) (See Figure # 7)
7
F
6
8
12
