2.Introduction
Thank you for selecting the BundGuard Issue 5 bund dewatering system. This manual provides safety,
installation and operation information, please, read before installing or operating the unit and retain for
future reference.
The Andel BundGuard Issue 5 is a tried and tested fully automatic bund dewatering system, which
discriminates between oil and water. It continuously monitors the levels of rainwater and oil collecting
in the bund. When a pre-set water level is reached the pump is activated and the water removed from
the bund.

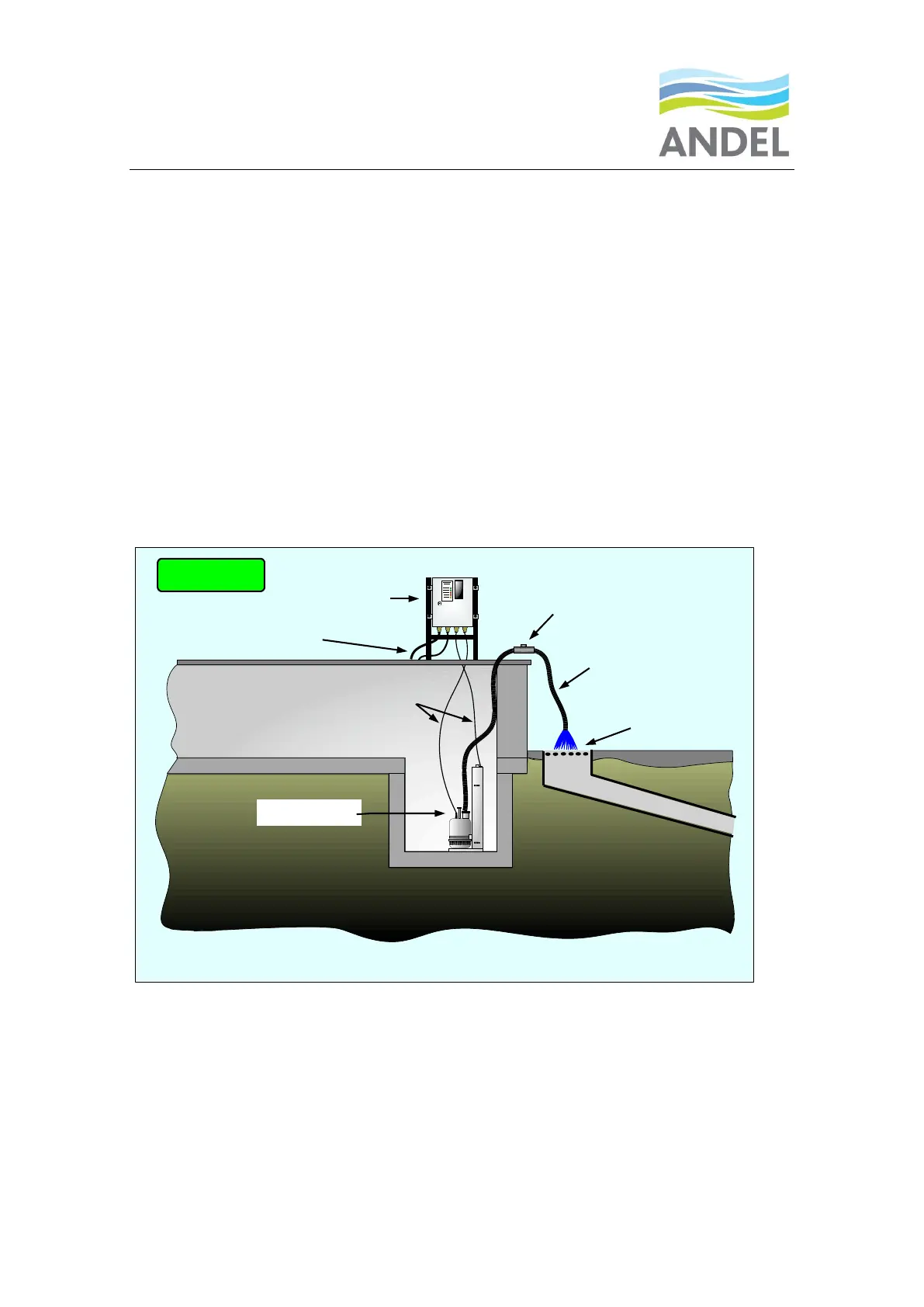

The system consists of a control panel, combined sensor and pump, hose and fixing key. The
pump/sensor unit is usually mounted in a sump within the bund to ensure the water level within the
bund is kept below the top of the sump. It is connected to the control panel, which controls the pump(s)
and also contains the warning indicators and alarm outputs. Warning indicators are provided for system
status, pump failure or malfunction and when oil leaks or spillages reach a maximum level. A typical
installation for a single pump configuration is shown in Figure 1.
© Copyright Ian Pogson Andel Ltd 2003/2004
All rights reserved. Duplication &/or transmission of whole or part expressly
forbidden without permission.
BundGuard ®
Anti-syphon device
Control Panel
(on bracket)
Drain
Pump/Sensor Unit
BUND
SUMP
Discharge Hose
5m cables
Power & Alarm
output cables
To Next Page
