2.3.2 Bundguard Issue 3A Sensor / Pumps Unit
The pump and sensor unit are a combined submersible IP68 unit manufactured entirely from stainless
steel. If a second pump is fitted this will be mounted separate to the sensor and pump combination.
Individual multi-core 10m cables are fitted for both:
-Pump power (230ac or 110V ac)
-Sensor probes

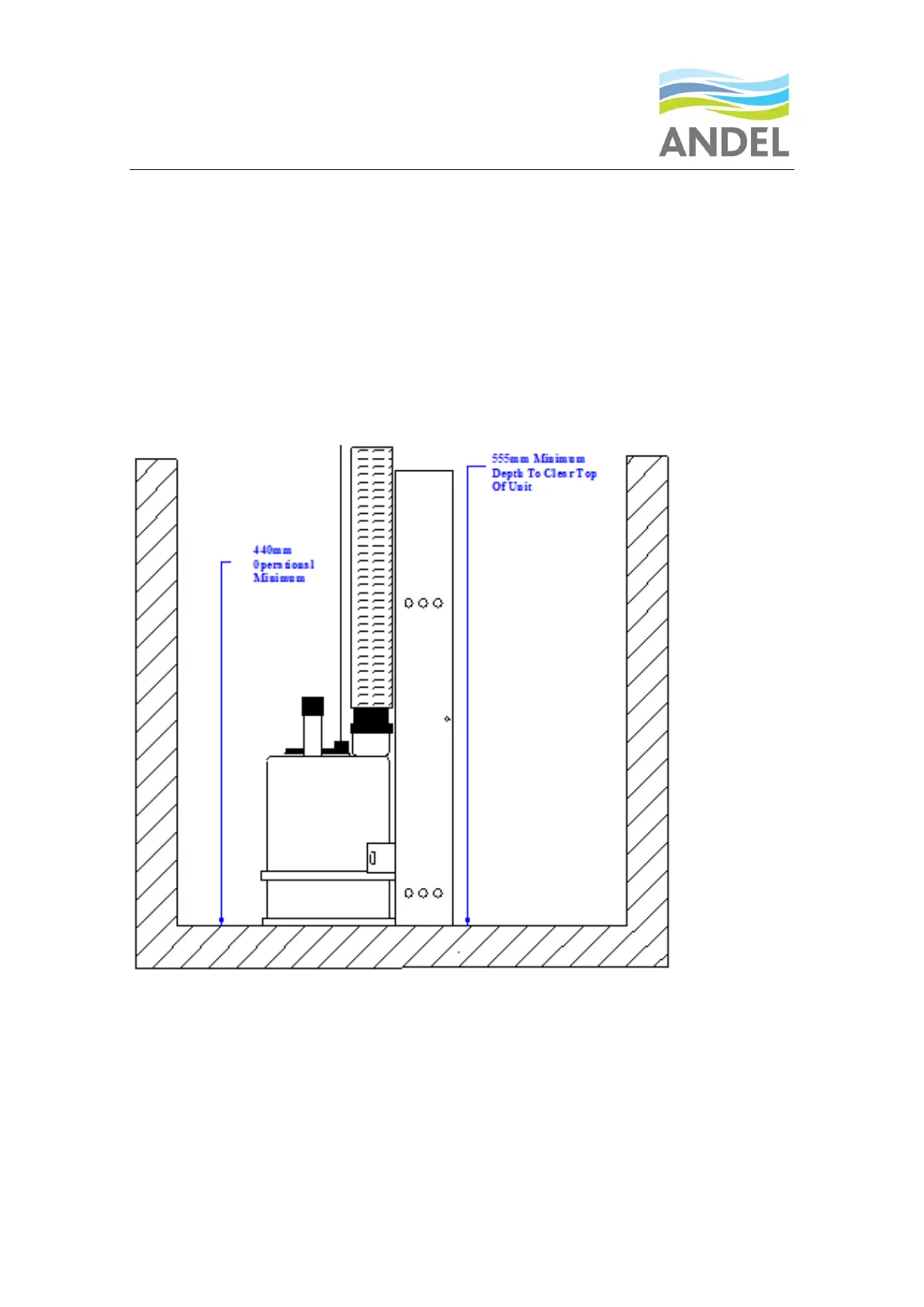

Figure 3 shows the operational dimensions of the BundGuard Issue 3A combined sensor /pump installed
into a 600mm x 600mm x 600mm sump (which is the minimum recommended size for the sump)
A 5m length of reinforced 25mm rubber discharge hose is provided with the system along with
necessary fixings.
Figure 3 BG Issue 3A Sensor Details.
