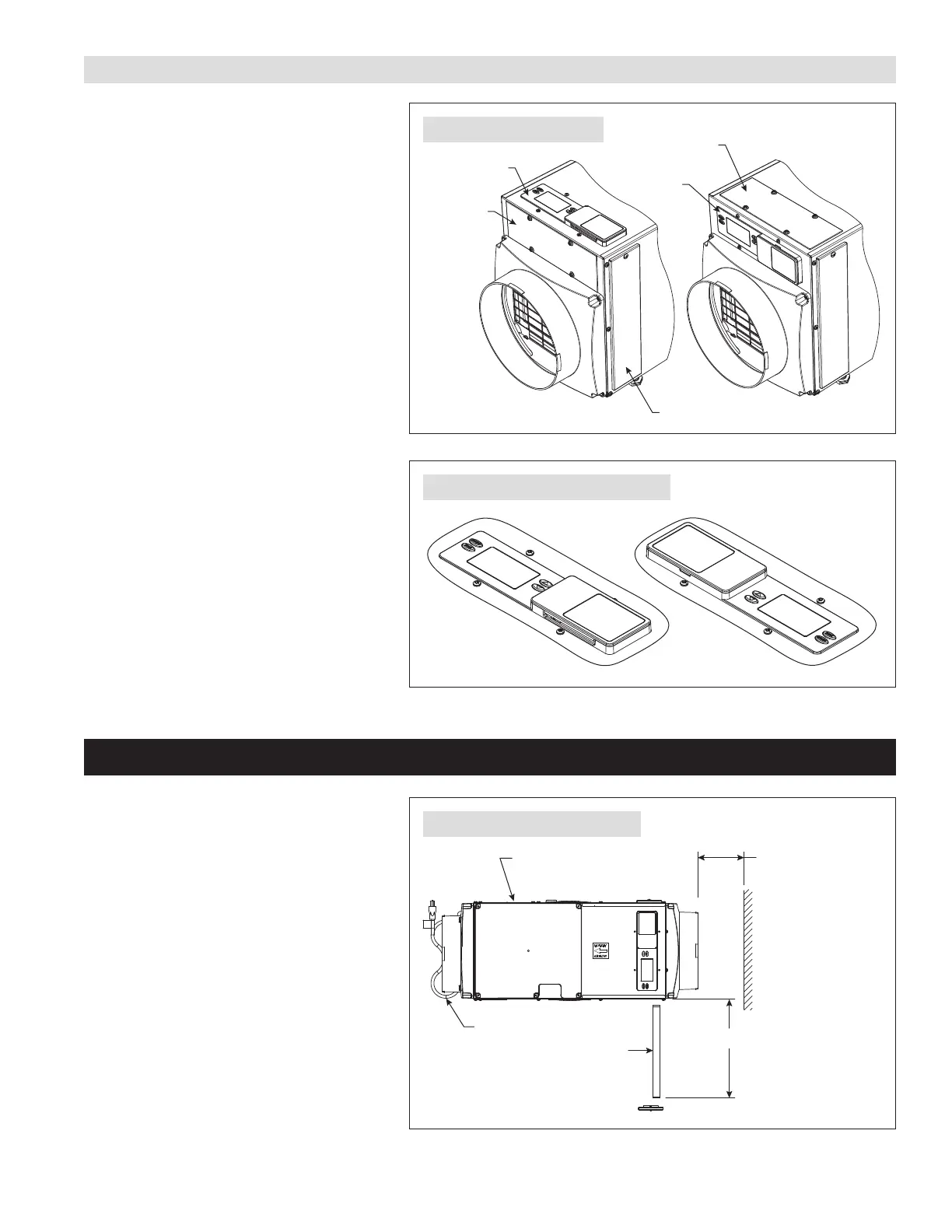

CONTROL LOCATION
The on-board control can be located on the top of the
dehumidifier or can be relocated to the front of the
dehumidifier if the control cannot be seen/accessed in
the top orientation. It may also be rotated 180 degrees
in either orientation as shown in FIGURE 6.
To move the control:
1. Remove the front control panel cover.
2. Remove the filter access door and filter.
3. Detach the on-board control by removing the four
(4) screws around the control. NOTE: Use one hand
to support the bottom of the on-board control
when removing.
4. Keep the control in the unit and relocate to the front
access hole.
5. Secure the control with the same four screws used
to attach the control to the top of the unit.
6. Secure the control panel cover to the top of the unit.
CONTROL
PANEL COVER
CONTROL
CONTROL
CONTROL
PANEL COVER
FILTER ACCESS DOOR
90-1884
FIGURE 5 – CONTROL LOCATION
90-2525
FIGURE 6 – CONTROL ROTATED 180 DEGREES
LOCATION CONSIDERATIONS
• Allow sufficient clearance for filter removal and to
prevent airflow obstruction
• Electrical service access will require the removal
of the side panel shown. Allow sufficient space for
service on this side of the unit.
• When suspending the unit, a condensate pan
with float switch is recommended to prevent any
leaks that may occur due to unforeseen drain line
obstructions.
TOP VIEW
FILTER
MINIMUM
CLEARANCE FOR FILTER
(BOTH SIDES)
15"
6" MINIMUM CLEARANCE
FOR PROPER AIR FLOW
ELECTRICAL SERVICE
ACCESS THIS SIDE
6 FT. POWER CORD
90-1840
FIGURE 6 – FILTER ACCESS CLEARANCE
5
